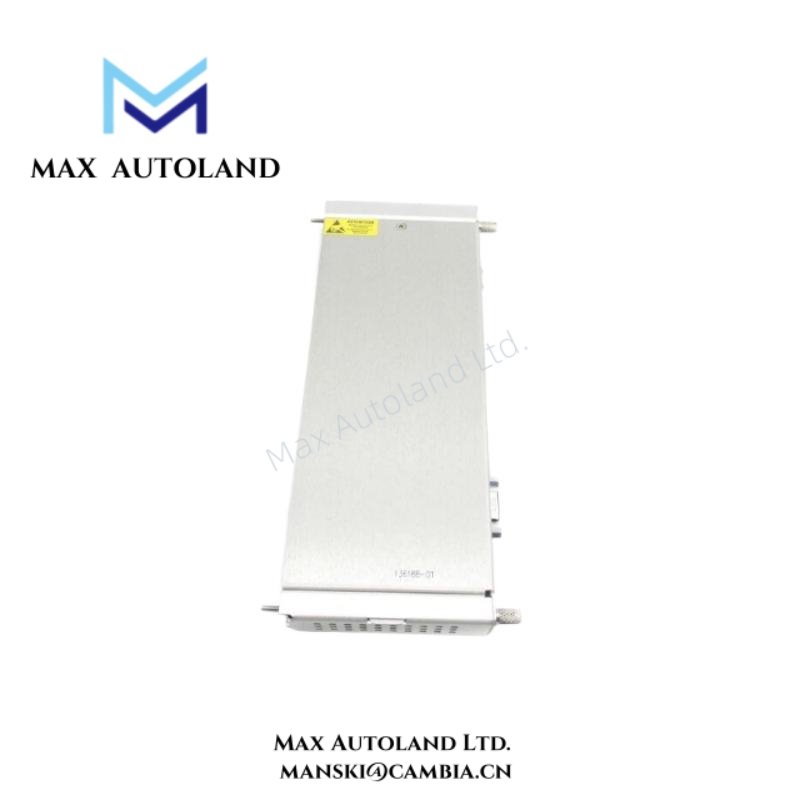

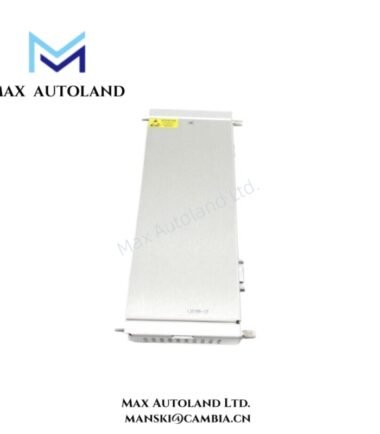

Overview
It supports Ethernet and RS232 connectivity, therefore extending system visibility across monitoring and control platforms.
Moreover, the module integrates cleanly within the 3500 architecture without compromising protection performance.
Specification
| Category | Specification |
|---|---|
| Model Number | 136188-01 |
| Manufacturer | Bently Nevada |
| Series | 3500 Machinery Protection System |
| Module Type | Ethernet/RS232 Modbus I/O Module |
| Associated System | 3500 Communication Gateway architecture |
| Form Factor | Single-slot Eurocard module |
| Rack Compatibility | Bently Nevada 3500 rack |
| Primary Function | Network and serial communication interface for 3500 data |

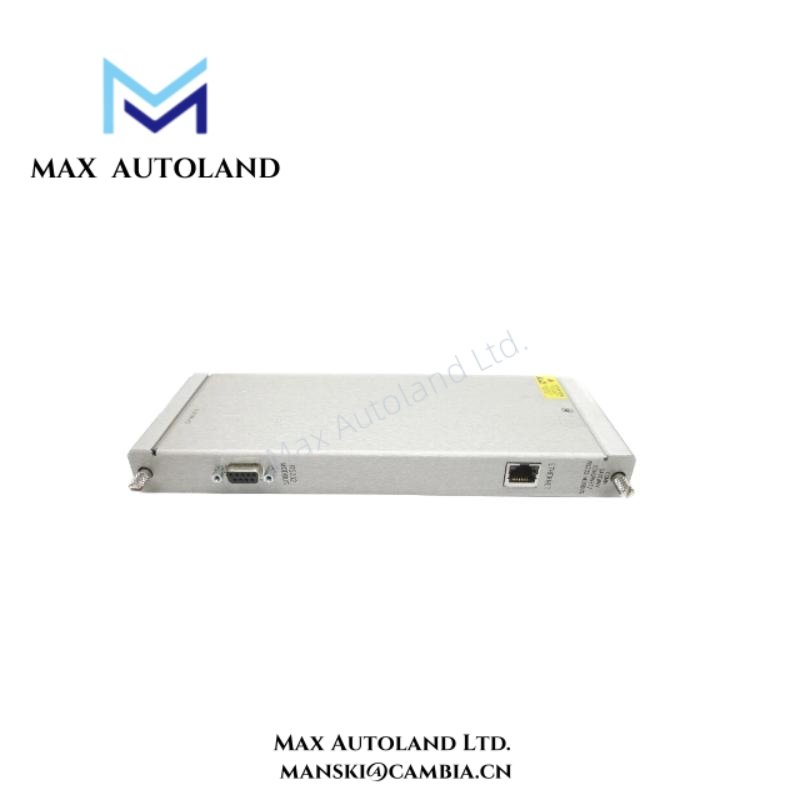

| Ethernet Interface | 10/100Base-T Ethernet |
| Serial Interface | RS232 |
| Supported Protocols | Modbus TCP and Modbus RTU |

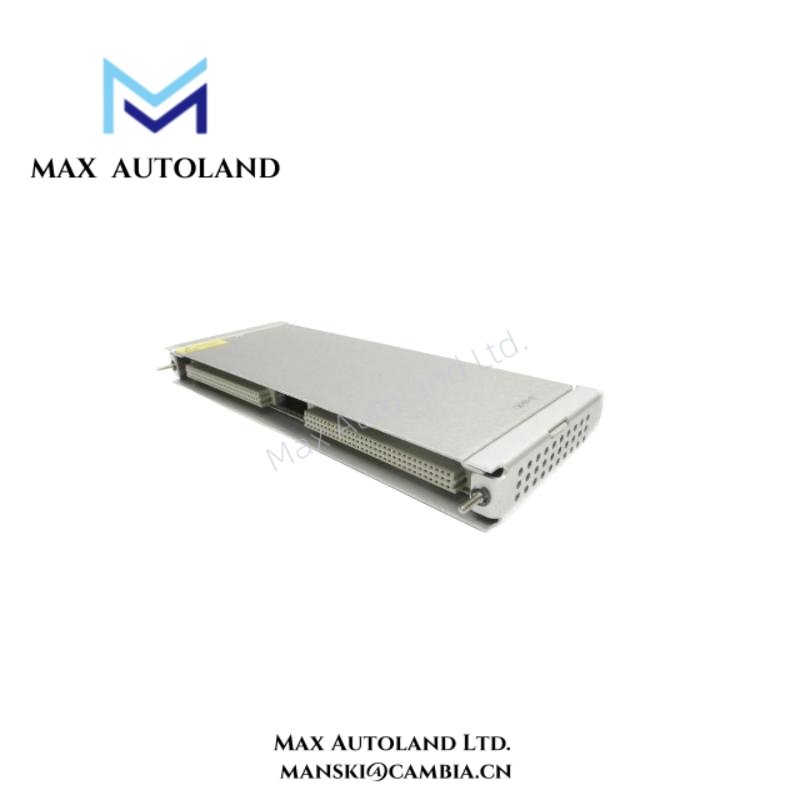

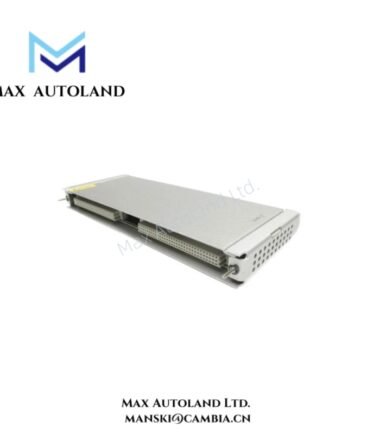

| Backplane Interface | High-density edge connector to 3500 backplane |
| Operating Voltage | Supplied internally by 3500 rack |
| Power Consumption | Low-power, rack-distributed supply |
| Energy Storage Components | None |
| Dimensions (H × W × D) | Approx. 241.3 × 24.4 × 99.1 mm |
| Weight | Approx. 0.34 kg |
| Cooling Method | Passive cooling via rack airflow |
| Operating Temperature Range | 0 °C to +65 °C |
| Storage Temperature Range | −40 °C to +85 °C |
| Relative Humidity | Up to 95 percent, non-condensing |
| Mounting Method | Slide-in rack mounting with retention mechanism |
FAQ
Yes, the 136188-01 is brand new, factory original, and fully genuine.Q2: Do you keep the 136188-01 in stock?
Yes, we keep the 136188-01 in stock to support urgent project requirements.
Q3: How fast can you ship after order confirmation?
We ship within three days to two weeks, depending on order size and preparation needs.
Q4: Which logistics carriers do you usually use?
We commonly ship the 136188-01 using DHL and other reliable international carriers.
Q5: What happens if a quality issue appears after delivery?
We support returns within 30 days if any verified quality issues occur.
