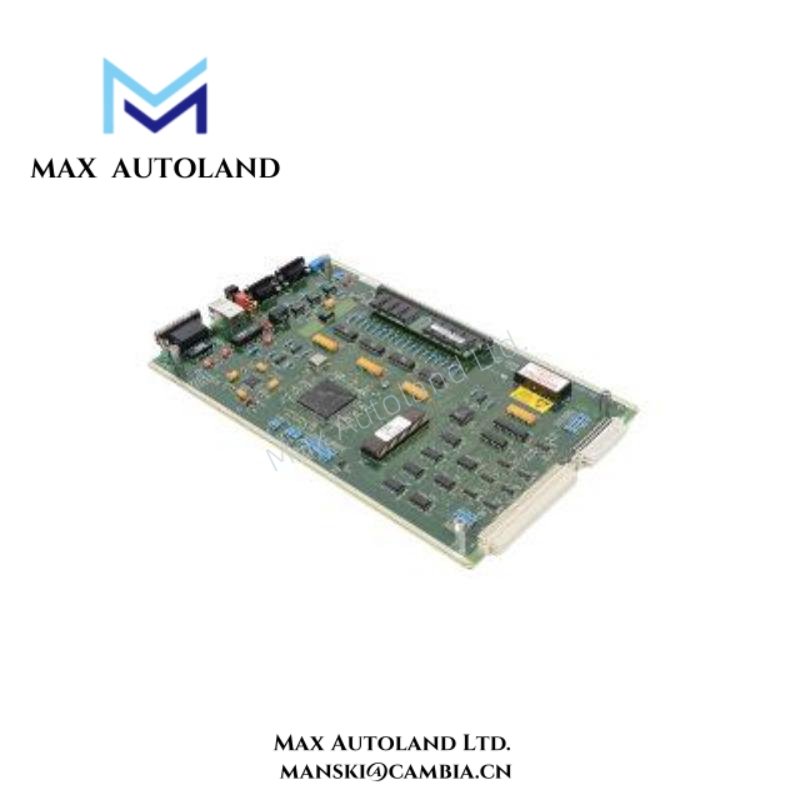

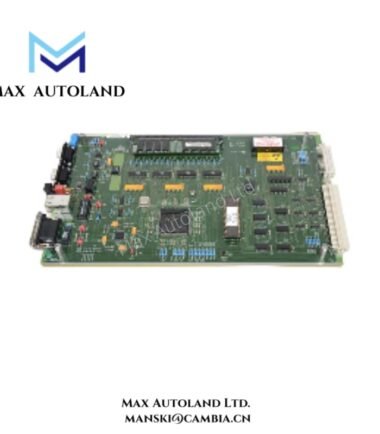

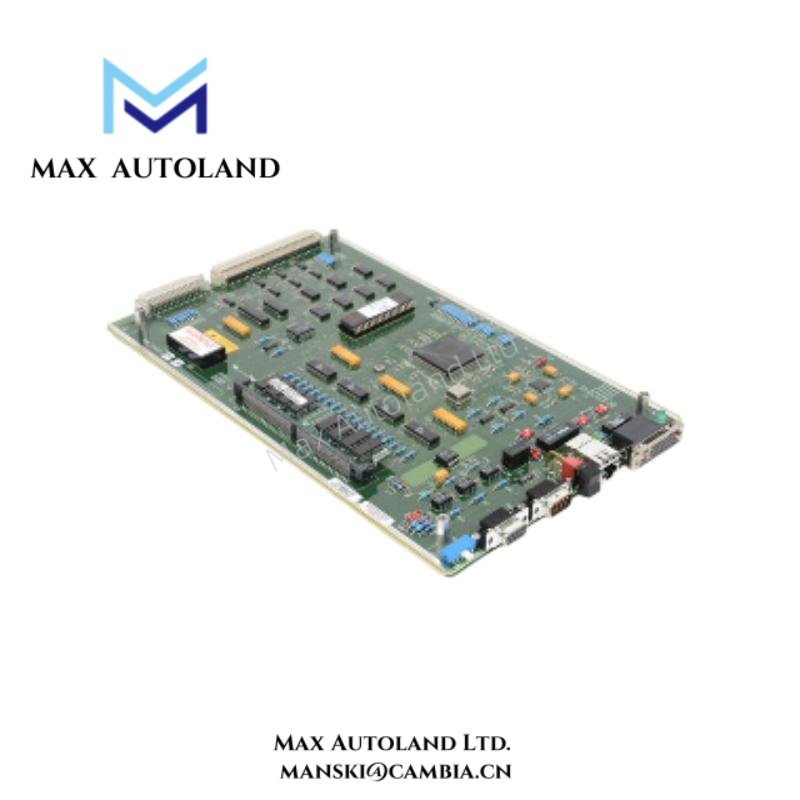

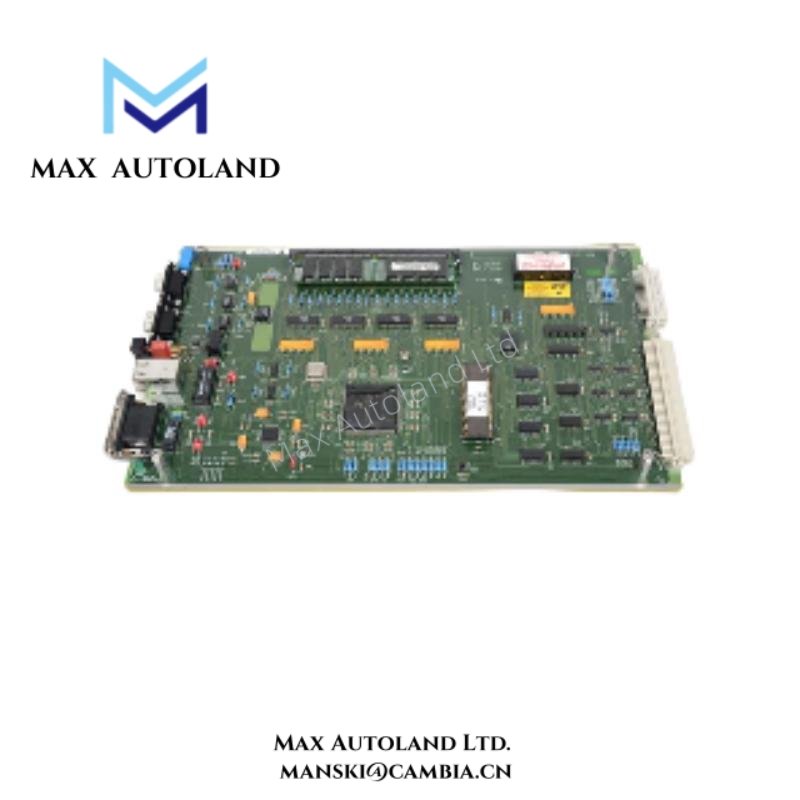

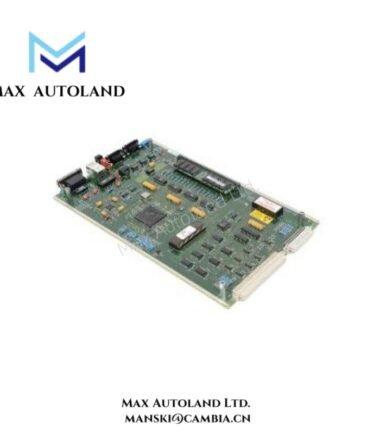

Overview
It coordinates data exchange across the 3500 Series rack while ensuring deterministic performance for critical protection systems.
Therefore, this processor board supports continuous monitoring, fast event processing, and stable system-level control operations.
Specification
| Category | Specification |
|---|---|
| Brand | Bently Nevada |
| Manufacturer | Baker Hughes |
| Product Model | 134652-01 |
| Series | 3500 Machinery Protection System |
| Module Type | TDXnet CPU Processor Board |
| Primary Function | Central processing and deterministic communication management for 3500 rack |
| System Role | Coordinates data exchange between monitoring modules and external systems |
| Installation Slot | Dedicated CPU slot in 3500 rack |
| Rack Compatibility | Bently Nevada 3500 standard rack only |
| Form Factor | Single-width plug-in circuit board |
| Mounting Method | Backplane insertion with captive screw retention |
| Height | Approx. 241 mm (9.5 in) |
| Width | Approx. 24 mm (0.94 in) |
| Depth | Approx. 242 mm (9.53 in) |
| Weight | Approx. 0.6 kg (1.3 lb) |
| Housing Construction | Industrial-grade printed circuit board with reinforced components |
| Processor Type | Embedded industrial CPU |
| Processing Capability | Real-time data handling and rack-level control |
| Memory Type | Non-volatile flash memory |
| Configuration Storage | Retains system configuration without battery backup |
| Energy Storage | Solid-state non-volatile memory only |
| Power Supply Source | Powered directly from 3500 rack power supply |
| Operating Voltage | Rack-regulated DC voltage |
| Power Consumption | Optimized low-power digital architecture |
| Communication Protocol | TDXnet deterministic communication bus |
| Network Speed | High-speed rack-level data exchange |
| Backplane Interface | Proprietary multi-pin connector |
| Supported Data Types | Alarm status, system diagnostics, configuration data |
| Supported Modules | All compatible 3500 vibration, speed, position, and process modules |
| Operating Temperature | 0 °C to +65 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | Up to 95% non-condensing |
| Vibration Resistance | Designed for continuous rotating machinery environments |
| Operating Environment | Industrial machinery protection and control cabinets |
| Duty Cycle | Continuous 24/7 operation |
| Maintenance Requirement | None during normal operation |
| Expected Service Life | Long-term industrial deployment |
FAQ
Yes, this unit is 100% brand new, original factory-sealed Bently Nevada hardware.
Q2: Do you keep this model in stock?
Yes, we maintain ready stock for the 134652-01 CPU Processor Board.
Q3: How fast do you ship after ordering?
We ship within 3 days to 2 weeks, depending on order quantity and verification requirements.
Q4: Which logistics services do you usually use?
We commonly ship via DHL, ensuring fast and reliable international delivery.
Q5: What is your return policy if quality issues occur?
We support 30-day returns if any verified quality problem appears.
