Overview
Specification
| Parameter | Specification |
|---|---|

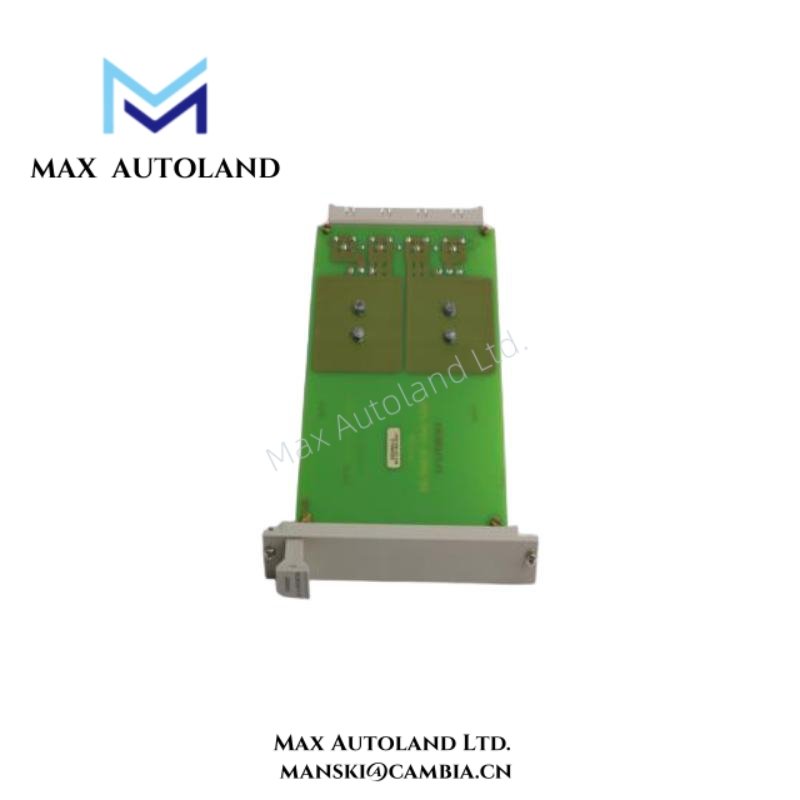

| Model | 10303/1/1 Power Supply Module |
| Module Type | Power Supply Module for FSC Series |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Output Voltage | 24 V DC nominal, 20–30 V DC operational range |
| Output Current | 5 A continuous |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Ripple & Noise | <100 mV pp |
| Efficiency | >85% |
| Mounting | FSC vertical/horizontal rack slot |
| Protection | Overload, short-circuit, and thermal protection |
| Diagnostics | LED indicators for power and fault status |
| Approvals & Safety | CE, FM approved |
| Dimensions (Approx.) | 120 × 100 × 50 mm |
| Weight | ~0.5 kg |
FAQ
Q1: What is the primary function of the 10303/1/1 module?
A1: It provides stable DC power to FSC Series modules, ensuring continuous system operation.
Q2: What is the output voltage and current?
A2: The module outputs 24 V DC nominal at 5 A continuous.
Q3: Can it operate in industrial environments?
A3: Yes, it functions reliably between -20°C and +60°C.
Q4: What protections does the module include?
A4: It has overload, short-circuit, and thermal protection to prevent damage.
Q5: How does the module indicate faults?
A5: LED indicators display power status and fault conditions for quick diagnostics.
Q6: Is it compatible with vertical and horizontal FSC racks?
A6: Yes, the module mounts in both vertical and horizontal FSC rack slots.
