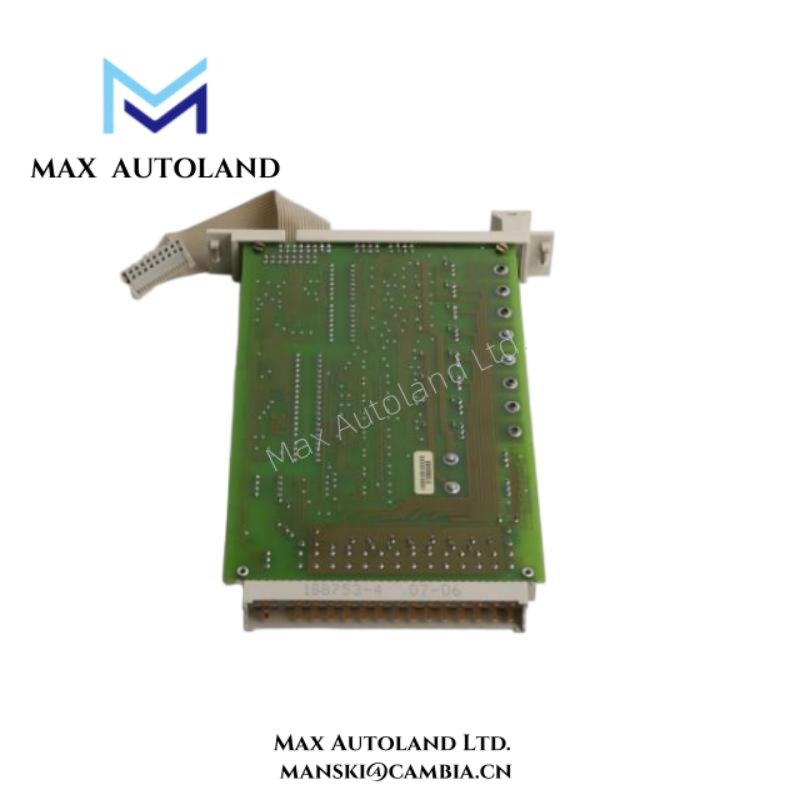

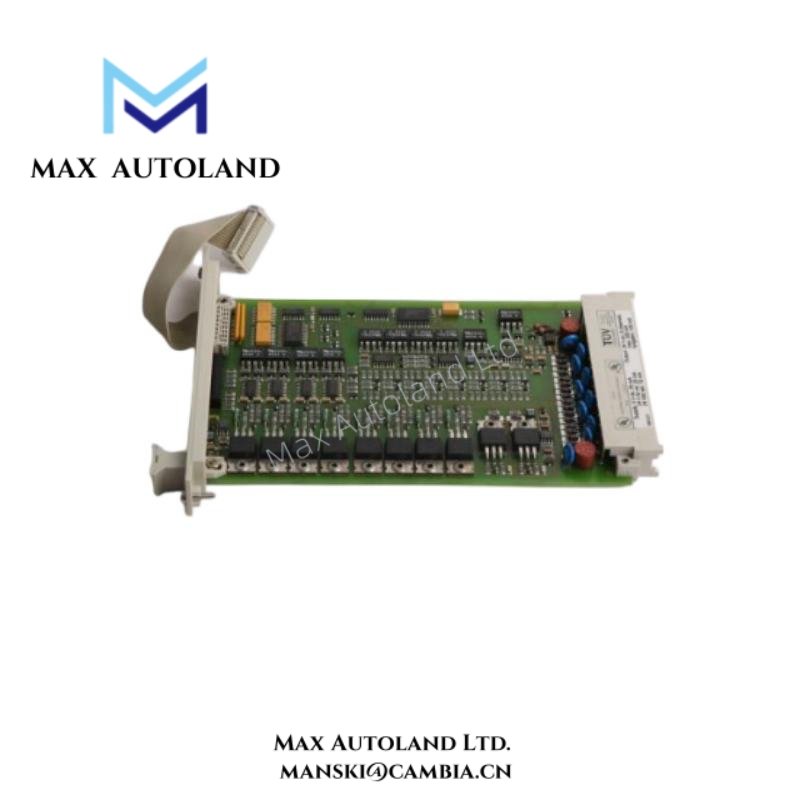

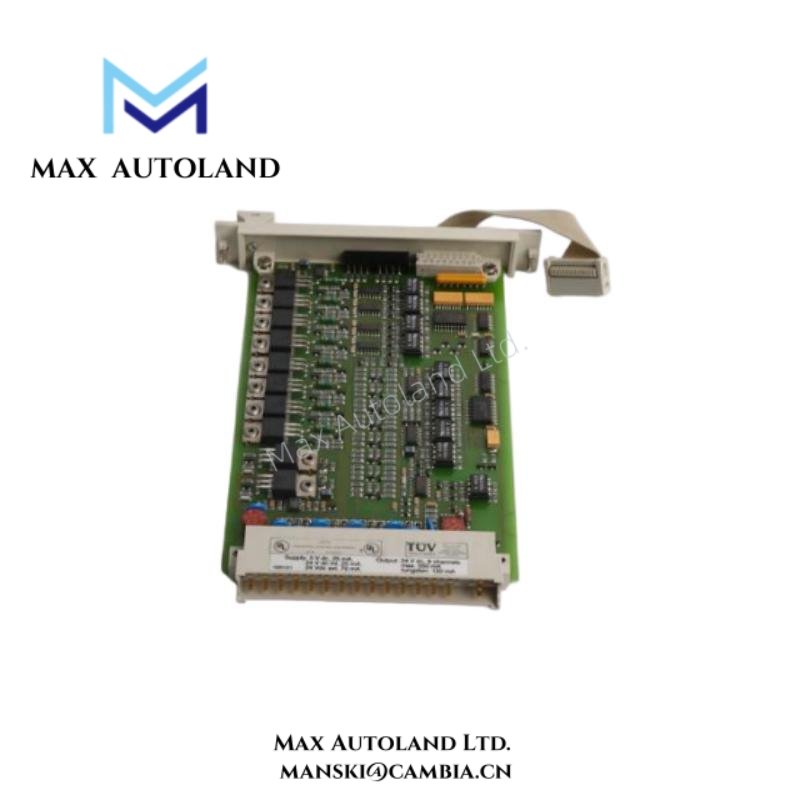

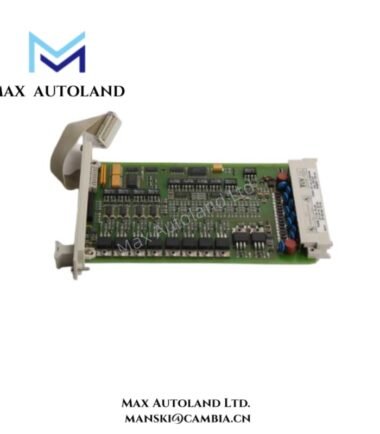

Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 10201/2/1 |
| Spare Model | FC-SDO-0824 11502 |
| Brand | Honeywell |
| Product Type | Digital Output Module |
| System | FSC (Fail Safe Controller) |
| Origin | USA |
| Weight | 0.15 kg |
| Dimensions | 2 x 19 x 12.9 cm (estimated shipping size) |
| Number of Output Channels | 8 |
| Output Specification | 24 VDC solid-state source |
| Maximum Output Current | 550 mA |
| Maximum Lamp Load | 120 mA (2.9 W) |
| Maximum Load Capacitance | 1 uF |
| Space Requirements | 4 TE, 3 HE (4 HP, 3U) |
| Software Version | 3.00 or later |
| Approvals | CE, TÜV, UL |
| Tariff Code | 8537101190 |
Digital Output Channel Characteristics
The 10201/2/1 uses solid-state source outputs to switch 24 VDC signals to connected field loads. Its eight channels support discrete output control within the FSC architecture.
Each channel’s load must remain within the specified current and capacitance limits. In addition, lamp loads must comply with the stated 120 mA and 2.9 W limits. These ratings describe different load constraints and should be checked against the connected device’s electrical characteristics before commissioning.
Frequently Asked Questions (FAQ)
Q: How many output channels does the Honeywell 10201/2/1 provide?
A: The module provides eight digital output channels with 24 VDC solid-state source outputs.
Q: What are the maximum output current and load capacitance?
A: The specified maximum output current is 550 mA, and the maximum load capacitance is 1 uF. The maximum lamp load is separately specified as 120 mA (2.9 W).
Q: Which software version is specified for this module?
A: The supplied specifications state software version 3.00 or later. Confirm compatibility with the installed FSC system configuration before replacement or commissioning.
Field Installation Guidelines
- Verify the module model and spare-part designation against the FSC hardware configuration before installation.
- Isolate the relevant power sources and follow the system’s approved safety procedures before removing or inserting hardware.
- Check field wiring polarity and confirm that connected loads match the 24 VDC solid-state source output specification.
- Keep each channel within the specified current, lamp-load, and capacitance limits.
- Route field signal wiring separately from high-voltage and high-noise conductors where practical.
- Apply the grounding and shielding methods specified in the Honeywell FSC installation documentation.
- Confirm the installed software version and perform the required output-channel checks before returning the system to service.
