Overview

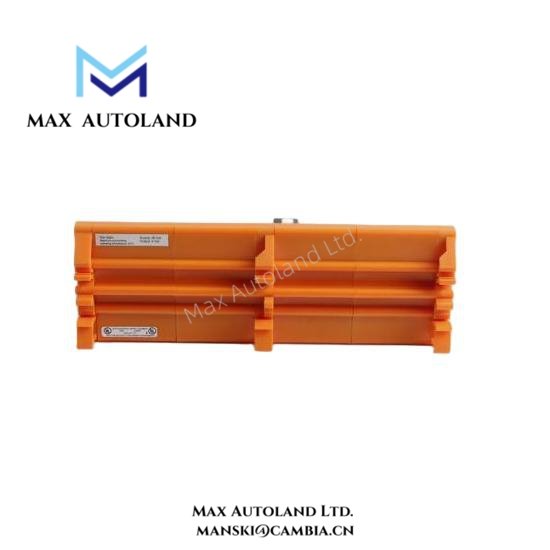

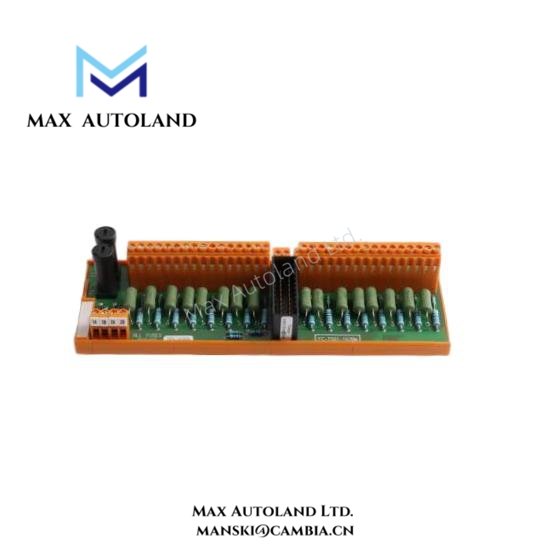

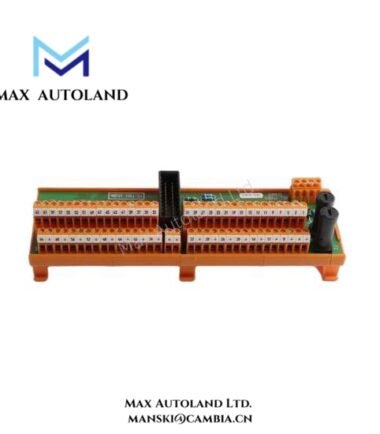

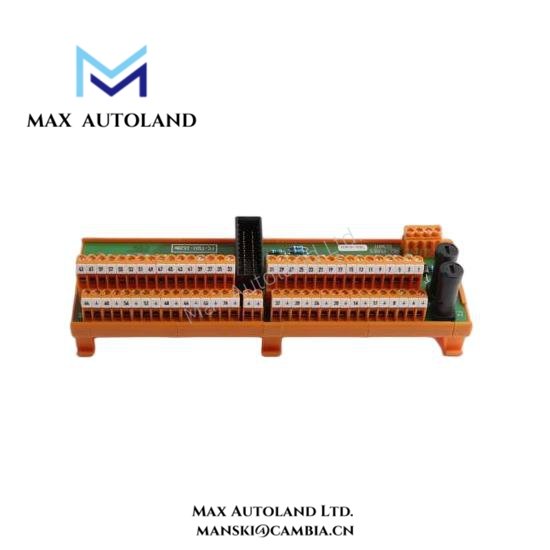

The TSAI-1620M Honeywell FSC Series Analog Input FTA provides stable and accurate signal termination for safety-critical analog inputs. It supports sixteen channels and ensures reliable field signal conditioning within Honeywell Safety Manager systems. Moreover, this FTA simplifies wiring while preserving signal integrity across demanding industrial environments.
Specification
| Parameter | Specification |
|---|---|
| Model | TSAI-1620M |
| Alternative Model Number | FC-TSAI-1620M |
| Manufacturer | Honeywell |
| Series | FSC (Fail Safe Controller) Series |
| Module Type | Analog Input Field Termination Assembly (FTA) |
| Number of Channels | 16 analog input channels |
| Supported Signal Types | 4–20 mA analog input signals |
| Field Wiring Interface | Screw terminal blocks |
| Maximum Wire Size | 2.5 mm² (AWG 14) |
| Wire Strip Length | 7 mm |
| Terminal Tightening Torque | 0.5 Nm |
| Field Loop Power | Supplied via associated AI module |
| Isolation | Channel-to-system isolation via safety I/O architecture |
| Mounting Type | DIN rail mounting (TS35) |
| Dimensions (L × W × H) | Approx. 170 × 70 × 60 mm |
| Weight | Approx. 0.25 kg |
| Operating Temperature | –5 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Typical Application Class | Safety Instrumented Systems (SIS) |
| Compliance | Designed for use in SIL-rated Honeywell safety systems |
FAQ
Q1: Is the TSAI-1620M module brand new and original?
A1: Yes, the TSAI-1620M is brand-new, original Honeywell FSC Series hardware, factory sealed.
Q2: How many analog input channels does this FTA support?
A2: The TSAI-1620M supports 16 analog input channels for 4–20 mA field signals.
Q3: What systems is the TSAI-1620M compatible with?
A3: It integrates directly with Honeywell FSC Series Safety Manager analog input modules.
Q4: What are the typical shipping and delivery times?
A4: We keep stock available and ship within 3 days to 2 weeks, depending on order quantity.
Q5: Which logistics carriers do you use?
A5: We commonly ship via DHL, FedEx, UPS, and other international express services.
Q6: What if there is a quality issue after delivery?
A6: We support a 30-day return policy for verified quality or functional issues.
