Overview

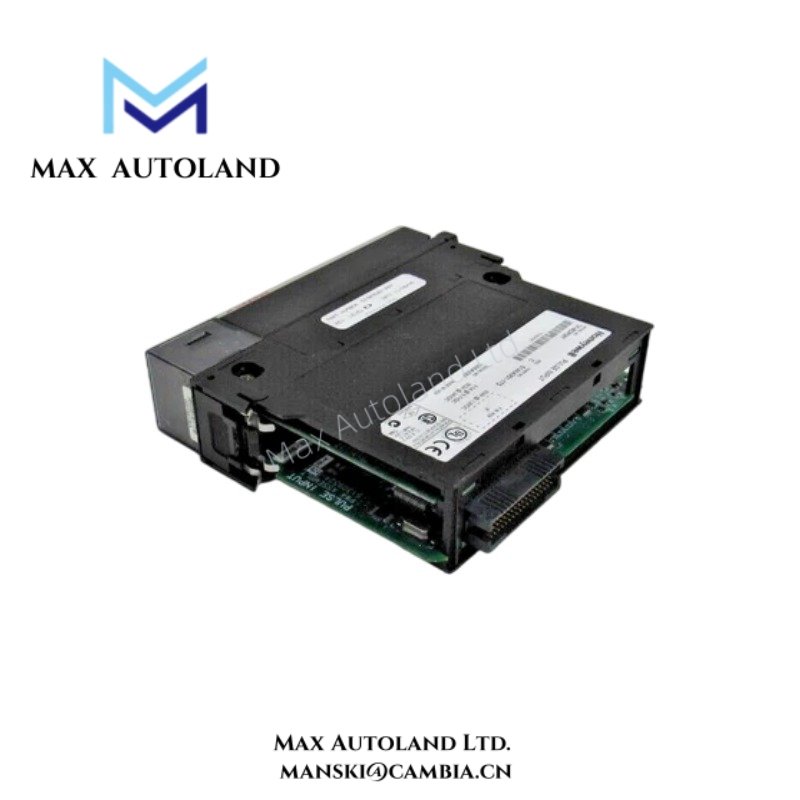

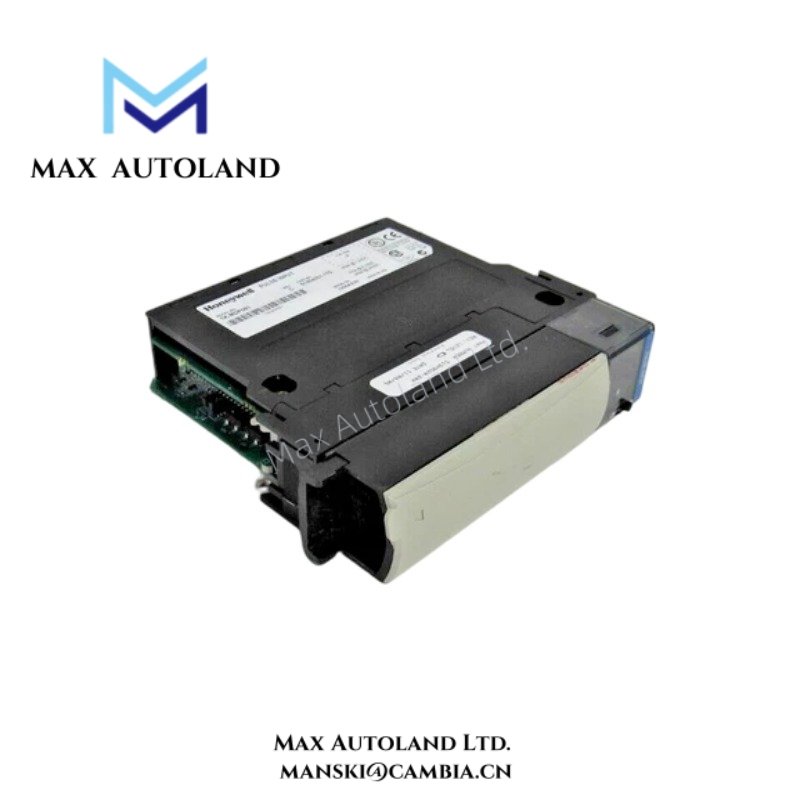

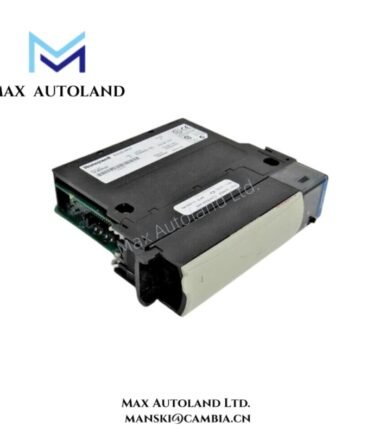

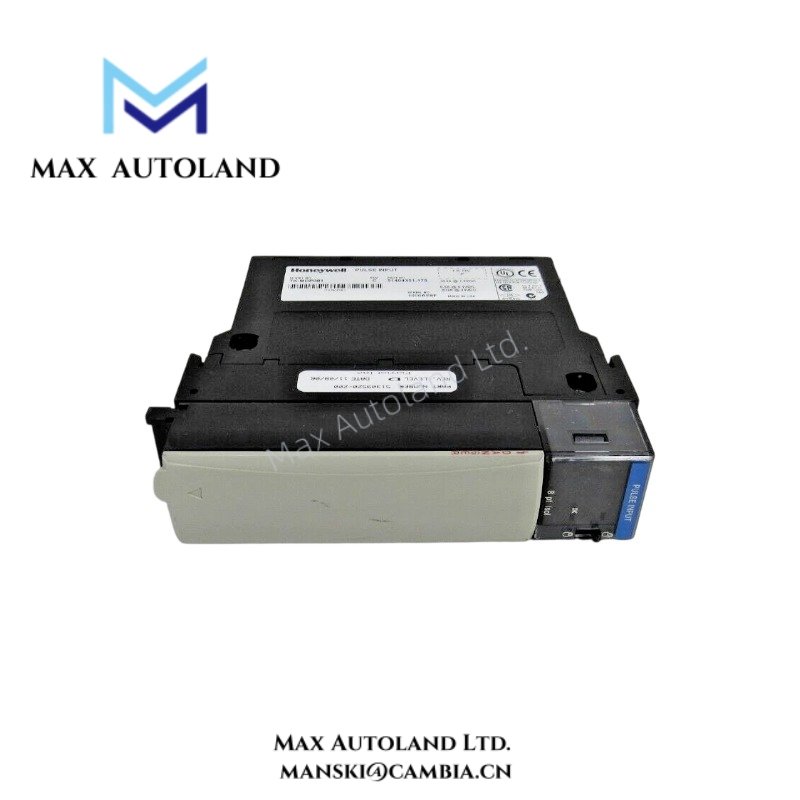

The TK-MDP081 pulse input module delivers accurate pulse signal acquisition for industrial monitoring and control applications.
Moreover, Honeywell designs the TK-MDP081 for seamless integration within distributed control system architectures.
Additionally, the module processes high-frequency pulse signals with stability in demanding automation environments.
Therefore, engineers rely on TK-MDP081 for precise counting and reliable system performance.
Key Technical Features
The TK-MDP081 provides eight pulse input channels for efficient signal handling in industrial control systems.
Furthermore, the module supports high-speed counting for encoder and frequency-based measurement applications.
In addition, Honeywell equips the TK-MDP081 with input isolation to protect systems from electrical interference.
As a result, the module ensures accurate data capture and consistent performance across continuous operations.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model | TK-MDP081 |
| Manufacturer | Honeywell |
| Product Type | Pulse Input Module |
| Application | Pulse signal acquisition and frequency measurement |
| Input Channels | 8 independent pulse input channels |
| Input Signal Type | Digital pulse signals (TTL/industrial level) |
| Input Voltage Range | 5V to 24V DC typical |
| Maximum Input Frequency | Up to 20 kHz per channel |
| Input Isolation | Channel-to-system isolation |
| Counter Resolution | 32-bit high-resolution counting |
| Response Time | Fast response for real-time pulse detection |
| Data Processing | High-speed counting and frequency calculation |
| Interface | Backplane communication with controller |
| Power Supply | Backplane powered |
| Power Consumption | Approx. 4–6 W |
| Dimensions | Approx. 200 mm × 120 mm × 45 mm |
| Weight | Approx. 0.7 kg |
| Mounting | Standard rack or carrier-based installation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Energy Storage | None (active electronic module) |
| Protection Features | Overvoltage and signal noise protection |
FAQ
Q1: How many input channels does the TK-MDP081 provide?
A1: The TK-MDP081 provides 8 independent pulse input channels for flexible signal acquisition.
Q2: What is the maximum input frequency supported?
A2: The TK-MDP081 supports pulse input frequencies up to 20 kHz per channel.
Q3: Does the module include isolation protection?
A3: Yes, the TK-MDP081 includes input isolation to protect against electrical interference and noise.
Q4: Is the product available in stock and how fast is shipping?
A4: The TK-MDP081 is brand new original with stock available, and shipping takes 3 days to 2 weeks.
Q5: Which logistics services do you use?
A5: We commonly use DHL and similar carriers to deliver the TK-MDP081 quickly and safely.
Q6: What if there is a quality issue after purchase?
A6: The TK-MDP081 supports a 30-day return policy if any quality issue occurs after delivery.
