Overview

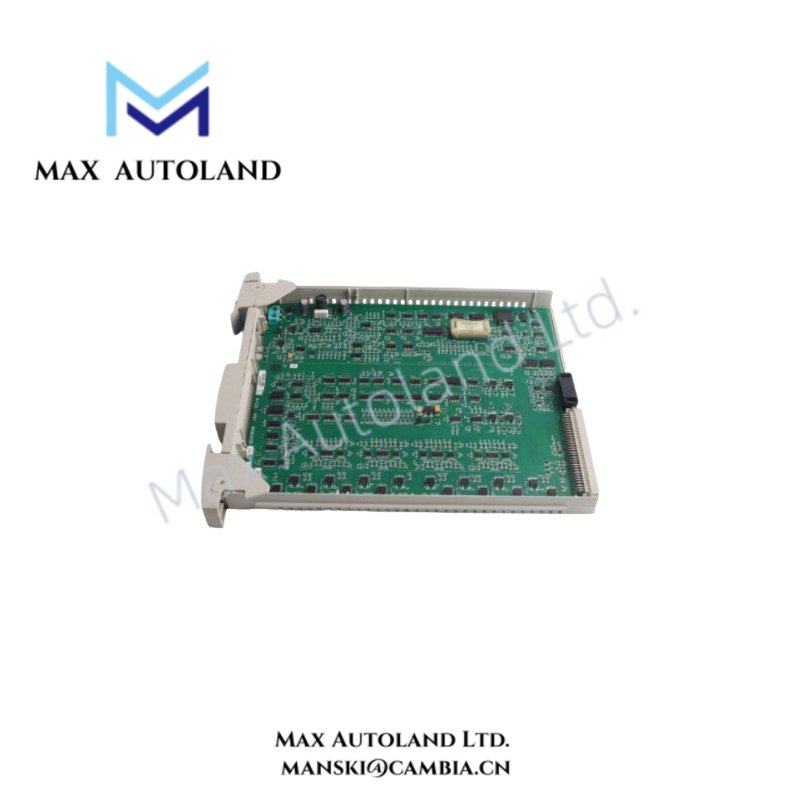

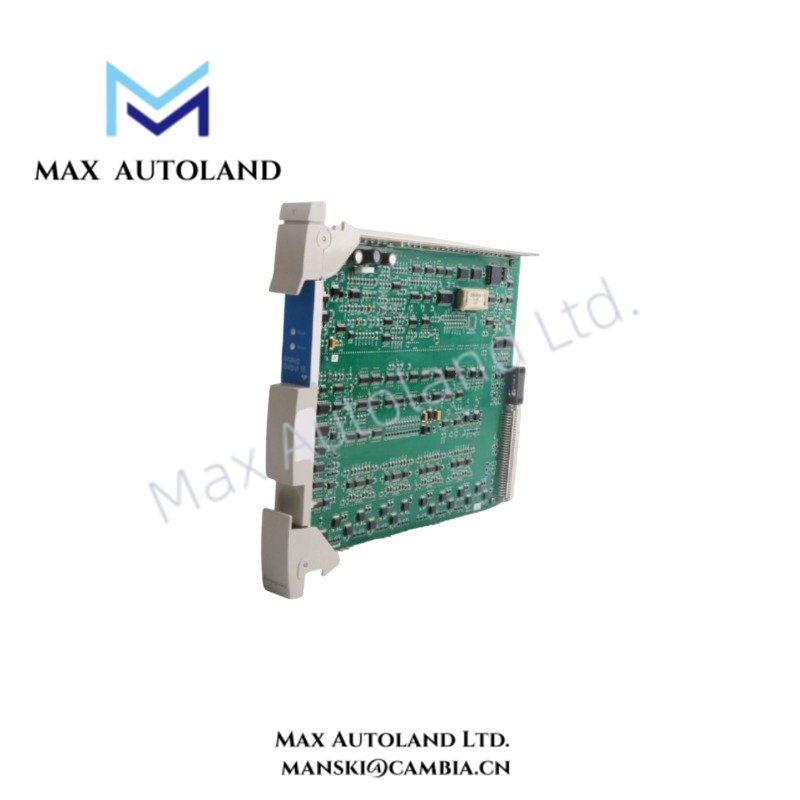

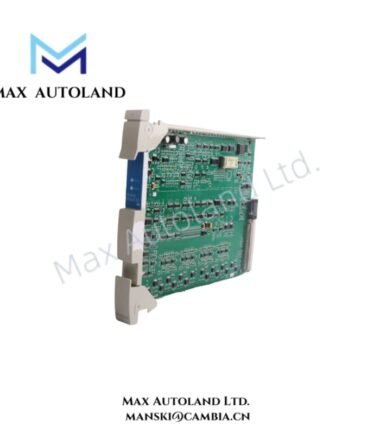

Configured for 4-20 mA analog current output execution in Honeywell TDC 3000 HPM, PM, and APM systems, the Honeywell MU-PAOY22-100 / MU-PAOY22-175 (MU-PAOY22 High-Level Analog Output Module) provides direct electrical conversion from digital controller commands to field actuator loops.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MU-PAOY22 |
| Brand | Honeywell |
| Origin | USA |
| Operating Temp | 0 deg C to +60 deg C |
| Power Consumption | Internal 24 VDC bus powered |
| Part Number (P/N) | 51304335-100 / 51304335-175 |
| Module Type | High-Level Analog Output (HLAO) Module |
| System Compatibility | Honeywell TDC 3000 PM, APM, HPM I/O racks |
| Channel Count | 16 output channels |
| Output Signal | 4-20 mA DC |
| Digital Conversion | 12-bit D/A conversion |
| Maximum Load Resistance | 750 ohm at 24 VDC |
| Output Accuracy | +/- 0.15% of full scale |
| Isolation Type | Galvanic isolation |
| Hot-Swap Support | Supported for online module replacement |
| Coating Type | Uncoated standard version |
4-20 mA Loop Control and Channel Isolation
The MU-PAOY22 operates as a Honeywell process I/O output interface that converts controller-generated digital values into proportional analog current signals. Therefore, each output channel can drive field devices including control valves, actuator positioners, and variable frequency drive references through standard 4-20 mA loops.
The module applies channel-to-channel isolation to reduce electrical interference between field circuits. In addition, the galvanic isolation design limits ground loop influence and supports stable analog transmission in industrial control environments.
The module architecture follows Honeywell DCS analog output requirements. However, the MU-PAOY22 does not provide direct HART communication functionality; it performs current signal generation for conventional analog field loops.
Frequently Asked Questions
Q: Can the MU-PAOY22 be replaced while the Honeywell controller remains powered?
A: Yes. The module supports hot-swap operation, allowing replacement procedures without removing overall system power. The user must follow Honeywell rack replacement procedures during installation.
Q: What type of field signal does the MU-PAOY22 generate?
A: The module generates 4-20 mA DC analog output signals through 16 independent output channels for process control devices.
Q: Does the MU-PAOY22 require an external power supply connection?
A: No. The module receives operating power through the internal 24 VDC I/O rack bus.
Field Installation Guidelines
Install the MU-PAOY22 module only in compatible Honeywell TDC 3000 PM, APM, or HPM I/O rack positions.
Before installation, verify the rack power status and confirm the correct module slot assignment. Connect field wiring according to the approved Honeywell termination documentation.
Use shielded signal cables for analog current loops where required by site electrical standards. Connect cable shields according to the plant grounding practice to reduce noise coupling.
Separate analog output wiring from high-voltage power cables and switching circuits. Maintain proper cable routing to minimize electromagnetic interference.
Verify each 4-20 mA loop current value after installation by checking controller output commands and corresponding field device responses.
