Overview

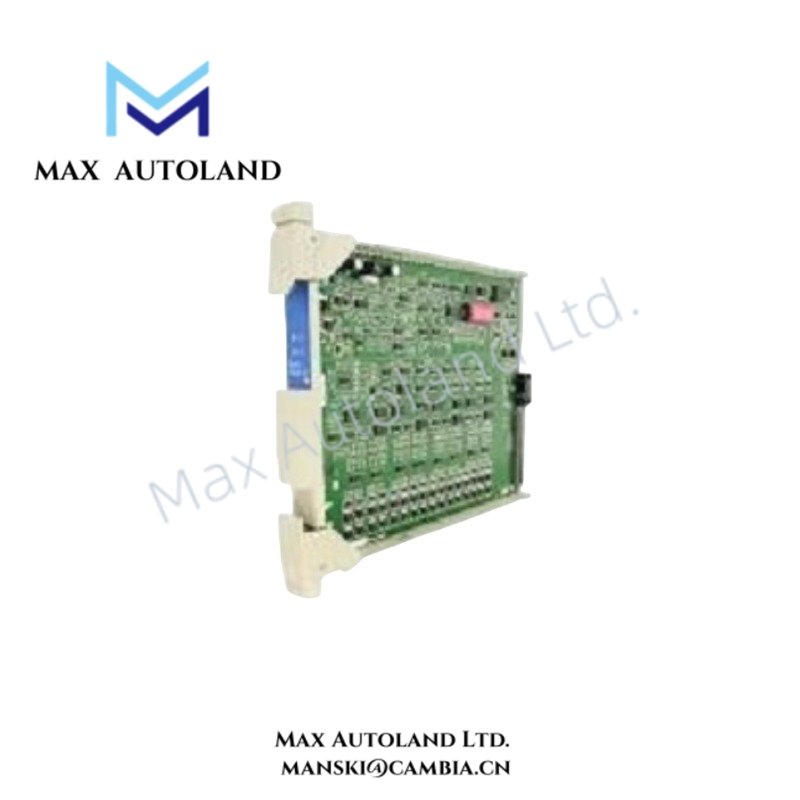

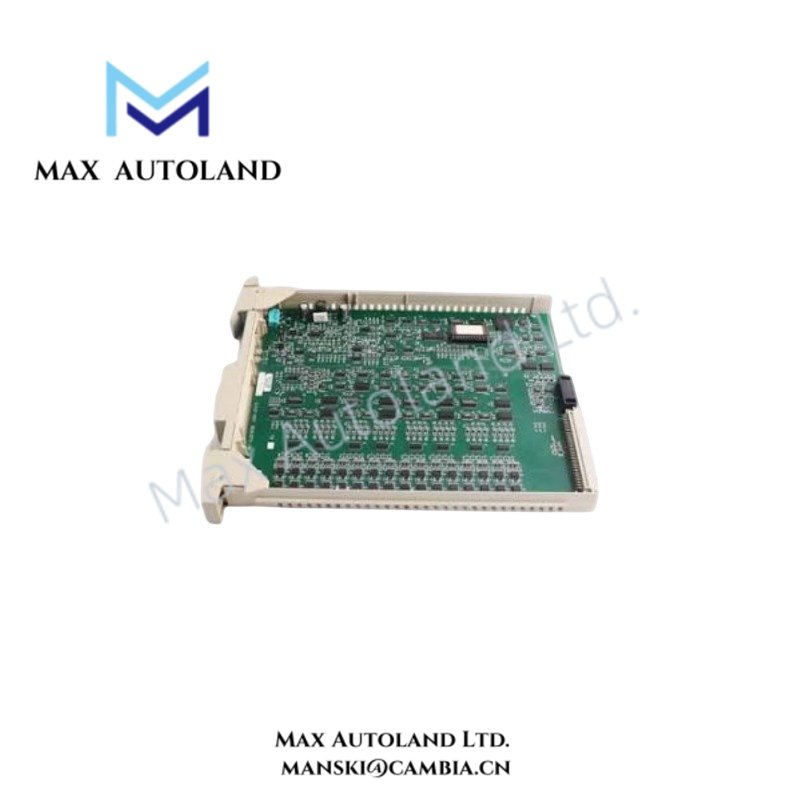

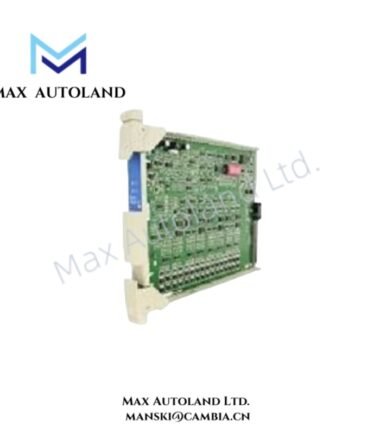

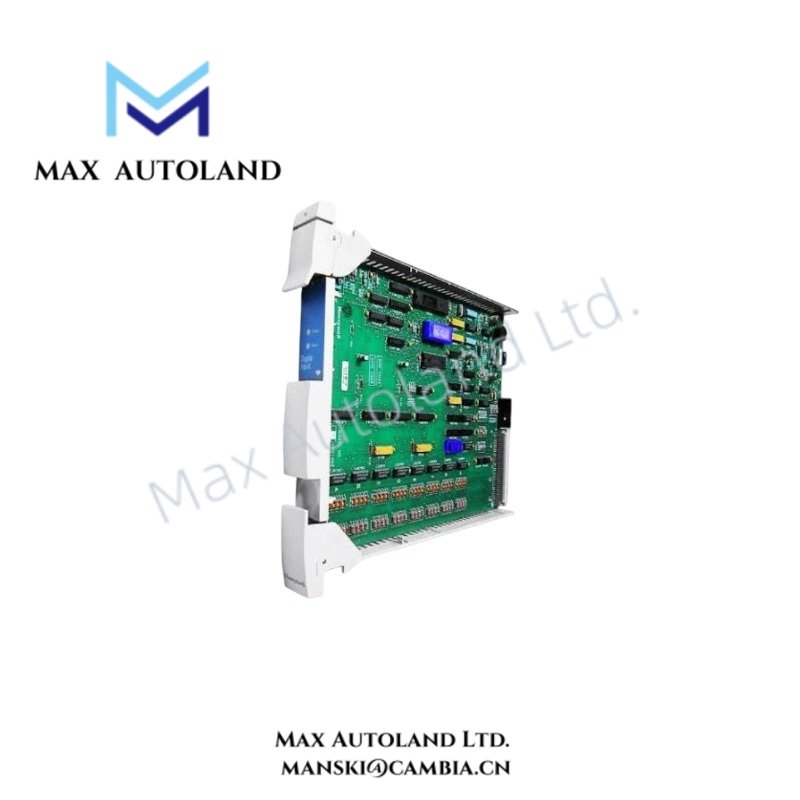

Configured for discrete output signal execution in Honeywell TDC 3000 Process I/O Subsystems, the Honeywell MU-PDOY22-51309152-175/51309152-275 (MU-PDOY22 Digital Output Module) provides direct electrical switching control for field devices including solenoids, relays, alarms, and indicators.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MU-PDOY22 |
| Brand | Honeywell |
| Origin | USA |
| Product Type | Digital Output Module |
| Part Number | 51309152-175 / 51309152-275 |
| System Compatibility | TDC 3000 / Process Manager (PM) / Advanced Process Manager (APM) / High-Performance Process Manager (HPM) |
| Module Function | High-Density Digital Output Signal Switching |
| Channel Configuration | 16 or 32 channels, configuration dependent |
| Output Voltage | 24 VDC nominal |
| Operating Voltage Range | 20.4 VDC to 30 VDC |
| Maximum Output Current | Approximately 0.5 A per channel |
| Signal Isolation | Galvanic isolation between field circuits and logic circuits |
| Communication Interface | Honeywell Process I/O subsystem backplane interface |
| Diagnostics | Internal hardware monitoring and output channel fault detection |
| Hot-Swap Capability | Supported within compatible Honeywell I/O subsystem configurations |
| Operating Temp | 0 deg C to 60 deg C |
| Power Consumption | Low power design, exact value depends on channel loading |
Process Control Signal Isolation and DCS Integration
The MU-PDOY22 applies Honeywell DCS I/O architecture for discrete field control. The module receives output commands through the Process I/O subsystem backplane and drives external loads through isolated output channels.
Furthermore, the module design supports channel-to-channel isolation principles used in process control environments. This configuration reduces electrical interference between field circuits and protects internal controller electronics from field-side disturbances.
The module is designed for digital switching applications rather than analog measurement functions. Therefore, it does not provide 4-20 mA HART input processing or FOUNDATION Fieldbus communication functions. Instead, it performs binary output execution for connected field equipment.
Frequently Asked Questions
Q: Does the MU-PDOY22 support hot-swap replacement?
A: The MU-PDOY22 supports hot-swap operation when installed in a compatible Honeywell Process I/O subsystem configuration. The replacement procedure must follow the approved system maintenance sequence.
Q: What type of field devices can the MU-PDOY22 control?
A: The module controls discrete electrical loads such as solenoid valves, relay coils, alarms, and indicator devices through digital output channels.
Q: Does the MU-PDOY22 provide channel isolation?
A: Yes. The module uses galvanic isolation between field-side circuits and internal logic circuits to reduce signal interference and improve electrical separation.
Field Installation Guidelines
Install the MU-PDOY22 in the designated Honeywell Process I/O subsystem rack position according to the system hardware configuration manual.
Verify that field wiring matches the assigned digital output channel mapping before energizing connected devices. Separate low-level signal wiring from high-energy switching cables to reduce electrical noise coupling.
Connect field cable shields according to the plant grounding standard. Avoid creating multiple shield grounding points unless the site electrical design requires them.
Before replacement or maintenance, confirm the process state and isolate external field loads when required. Check terminal connections, module seating, and backplane engagement after installation.
