Overview

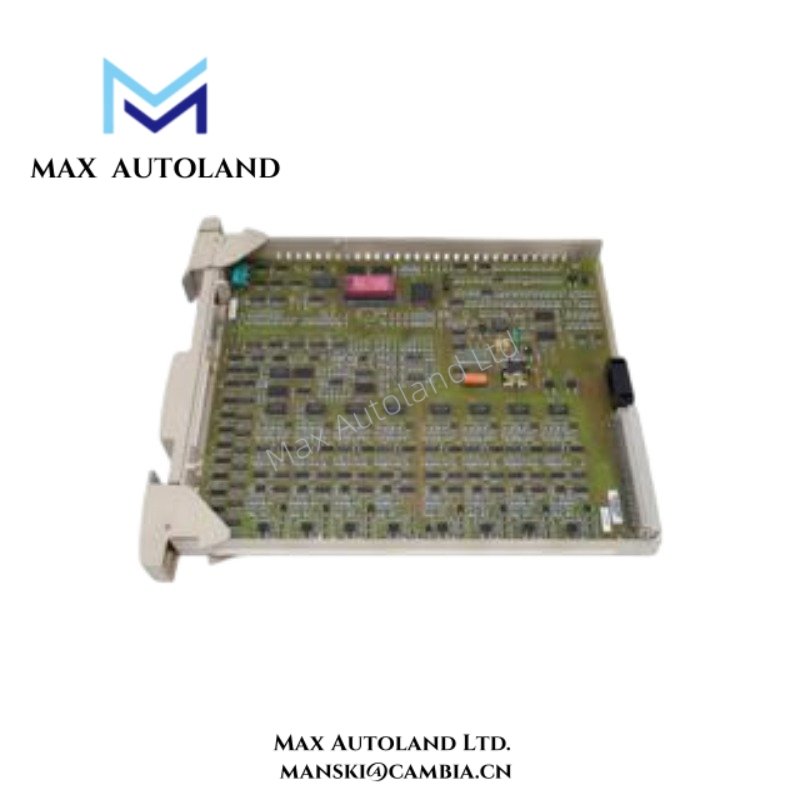

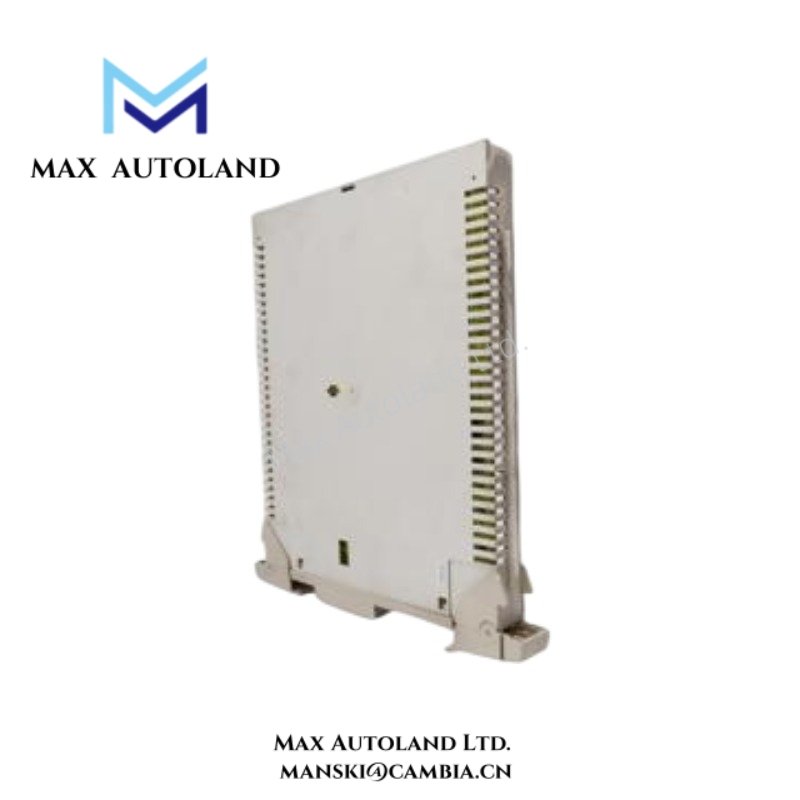

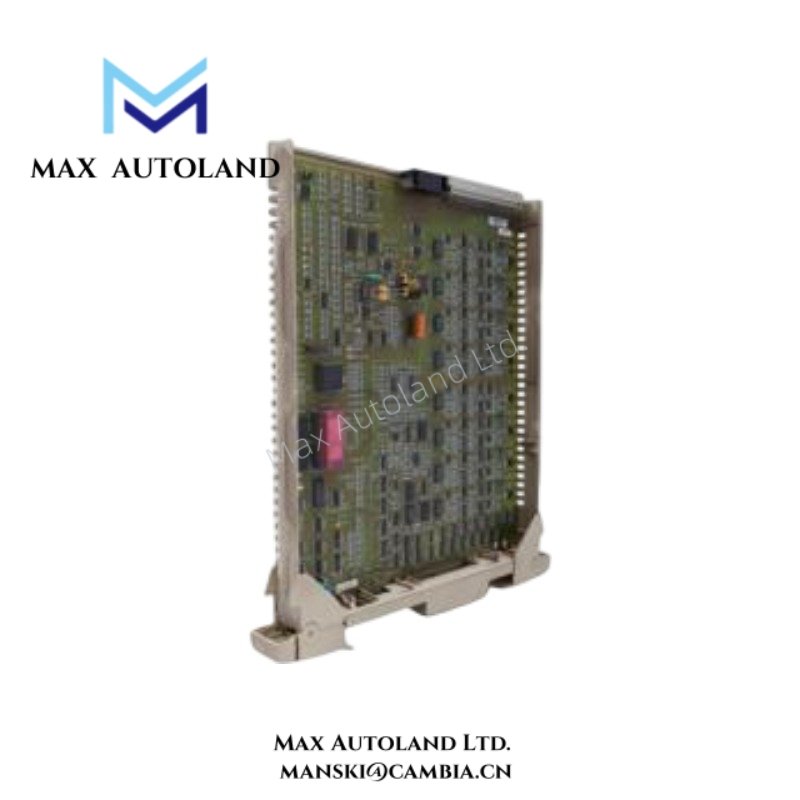

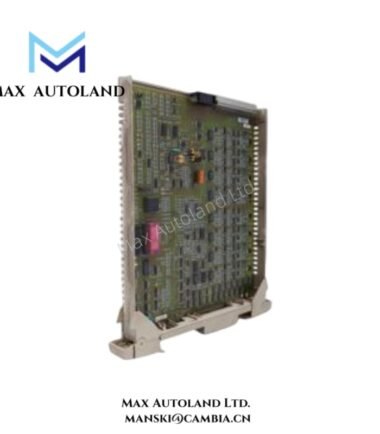

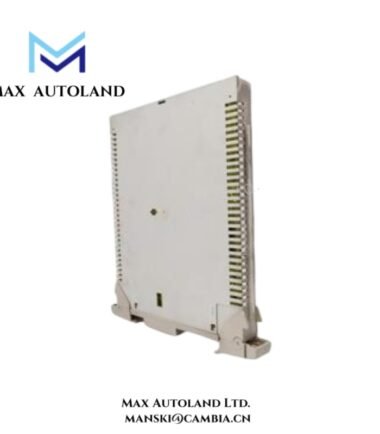

MC-PAOX03 51309152-175 delivers precise analog output control for Honeywell industrial automation and distributed control systems.
This module belongs to the Honeywell UCN series, so it ensures reliable integration with advanced control architectures.
Moreover, MC-PAOX03 51309152-175 combines processor and FTA functions, which simplifies system design and wiring complexity.
It features conformal coating protection, while it ensures stable operation in harsh and high-humidity environments.
Key Features and Functional Benefits
MC-PAOX03 51309152-175 supports eight independent analog output channels, so it enables flexible process control configurations.
Additionally, the module provides high-resolution signal output, which improves control accuracy across industrial applications.
It integrates advanced signal conditioning circuits, therefore it reduces electrical noise and enhances signal stability.
Furthermore, the conformal coating protects internal components, while it extends product lifespan under demanding conditions.
Engineers benefit from compact FTA integration, which simplifies installation and reduces overall system footprint.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model Number | MC-PAOX03 51309152-175 |
| Manufacturer | Honeywell |
| Product Type | Analog Output Processor with Field Termination Assembly (FTA) |
| Series | Honeywell UCN / DCS Series |
| Output Channels | 8 independent analog output channels |
| Output Signal | 4–20 mA current output (standard industrial signal) |
| Resolution | 12–16 bit digital-to-analog conversion for precise control |
| Output Accuracy | ±0.1% of full scale for stable signal delivery |
| Output Load | Up to 500 Ω typical load capability |
| Response Time | ≤10 ms for fast control response |
| Signal Isolation | Channel-to-channel and system isolation for protection |
| Isolation Voltage | Up to 500 V AC electrical isolation |
| Power Supply | 24 V DC input via system |
| Power Consumption | Approx. 6–10 W depending on load conditions |
| Interface Type | Integrated FTA with direct field wiring terminals |
| Terminal Type | Screw terminals for secure and reliable connections |
| Coating Type | Conformal coating for moisture and dust protection |
| Dimensions (W×H×D) | Approx. 300 × 180 × 60 mm for panel mounting |
| Weight | Approx. 1.5–2.2 kg due to integrated FTA design |
| Operating Temperature | 0°C to 60°C for industrial environments |
| Storage Temperature | -40°C to 85°C for safe storage |
| Humidity Range | 5% to 95% non-condensing conditions |
| Mounting Method | Panel-mounted FTA installation |
| Protection Features | Surge protection and signal fault detection |
FAQ
Q1: Is this product brand new and original?
Yes, MC-PAOX03 51309152-175 comes as brand new original equipment with guaranteed authenticity.
Q2: Do you have stock available?
We keep MC-PAOX03 51309152-175 in stock, so we can process orders quickly.
Q3: How fast can you ship the product?
We ship MC-PAOX03 51309152-175 within 3 days to 2 weeks, depending on order size.
Q4: Which logistics services do you use?
We use reliable carriers such as DHL, so delivery remains fast and trackable.
Q5: What should I do if there is a quality issue?
We support returns for MC-PAOX03 51309152-175 within 30 days if any quality issue occurs.
Q6: What protection does the conformal coating provide?
MC-PAOX03 51309152-175 uses conformal coating to protect against moisture, dust, and corrosive environments.
