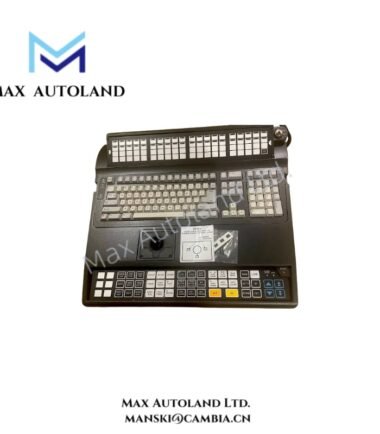

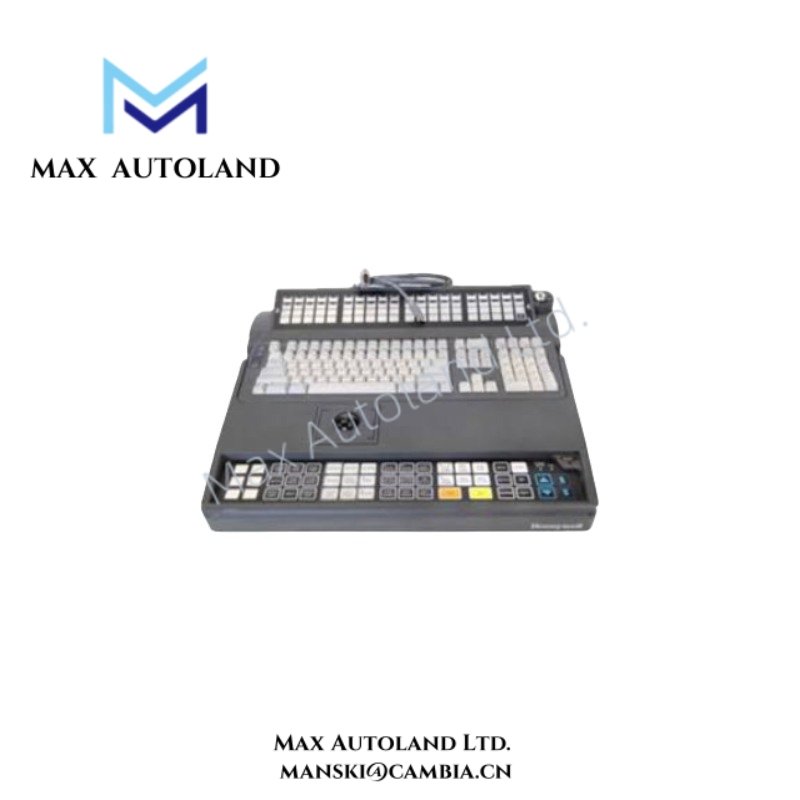

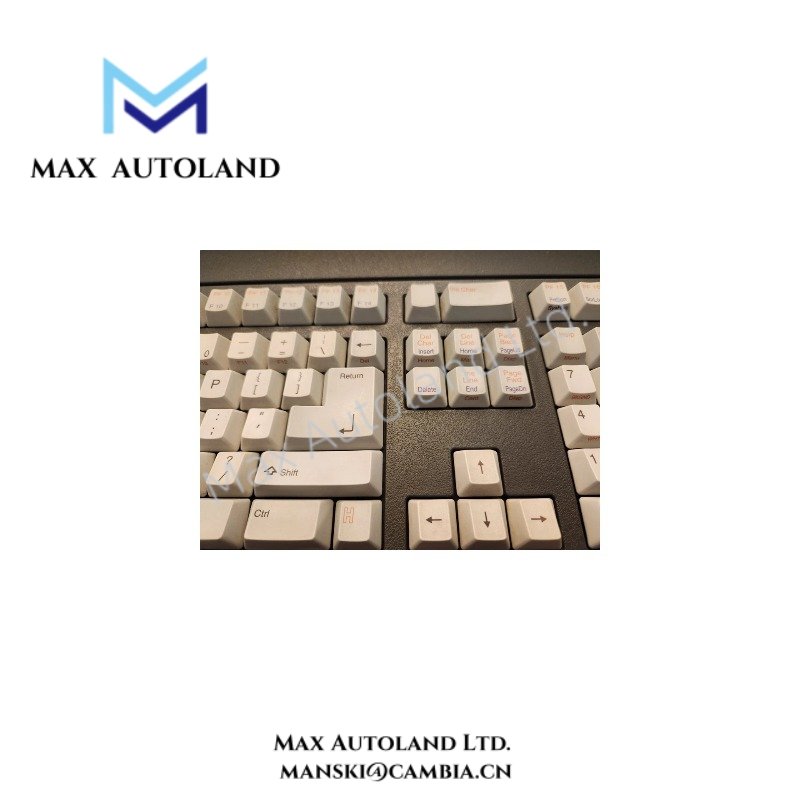

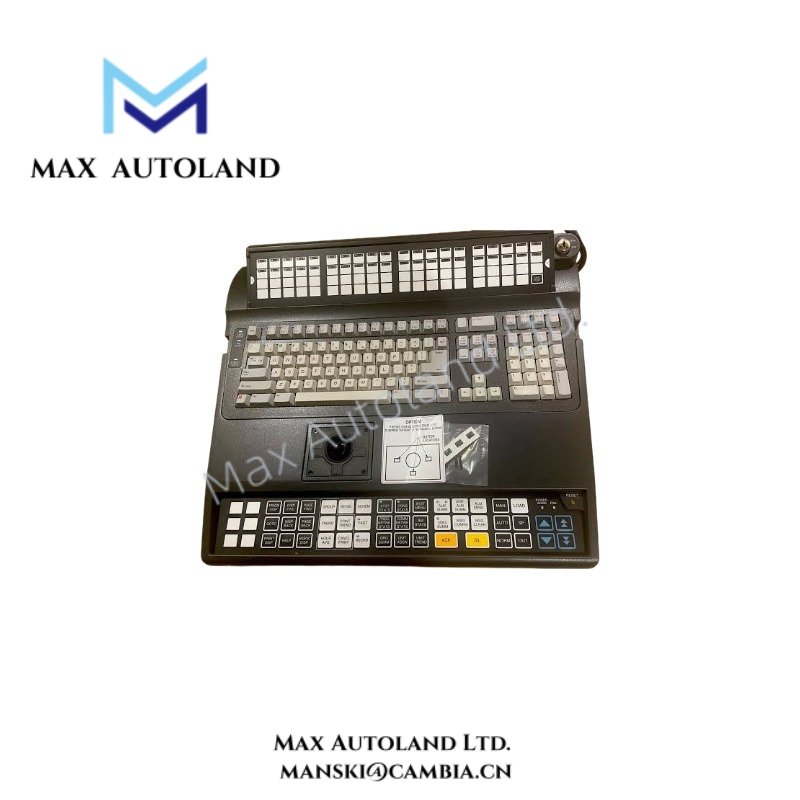

Honeywell TP-DIKBTA-100 Keyboard with Integrated Trackball

Overview

Configured for operator input, cursor positioning, and alarm acknowledgment in Honeywell TPS / TDC 3000 Universal Station console environments, the Honeywell TP-DIKBTA-100 (51196694-300 industrial operator keyboard) provides direct physical execution of HMI command and navigation functions across distributed control system terminals.

Suffix Breakdown & Model Matrix

The ordering designation 51196694-300 represents the base assembly identifier for the TP-DIKBTA-100 keyboard platform. No formally published functional segmentation or electrical option matrix is defined beyond revision-level suffix extensions (e.g., /U variants) used for manufacturing or firmware/packaging control.

Hardware Specifications

Honeywell DCS Console Input Subsystem Characteristics

Within Honeywell TPS / TDC 3000 architectures, console peripherals such as TP-DIKBTA-100 interface through deterministic operator station communication channels. Input scanning and key matrix polling are executed via console I/O controllers integrated into Universal Station hardware, with timing behavior aligned to system-level process display refresh cycles. Trackball position data is sampled as relative cursor displacement vectors, mapped into HMI display coordinate space. Electrical signaling typically follows low-voltage 5 VDC logic with console-side buffering and input debouncing managed at controller level. Channel-to-console isolation is implemented at the workstation I/O boundary to prevent signal noise propagation into process network layers.

Frequently Asked Questions (FAQ)

Q: Is the TP-DIKBTA-100 hot-swappable during Universal Station operation?
A: No hot-swap capability is defined for this keyboard within TPS / TDC 3000 console architectures. Connection is intended for controlled power-down or maintenance window replacement.

Q: What is the electrical load contribution of the integrated keyboard and trackball unit?
A: The device operates from a 5 VDC console supply with low current draw typical of PS/2-class input peripherals. Exact consumption is not separately specified and is managed by the host console interface.

Q: Does the module support firmware-level field upgrades?
A: No field firmware update mechanism is defined for TP-DIKBTA-100. Functional behavior is determined by console controller firmware and system-level HMI software.

Field Installation Guidelines

Install the keyboard assembly on a stable operator console mounting plane with mechanical strain relief applied to the interface cable. Maintain separation between signal cabling and high-energy switching conductors to minimize electromagnetic coupling. Ensure shield continuity is bonded at the console chassis grounding point only, avoiding multiple earth reference loops. Connector insertion must be fully seated with locking engagement confirmed before system power application. Do not apply torque or bending stress to the integrated trackball housing during installation or service handling.
