Overview

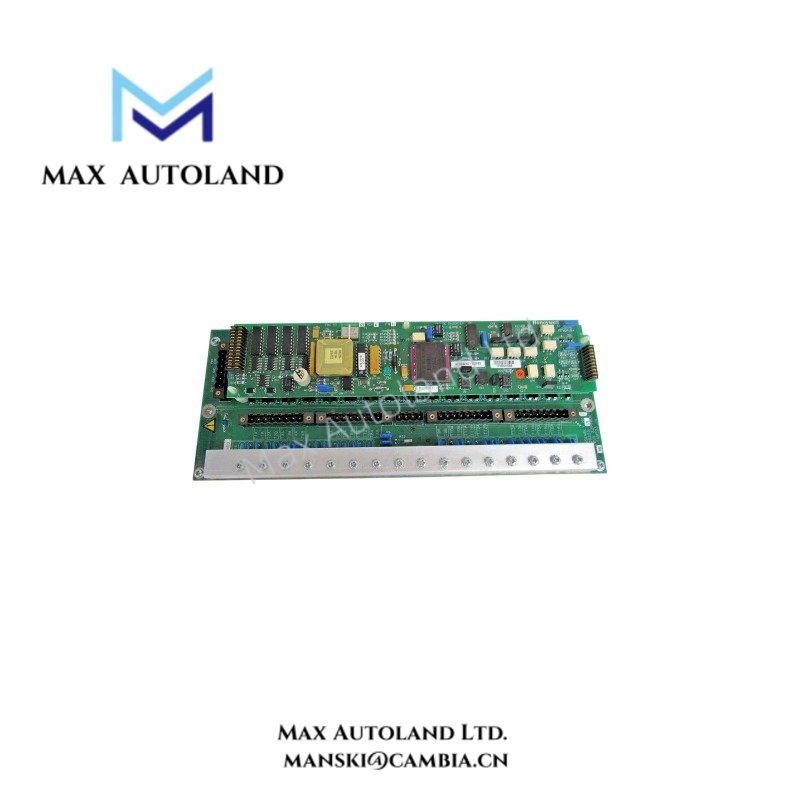

Configured for analog output field termination and physical signal interfacing in Honeywell process control systems, the Honeywell MC-PAOX03 51309512-175 (MC-PAOX03 Analog Output Field Termination Assembly) provides direct electrical termination between the control system hardware and associated field wiring. The assembly is intended for cabinet-based installation within compatible Honeywell TPS, TDC 3000, and Experion PKS system architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MC-PAOX03 51309512-175 |
| Base Model | MC-PAOX03 |
| Brand | Honeywell |
| Product Type | Analog Output / Field Termination Assembly (FTA) |
| Primary Function | Analog output signal termination and field wiring interface |
| System Compatibility | Honeywell Experion PKS, TDC 3000, TPS systems |
| Installation Environment | Industrial control cabinet or control room installation |
| Relative Humidity | 10% to 90%, non-condensing |
| Mounting Type | DIN rail or panel mounting, depending on cabinet configuration |
| Field Interface | Terminal-based connection for associated analog output circuits |
| Terminal Ratings | Verify against the applicable Honeywell hardware documentation and system revision |
4-20 mA Process Signal Interface Considerations
The MC-PAOX03 supports the physical field termination function associated with Honeywell analog output architectures. Where the connected system configuration uses 4-20 mA process loops, loop wiring must match the associated controller or analog output hardware specifications.
In addition, installers should maintain separation between analog signal wiring and higher-energy conductors. Correct cable shielding and grounding practices help reduce externally induced electrical noise. The exact HART capability, if applicable, depends on the connected analog output hardware and system configuration rather than the provided MC-PAOX03 identification data alone.
Frequently Asked Questions
Q: Does the MC-PAOX03 51309512-175 generate analog output signals directly?
A: The provided data identifies the unit as an Analog Output / Field Termination Assembly component. Signal generation characteristics depend on the associated Honeywell analog output hardware.
Q: Can the MC-PAOX03 51309512-175 be installed directly on a DIN rail?
A: The provided specifications indicate DIN rail or panel mounting for cabinet-based infrastructure. The final mounting method should match the applicable Honeywell cabinet arrangement and mechanical documentation.
Q: Are the terminal current and voltage ratings specified for this model?
A: No specific terminal current or voltage ratings are provided. Verify the applicable Honeywell hardware manual before connecting field circuits.
Field Installation Guidelines
Disconnect or isolate applicable cabinet power before installing or modifying field wiring.
Mount the assembly according to the mechanical arrangement specified for the compatible Honeywell control cabinet. Secure the component to prevent movement caused by vibration or wiring stress.
Route analog field wiring separately from power circuits, motor cables, and other conductors carrying high switching currents. Where shielded cable is required by the connected I/O architecture, terminate the shield according to the system grounding scheme.
Identify each field conductor before termination and verify terminal assignments against the applicable system wiring documentation. Do not infer terminal ratings or loop polarity from the MC-PAOX03 model designation alone.
After installation, inspect terminal tightness, cable strain relief, shielding continuity, and grounding connections before energizing the associated control system.
