Overview

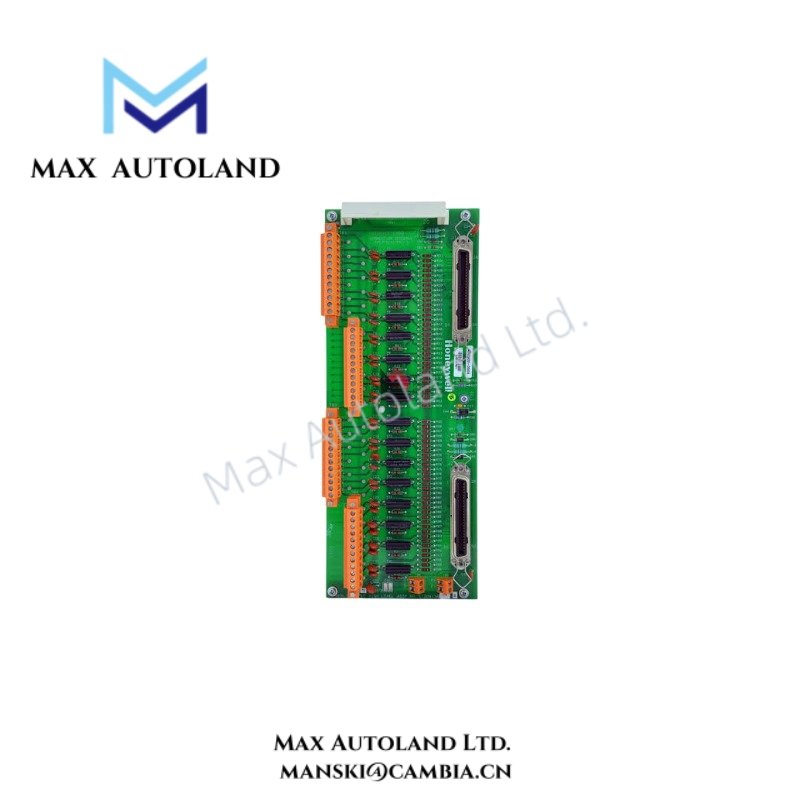

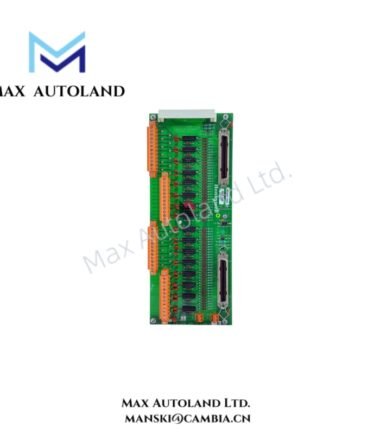

The Honeywell FTA-T-04, also cataloged as the FTA-T-04 Field Termination Assembly, operates as a dedicated hardware component for field signal termination and interface routing within Honeywell Experion PKS and Safety Manager I/O systems. It provides the physical connection between field wiring and compatible I/O modules while supporting organized signal distribution and field-side protection.
Suffix Breakdown & Model Matrix
The available documentation identifies FTA-T-04 as a fixed model designation. No official suffix matrix or ordering-code breakdown is specified in the provided technical information.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FTA-T-04 |
| Brand | Honeywell |
| Origin | USA |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Passive field termination assembly; no independent power consumption specified |
| Product Type | Field Termination Assembly (FTA) |
| Supported Channels | Typically 16 or 32 channels depending on paired I/O module |
| Connection Type | Screw terminals (field side); dedicated ribbon or multi-pin connector (I/O side) |
| Mounting | DIN rail or dedicated FTA mounting rack |
| Signal Compatibility | Digital input, digital output, or analog signals depending on associated I/O module |
| Isolation / Protection | Channel isolation and/or per-channel fusing depending on hardware configuration |
| Relative Humidity | 5 % to 95 % RH, non-condensing |
| Compatible Systems | Honeywell Experion PKS, Safety Manager |
Channel-to-Channel Isolation Characteristics
Depending on the associated FTA configuration, the FTA-T-04 incorporates channel isolation and field-side protective elements to separate individual signal paths. Isolation reduces electrical coupling between adjacent channels, while optional per-channel fusing limits the impact of field wiring faults on connected I/O modules. Actual protection features depend on the specific FTA assembly variant and the paired Honeywell I/O module.
Frequently Asked Questions
Q: Does the FTA-T-04 process field signals independently?
A: No. The assembly functions as a passive field termination interface. Signal acquisition and processing are performed by the connected Honeywell I/O module.
Q: Can the FTA-T-04 support both analog and digital signals?
A: Signal compatibility depends on the associated Honeywell I/O module and the specific FTA configuration. The termination assembly provides the electrical interface rather than signal conversion.
Q: Is hot replacement supported while field circuits remain energized?
A: Hot replacement capability is determined by the connected controller, I/O carrier, and system maintenance procedures. Field power should be isolated whenever wiring modifications are performed unless permitted by the applicable Honeywell maintenance documentation.
Field Installation Guidelines
- Mount the assembly securely on the specified DIN rail or approved mounting rack before connecting field wiring.
- Verify that the selected FTA matches the intended Honeywell I/O module and connector type before installation.
- Route signal wiring separately from high-voltage and high-current conductors to minimize electrical interference.
- Terminate cable shields according to the control system grounding strategy and avoid multiple shield ground points unless specified by the system design.
- Tighten terminal screws using the torque specified in the applicable Honeywell installation documentation.
- Label all field conductors before commissioning to simplify future maintenance and troubleshooting.
- Inspect terminal connections after installation to verify conductor retention and correct channel assignment.
