Overview

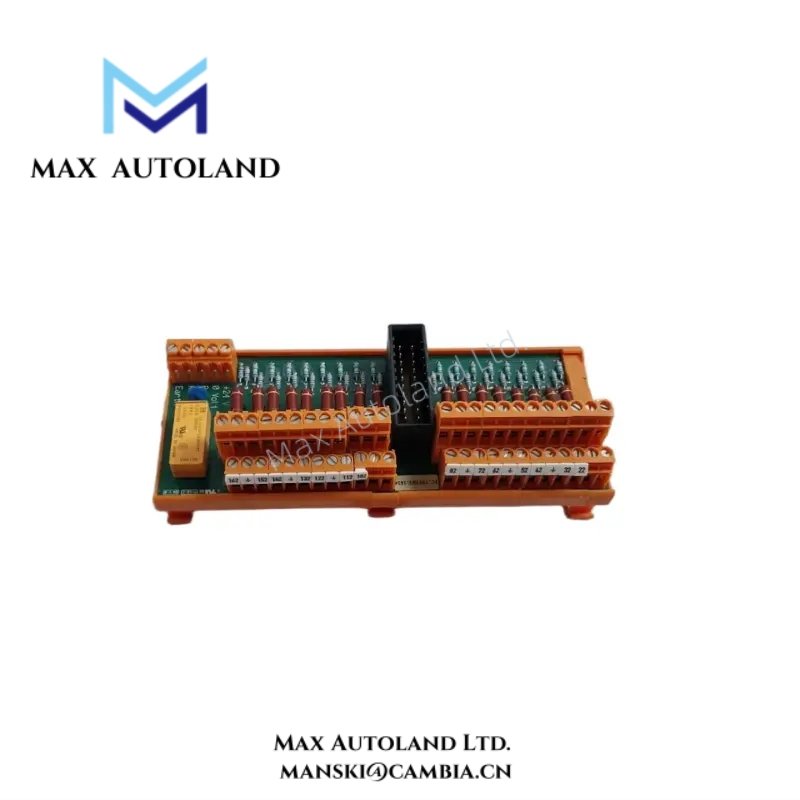

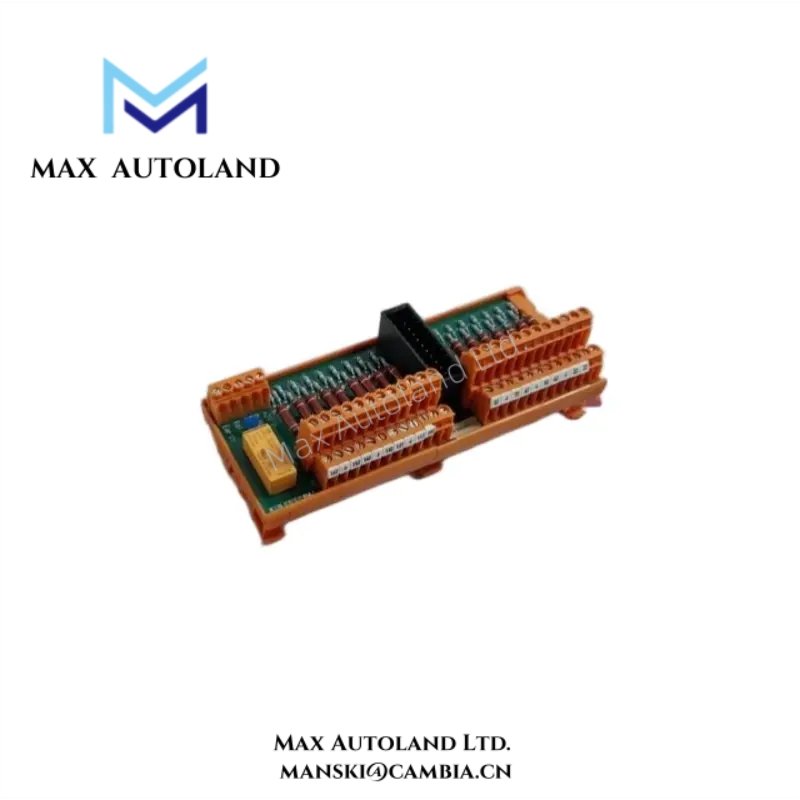

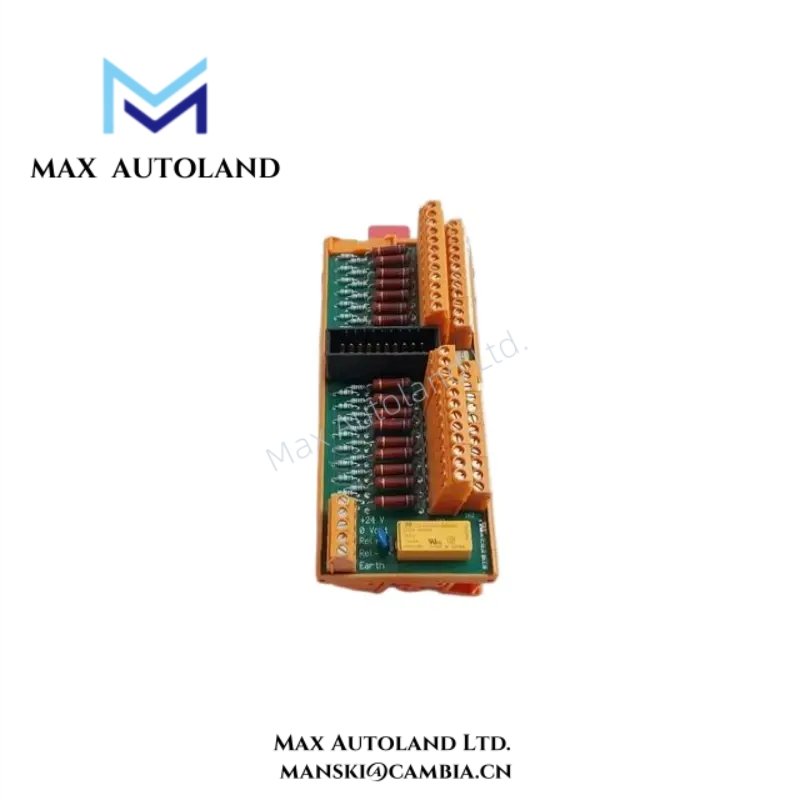

The FC-TSFIRE-1624 Honeywell FSC Series Field Termination Assembly Module provides a structured and reliable interface for safety-related field wiring. It connects Honeywell FSC Series I/O modules to external field devices with consistent signal integrity. Moreover, this termination assembly improves wiring organization within Safety Manager safety instrumented systems.
Specification
| Parameter | Specification |
|---|---|
| Model | FC-TSFIRE-1624 |
| Manufacturer | Honeywell |
| Series | FSC (Fail Safe Controller) Series |
| Product Type | Field Termination Assembly Module |
| Supported Channels | 16 field signal termination points |
| Signal Compatibility | Safety-related digital and field signals |
| Terminal Type | Industrial screw terminals |
| Field Wiring Capacity | Suitable for standard industrial control wiring |
| Electrical Isolation | Provided through system-level design |
| Diagnostics Support | Signal status monitored via Safety Manager controller |
| Backplane Interface | Direct connection to FSC Series I/O modules |
| Mounting Method | DIN rail mounting |
| Energy Storage | No internal energy storage components |
| Operating Temperature | –5 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5–95%, non-condensing |
| Dimensions (W × H × D) | Approx. 210 × 100 × 60 mm |
| Weight | Approx. 0.5 kg |
| System Compatibility | Honeywell Safety Manager FSC systems |
FAQ
Q1: What is the main purpose of the FC-TSFIRE-1624 module?
A1: The FC-TSFIRE-1624 provides field termination for sixteen safety-related signal channels.
Q2: Which systems support this field termination assembly?
A2: It integrates directly with Honeywell FSC Series Safety Manager I/O modules and systems.
Q3: Does this module include active electronic components?
A3: No, the FC-TSFIRE-1624 contains no active electronics or energy storage components.
Q4: What types of field devices can connect to this module?
A4: It supports sensors, switches, actuators, and other safety-related field devices.
Q5: Is this product supplied new and original?
A5: Yes, all units are brand-new, original Honeywell products.
Q6: What are the shipping and return conditions?
A6: In-stock items ship within 3 days to 2 weeks, and we support 30-day returns for quality issues.
