Overview

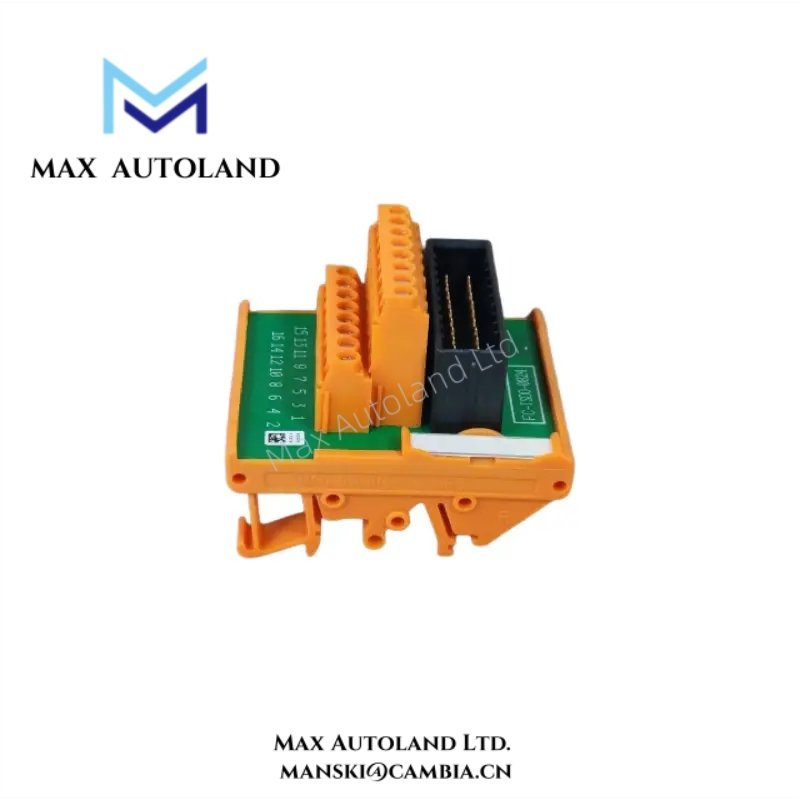

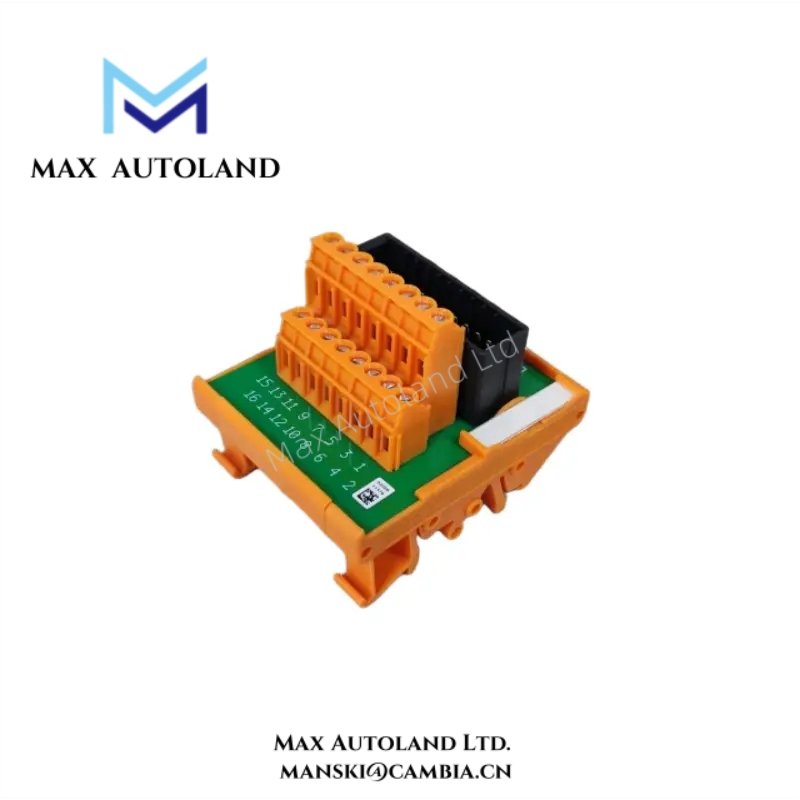

The FC-TSDO-0824 Honeywell FSC Series Safe Digital Output FTA provides a reliable termination interface for safety digital output signals. It connects Honeywell FSC digital output modules to field devices with stable signal routing. Moreover, this FTA supports consistent wiring practices in Safety Manager safety instrumented systems.
Specification
| Parameter | Specification |
|---|---|
| Model | FC-TSDO-0824 |
| Manufacturer | Honeywell |
| Series | FSC (Fail Safe Controller) Series |
| Product Type | Safe Digital Output Field Termination Assembly (FTA) |
| Supported Channels | 8 digital output channels |
| Output Signal Type | Safe digital output termination |
| Rated Output Voltage | Up to 24 V DC (module dependent) |
| Rated Output Current | Defined by connected FSC output module |
| Channel Isolation | Electrical isolation through system design |
| Terminal Type | Industrial screw terminals |
| Field Wiring Capacity | Suitable for standard industrial control wiring |
| Diagnostics Support | Status monitoring via Safety Manager controller |
| Backplane Interface | Direct connection to FSC Series output modules |
| Mounting Method | DIN rail mounting |
| Energy Storage | No internal energy storage components |
| Operating Temperature | –5 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5–95%, non-condensing |
| Dimensions (W × H × D) | Approx. 170 × 95 × 60 mm |
| Weight | Approx. 0.45 kg |
| System Compatibility | Honeywell Safety Manager FSC systems |
FAQ
Q1: What is the main function of the FC-TSDO-0824?
A1: The FC-TSDO-0824 provides safe termination for eight digital output channels in FSC safety systems.
Q2: Which systems support this FTA?
A2: It integrates directly with Honeywell FSC Series Safety Manager digital output modules.
Q3: Does this FTA include active electronic components?
A3: No, the FC-TSDO-0824 contains no active electronics or energy storage components.
Q4: What types of field devices can it connect?
A4: It supports solenoid valves, relays, alarms, and other digital safety actuators.
Q5: Is the product supplied new and original?
A5: Yes, all units are brand-new, original Honeywell products.
Q6: What are the shipping and return terms?
A6: In-stock items ship within 3 days to 2 weeks, and we support 30-day returns for quality issues.
