Overview

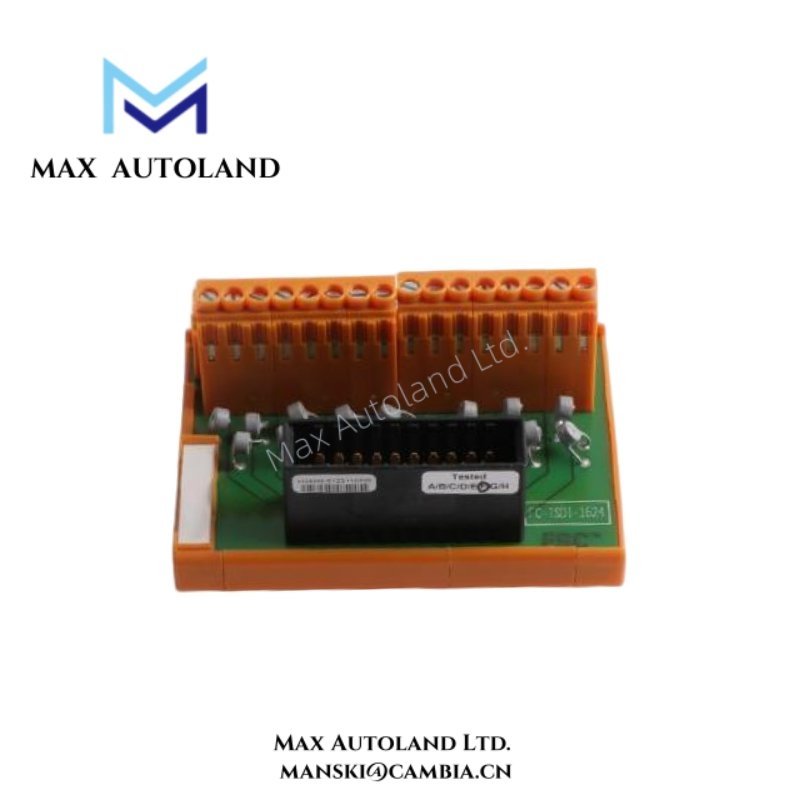

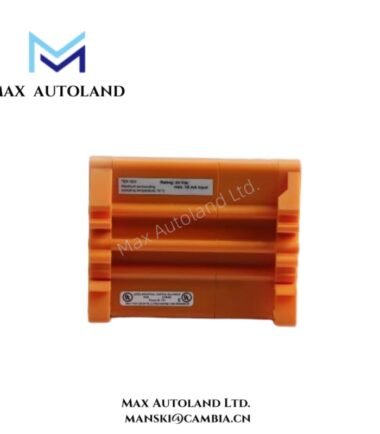

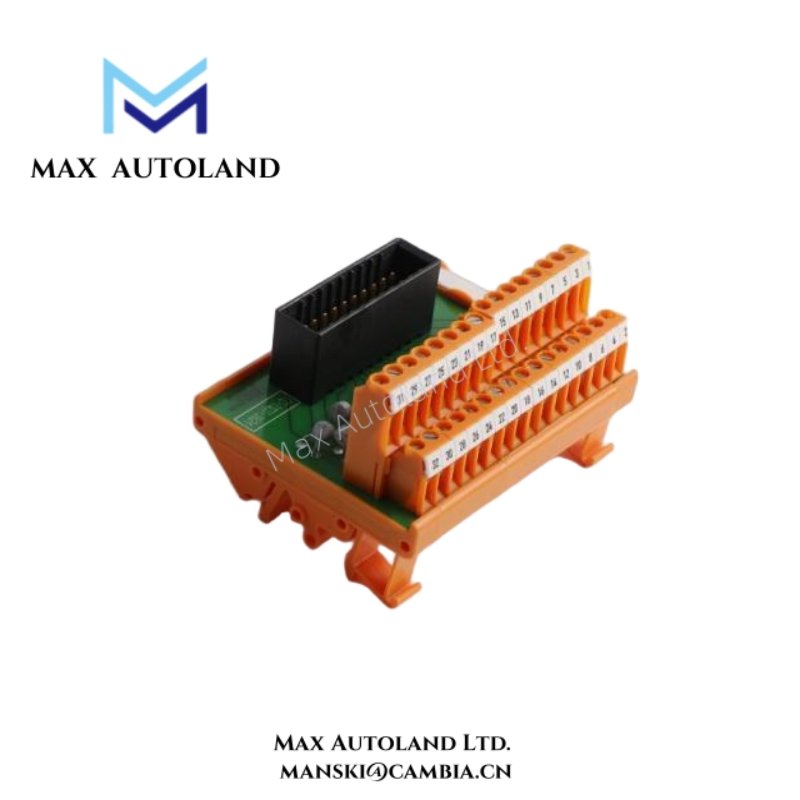

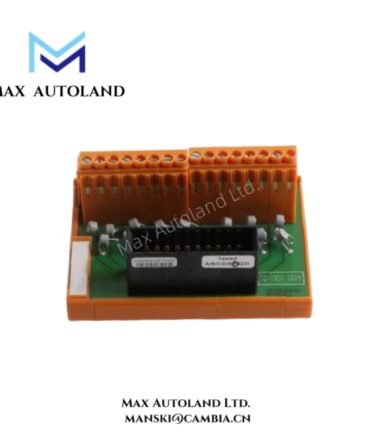

The Honeywell FC-TSDI-1624 Field Termination Assembly serves as a robust interface for FSC Series digital input modules. It enables reliable connection between system interconnection cables and external field wiring, ensuring high-integrity signal transmission. Moreover, the module supports safe, redundant digital inputs, facilitating industrial safety system integration and continuous monitoring. Its compact design and universal DIN rail compatibility allow efficient installation in diverse industrial environments.
Specification
| Parameter / Feature | Specification / Detail |
|---|---|
| Model Number | FC-TSDI-1624 |
| Module Type | Field Termination Assembly for Safe Digital Inputs |
| Number of Channels | 16 |
| Input Type | Safe Digital Input (SDI) |
| Nominal Input Voltage | 24 V DC |
| Maximum Input Voltage | 36 V DC (IEC 1010, Overvoltage Category 3) |
| Maximum Input Current per Channel | 1.5 A (Depends on connected input module) |
| Input Wiring Termination | Screw terminals |
| Maximum Wire Diameter | 2.5 mm² (AWG 14) |
| Wire Strip Length | 7 mm (0.28 in) |
| Tightening Torque | 0.5 Nm (0.37 ft-lb) |
| Mounting | DIN EN rails TS32 / TS35 × 7.5, universal snap-in |
| Used Rail Length | 61 mm (2.40 in) |
| Module Dimensions | 60 × 70 × 58 mm (L × W × H) |
| Weight | Approximately 0.15 kg |
| Approvals / Certifications | CE, TUV, UL, CSA, FM |
| Safety Compliance | Compatible with FSC Series Safety Controllers |
| Operating Temperature Range | 0 °C to 60 °C |
| Storage Temperature Range | –40 °C to +85 °C |
| Relative Humidity | 5–95% (non-condensing) |
| Environmental Protection | IEC 60529 IP20 (internal module protection) |
| Redundancy | Supports redundant configuration with paired modules |
| Interface | Connects via SICC-0001/Lx system interconnection cable |
| LED Indicators | Channel status LEDs for monitoring input signals |
| Mounting Orientation | Vertical or horizontal on standard DIN EN rail |
| Mechanical Shock / Vibration Resistance | Industrial standard vibration and shock resistant |
| Compliance Standards | IEC 61508 / SIL 2 or higher within FSC Safety system framework |
FAQ
Q1: What types of digital inputs does the FC-TSDI-1624 support?
A1: The module supports safe digital inputs (SDI) with 24 V DC nominal voltage and up to 16 channels.
Q2: Can this module be mounted on standard DIN rails?
A2: Yes, it has universal snap-in provision for TS32 and TS35 × 7.5 DIN rails.
Q3: Is the module suitable for SIL-compliant safety systems?
A3: Yes, it is fully compatible with FSC Series Safety Controllers for SIL 2 or higher applications.
Q4: What is the maximum wire size for connections?
A4: It supports wires up to 2.5 mm² (AWG 14) with a strip length of 7 mm.
