Overview

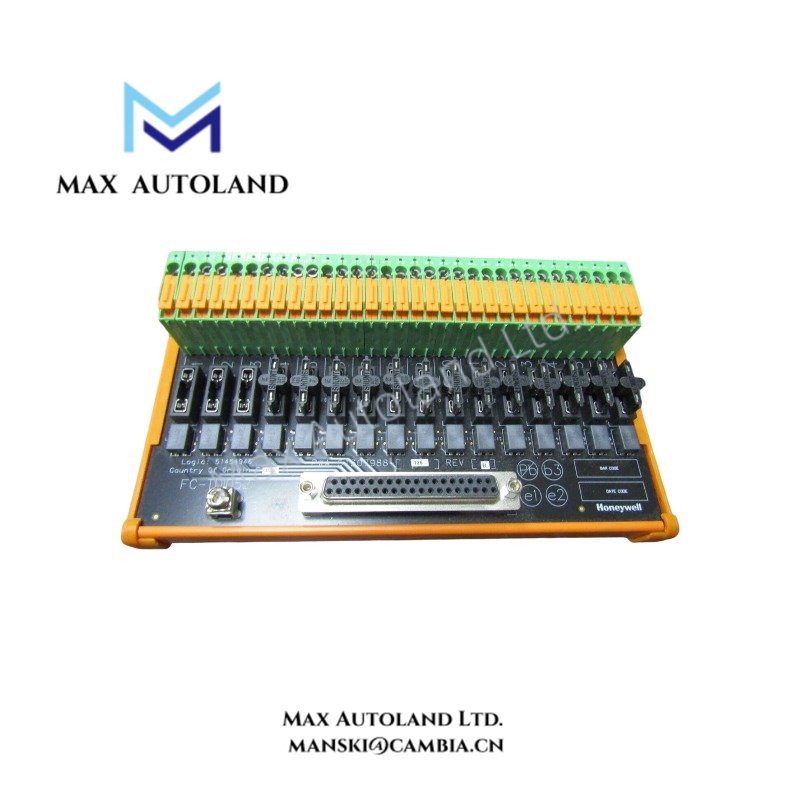

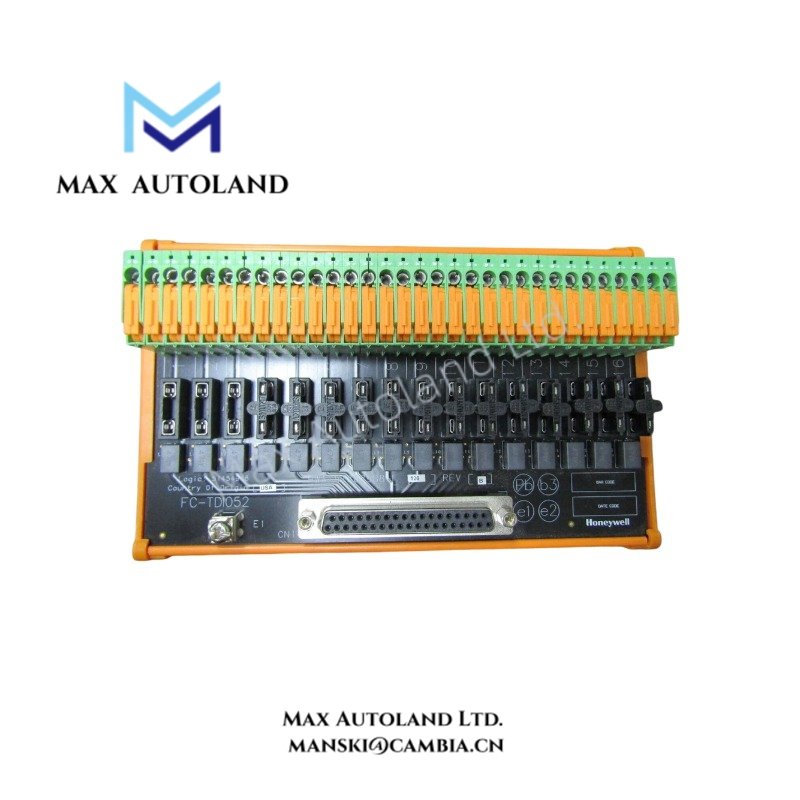

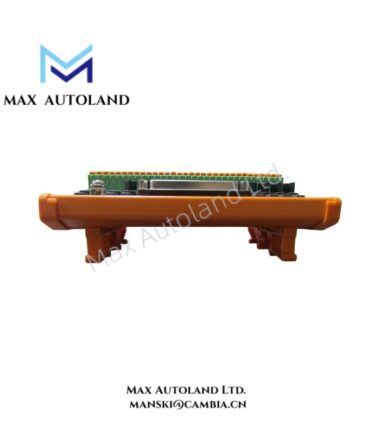

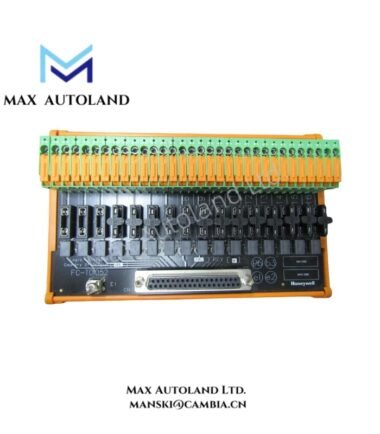

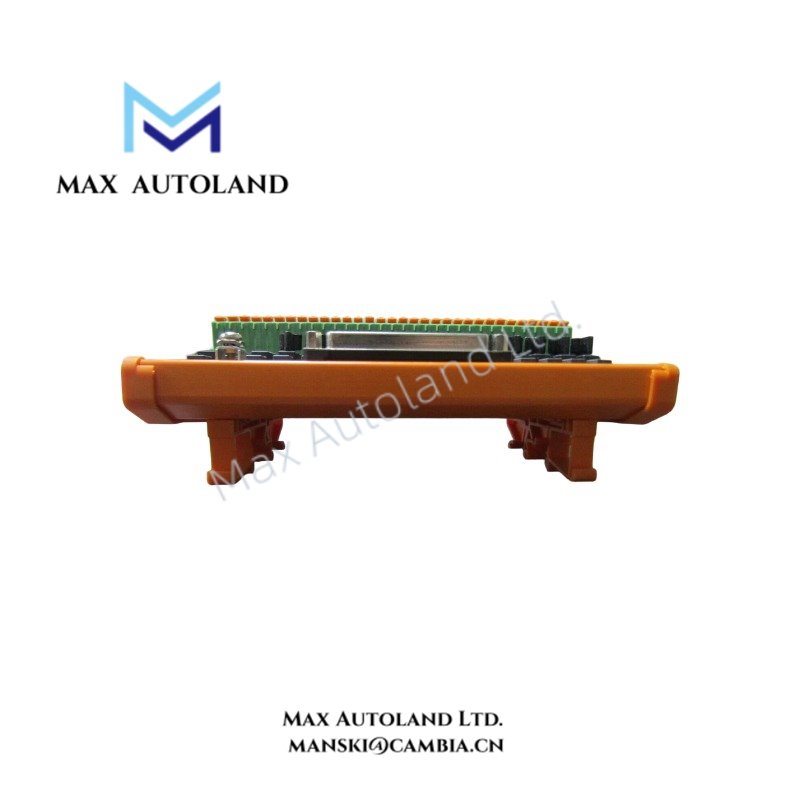

Configured for 24 VDC digital signal acquisition in Honeywell safety control systems, the Honeywell FC-TDI052 (51307988-176) (FC-TDI052 safety digital input module) monitors field contact and discrete signals. The module accepts 0-30 VDC input signals and provides a typical 5 ms response time with 1500 VDC channel-to-system isolation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FC-TDI052 |
| Part Number | 51307988-176 |
| Brand | Honeywell |
| Origin | Not specified in the provided data |
| Product Type | Safety Digital Input Module |
| Nominal Operating Voltage | 24 VDC |
| Input Voltage Range | 0-30 VDC |
| Input Current | Approx. 6 mA per channel at 24 VDC |
| Response Time | 5 ms typical |
| Channel-to-System Isolation | 1500 VDC |
| Power Supply | 24 VDC nominal |
| Allowed Supply Range | 18-32 VDC |
| Operating Temp | -40 deg C to +70 deg C |
| Storage Temperature | -40 deg C to +85 deg C |
| Relative Humidity | 5% to 95% RH, non-condensing |
| Safety Compliance | SIL 3 capable; IEC 61508 |
Channel Isolation and Digital Signal Acquisition
The FC-TDI052 processes discrete field signals within the specified 0-30 VDC input range. At a 24 VDC input condition, each channel draws approximately 6 mA.
The module provides 1500 VDC channel-to-system isolation. This isolation separates the field-side digital signal circuits from the system-side interface and limits direct electrical coupling between the two domains.
The specified 5 ms typical response time defines the module’s digital input response under the stated operating conditions. The module uses a nominal 24 VDC supply, with an allowed supply range of 18-32 VDC.
For safety instrumented applications, the supplied data identifies SIL 3 capability and IEC 61508 compliance. These characteristics define the stated safety-system design context without adding unspecified redundancy or diagnostic functions.
Frequently Asked Questions
Q: What input voltage range does the FC-TDI052 accept?
A: The specified digital input range is 0-30 VDC.
Q: What isolation does the FC-TDI052 provide?
A: The module specifies 1500 VDC channel-to-system isolation.
Q: What supply voltage does the FC-TDI052 require?
A: The nominal supply voltage is 24 VDC, with an allowed range of 18-32 VDC.
Field Installation Guidelines
Install the FC-TDI052 according to the applicable Honeywell system hardware documentation and specified mounting arrangement.
Verify that the module receives a 24 VDC supply within the stated 18-32 VDC range before connecting field inputs.
Route digital input wiring separately from high-voltage AC conductors and high-energy switching circuits where practical. Use appropriate cable shielding and grounding practices when the installation environment requires additional noise control.
Verify field signal polarity and terminal identification before energization. Confirm that each connected digital input remains within the specified 0-30 VDC input range.
Maintain appropriate separation between field wiring and system-side wiring to preserve the specified isolation architecture. Before commissioning, check terminal tightness, conductor integrity, supply voltage, and input signal levels.
