Overview

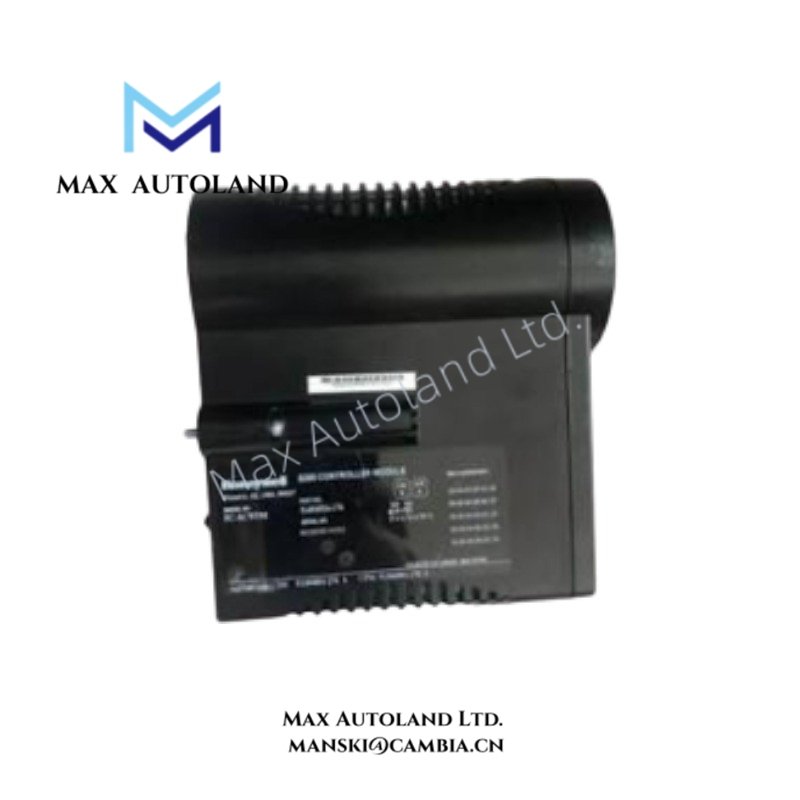

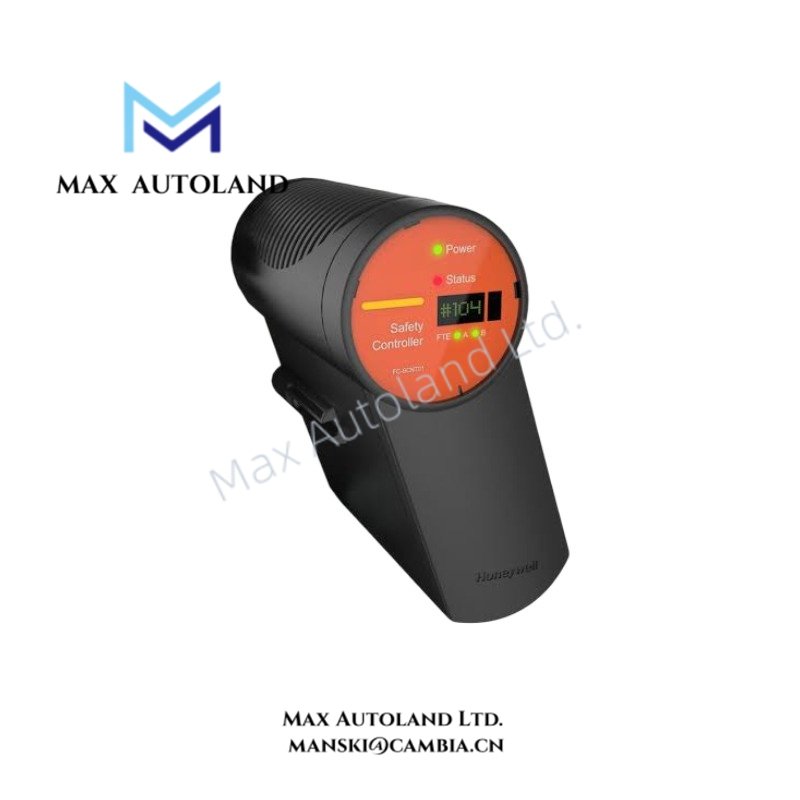

Configured for safety logic execution and redundant controller operation in Honeywell SC S300 Safety Manager systems, the Honeywell FC-SCNT02 51460114-176 (FC-SCNT02 SC S300 Safety Controller) provides controller-level processing for Safety Instrumented System (SIS) and Emergency Shutdown (ESD) functions. It can serve as a spare for FC-SCNT01 and supports redundant operation with an FC-SCNT01 controller.
Suffix Breakdown & Model Matrix
The supplied data identifies FC-SCNT02 as the base model and 51460114-176 as the spare/ordering model. No additional suffix coding or option matrix is specified.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FC-SCNT02 51460114-176 |
| Spare Model | 51460114-176 |
| Product Type | SC S300 Safety Controller |
| Brand | Honeywell |
| Origin | USA |
| Weight | 0.45 kg |
| Dimensions | 7.2 x 15.6 x 16.4 cm estimated shipping size |
| Operating Temp | -10 deg C to +60 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Operating Voltage | 24 VDC |
| Power Consumption | <15 W |
| Controller Configuration | Redundant operation with FC-SCNT01 |
| Replacement Function | Spare and online replacement for FC-SCNT01 |
| Memory | Increased memory capacity compared with FC-SCNT01 |
| Tariff Code | 8537101190 |
Safety Controller Architecture
The FC-SCNT02 executes safety control logic within the SC S300 Safety Manager architecture. Its specified replacement relationship with the FC-SCNT01 allows the FC-SCNT02 to function as a spare controller for existing installations.
The controller also supports redundant operation with an FC-SCNT01. Therefore, the two controller types can form a redundant SMSC controller configuration where the installed system architecture supports this arrangement.
The FC-SCNT02 provides increased memory capacity compared with the FC-SCNT01. This allows the controller hardware to accommodate safety applications with higher memory requirements, subject to the applicable Safety Manager configuration and system engineering limits.
For replacement work, verify the installed controller configuration, firmware compatibility, system revision, and approved replacement procedure before placing the FC-SCNT02 into service.
Frequently Asked Questions
Q: Can the FC-SCNT02 replace an FC-SCNT01?
A: Yes. The supplied specifications identify the FC-SCNT02 as a spare and online replacement for the FC-SCNT01. Confirm system compatibility before replacement.
Q: Can the FC-SCNT02 operate with an FC-SCNT01 in a redundant configuration?
A: Yes. The supplied data specifies redundant operation between an FC-SCNT02 and an FC-SCNT01 in an SMSC controller configuration.
Q: What is the operating power requirement of the FC-SCNT02?
A: The controller operates at 24 VDC and has a specified power consumption of less than 15 W.
Field Installation Guidelines
Install the FC-SCNT02 in the designated Safety Manager controller position and verify mechanical seating before energizing the system. Confirm that the mounting hardware and controller connections are fully engaged.
Before replacement, isolate the applicable work area according to the approved site procedure. Verify the existing controller identification, system configuration, firmware compatibility, and redundancy state.
Route controller power and communication wiring separately from high-voltage switching conductors where the installation design requires segregation. Maintain clean cable routing and avoid unnecessary cable loops around controller hardware.
Verify the 24 VDC supply polarity and electrical condition before connection. Confirm that the supply wiring matches the approved system drawings.
After installation, check controller status indications and system diagnostics. For redundant configurations, verify controller synchronization and system status according to the approved Honeywell commissioning procedure.
Do not perform an online controller replacement unless the installed Safety Manager architecture and site procedure explicitly support the operation.
