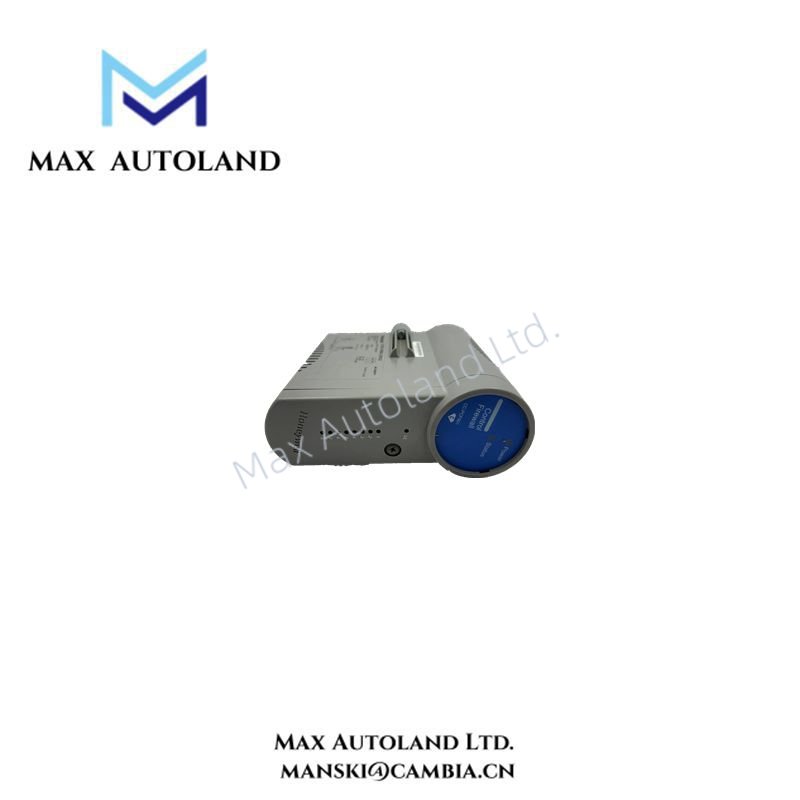

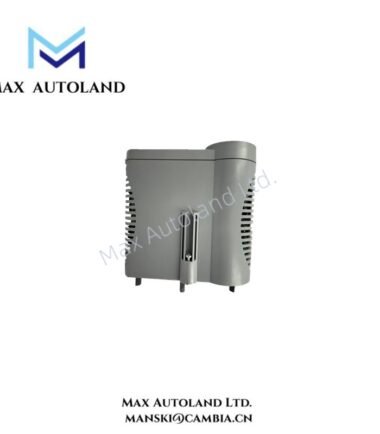

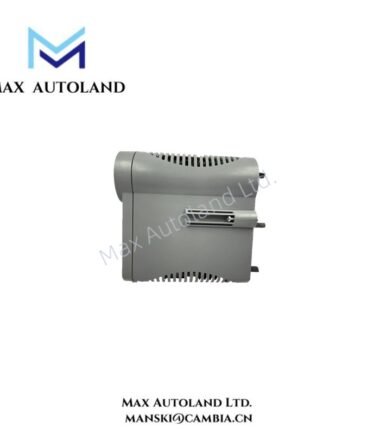

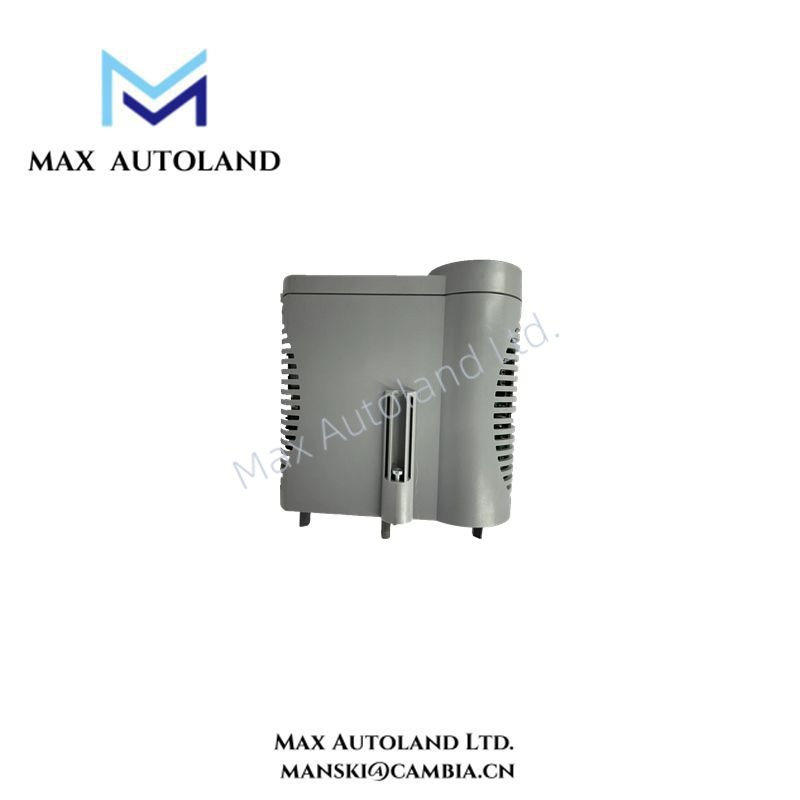

CC-PCNT01 51405046-175 Honeywell C300 Controller Module

Overview

The Honeywell CC-PCNT01 (51405046-175) C300 controller module operates within the Honeywell C300 control system to execute controller-level processing tasks. It has a specified 24 VDC supply rating of 0.311 A and a power consumption rating of 10-15 W. The module uses a 5 VDC power specification and supports operation within a temperature range of 0 deg C to 60 deg C.

Hardware Specifications

C300 Controller Power and System Integration

The CC-PCNT01 belongs to the Honeywell C300 controller platform. Its listed electrical data includes a 24 VDC supply rating of 0.311 A and a separate 5 VDC power specification. The relationship between these values requires confirmation against the manufacturer documentation before electrical connection or power-budget calculations.

For system integration, verify the module’s assigned controller position, supported chassis or mounting assembly, firmware compatibility, and system configuration against the applicable Honeywell documentation. Do not infer redundant operation, hot-swapping support, or specific communication interfaces from the model number alone.

Frequently Asked Questions (FAQ)

Q: What supply rating is listed for the CC-PCNT01?

A: The supplied specifications list 0.311 A at 24 VDC and a separate 5 VDC power specification. Confirm the applicable input and internal power requirements in the manufacturer’s documentation before connecting the module.

Q: What is the permitted operating temperature range?

A: The listed operating range is 0 deg C to 60 deg C. The storage range is -40 deg C to 85 deg C.

Q: Can the CC-PCNT01 be removed while the system is powered?

A: Hot-swapping support is not established by the supplied specifications. Check the applicable Honeywell C300 installation and maintenance instructions before removing or inserting the module.

Field Installation Guidelines

• Confirm the complete model number, CC-PCNT01, and spare number, 51405046-175, before installation.
• Verify the required mounting assembly and controller position against the Honeywell C300 hardware documentation.
• Check the supply voltage, current requirements, and power distribution arrangement before energizing the system.
• Keep signal and power wiring organized according to the system installation instructions. Maintain separation between low-level signal wiring and sources of electrical interference where applicable.
• Follow the manufacturer’s grounding and electrostatic discharge precautions when handling the module.
• Confirm controller configuration and firmware compatibility before commissioning.
• Do not remove or insert the module under power unless the manufacturer’s instructions explicitly permit this operation.
