Overview

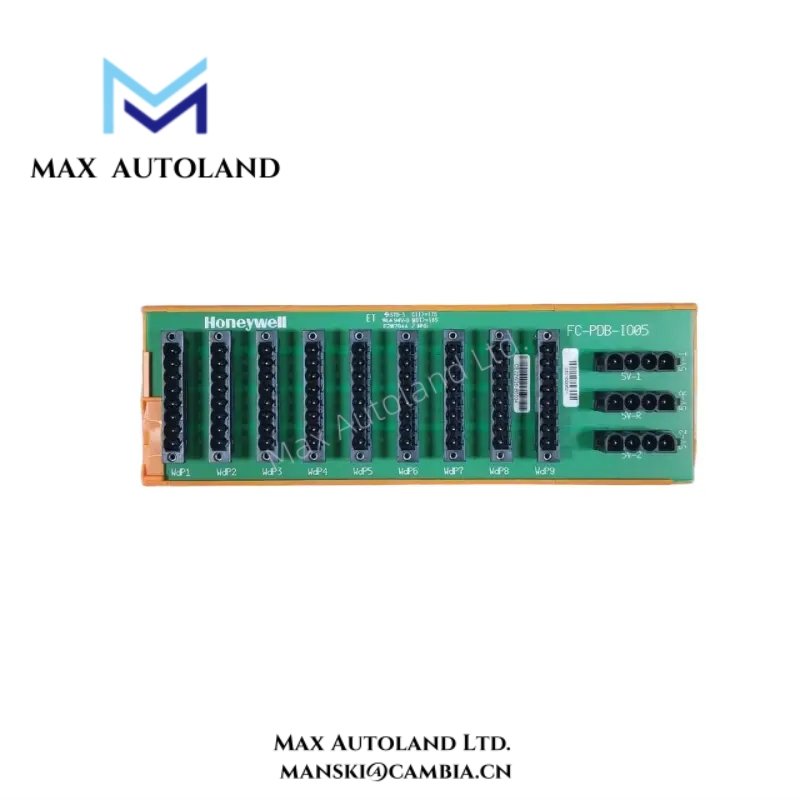

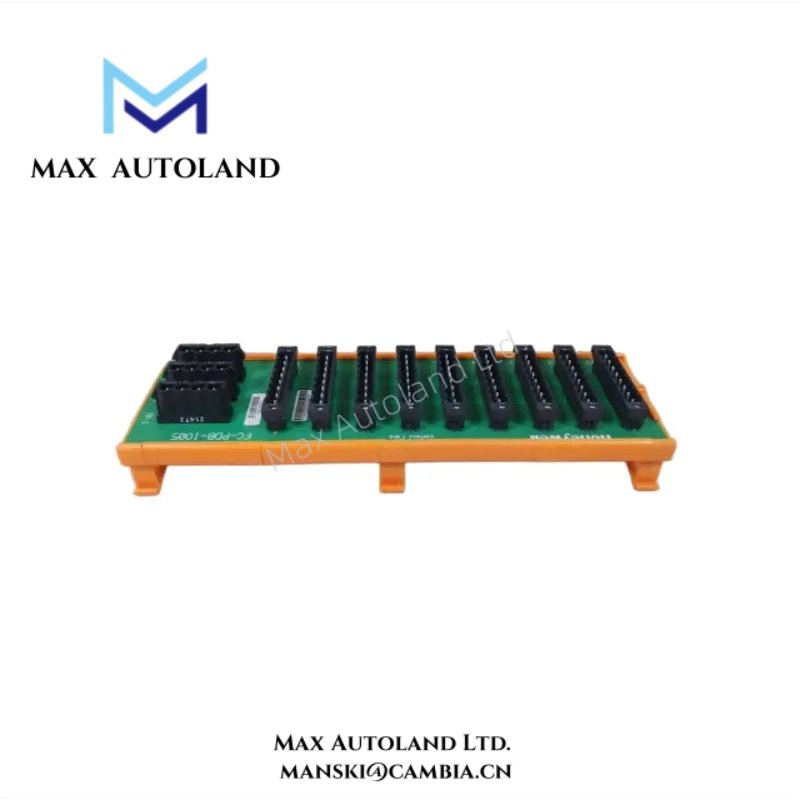

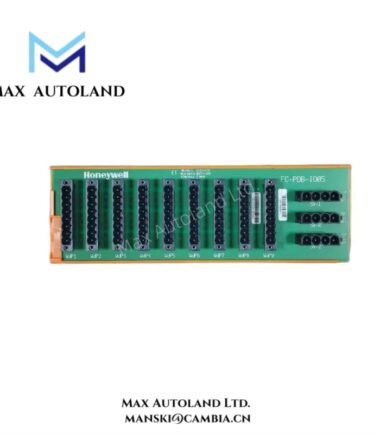

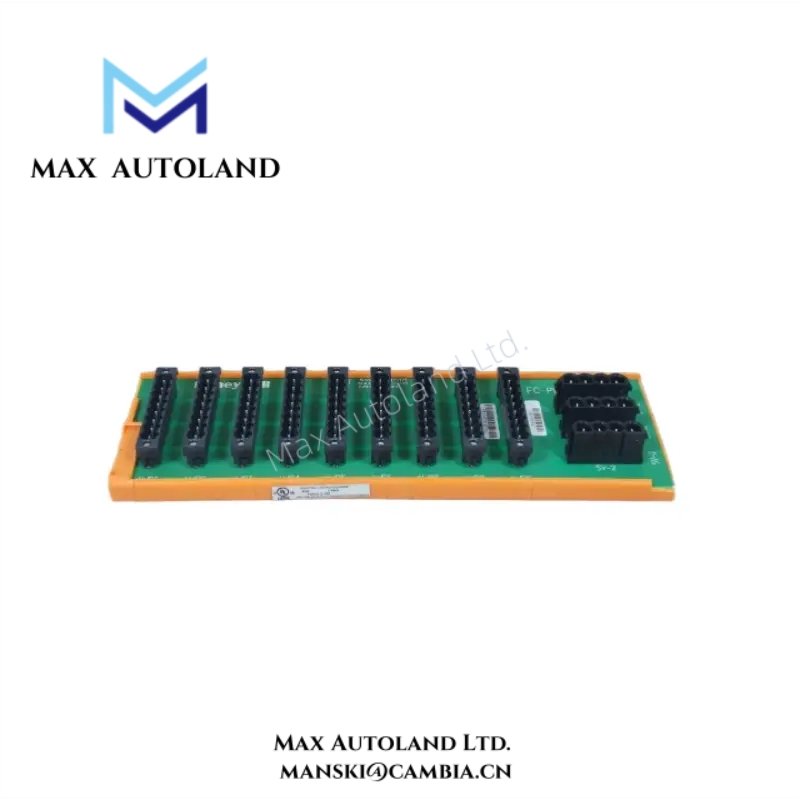

The FC-PDB-IO05 Honeywell FSC Series Power Distribution Board efficiently manages and distributes power to FSC safety modules within industrial control systems. Moreover, it supports redundant configurations, ensuring continuous operation even under partial system failures. Therefore, it plays a crucial role in maintaining system reliability and safety compliance.
Specification
| Parameter | Specification |
|---|---|
| Model | FC-PDB-IO05 |
| Manufacturer | Honeywell |
| Series | FSC (Fail Safe Controller) Series |
| Module Type | Power Distribution Board |
| Input Voltage | 24 V DC nominal |
| Maximum Output Current | 10 A per branch |
| Number of Output Branches | 5 independent branches |
| Protection | Fuse protection per branch |
| Indicators | LED for each branch status |
| Mounting | FSC chassis compatible or DIN rail |
| Dimensions (W × H × D) | Approx. 160 × 120 × 80 mm |
| Weight | Approx. 1.3 kg |
| Operating Temperature | –5 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5–95%, non-condensing |
| Typical Applications | Safety modules, redundant I/O, industrial process systems |
| System Compatibility | Honeywell FSC Series safety and control modules |
FAQ
Q1: How many output branches does the FC-PDB-IO05 support?
A1: The module provides 5 independent output branches with individual fuse protection.
Q2: What is the nominal input voltage?
A2: The FC-PDB-IO05 operates with a nominal 24 V DC input.
Q3: Is it compatible with all Honeywell FSC modules?
A3: Yes, it integrates directly with Honeywell FSC Series safety and I/O modules.
Q4: Can it operate in high-temperature industrial environments?
A4: Yes, the module supports –5 °C to +60 °C operating temperatures.
Q5: Are these units brand new and factory original?
A5: Yes, all FC-PDB-IO05 modules are original Honeywell, factory-new products.
Q6: What is the shipping and return policy?
A6: Shipping occurs within 3 days to 2 weeks depending on order size, with 30-day returns for quality issues.
