Overview

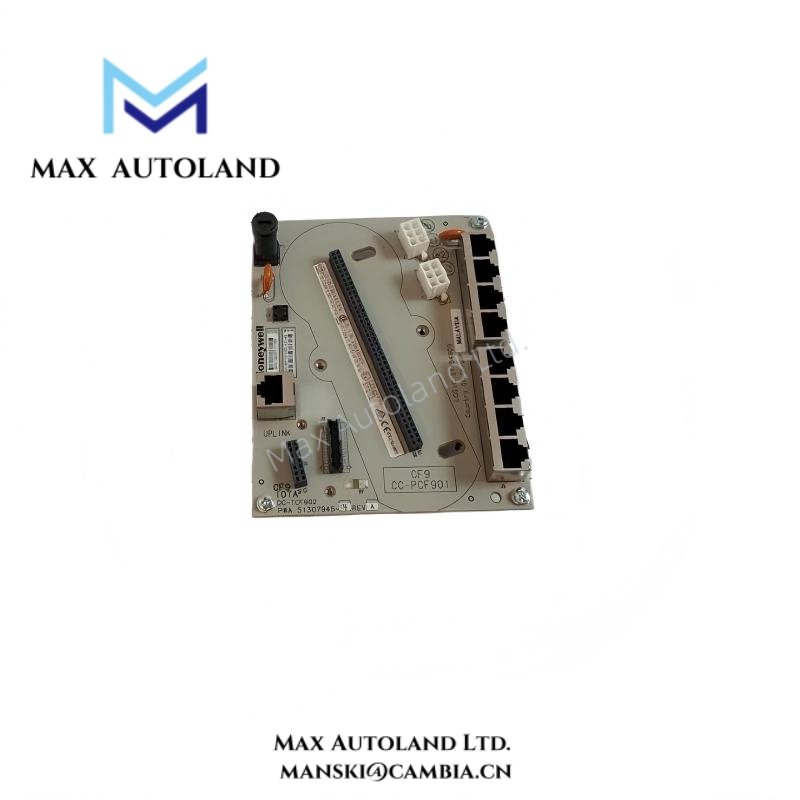

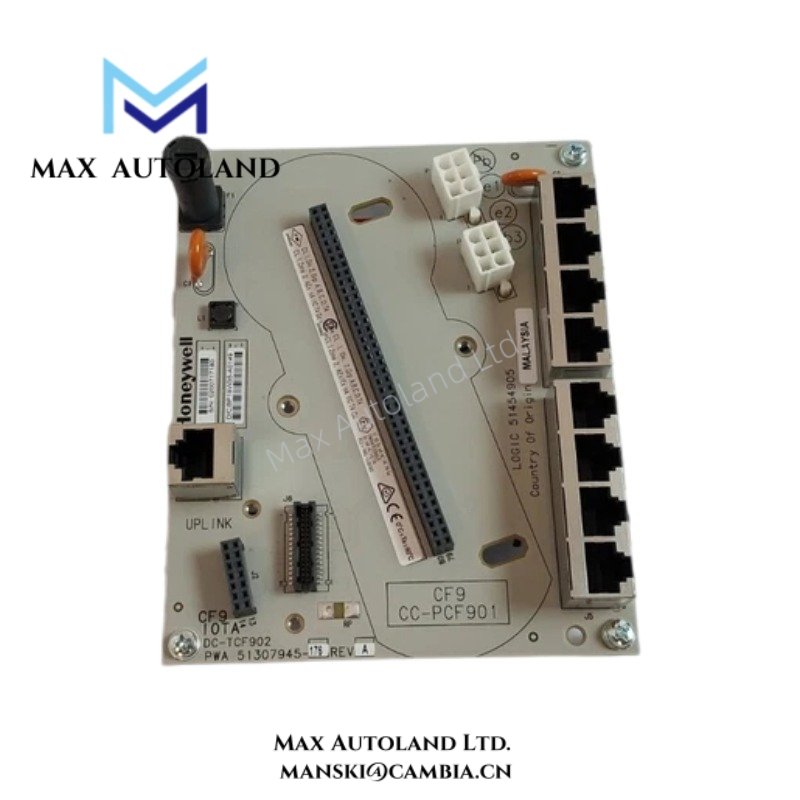

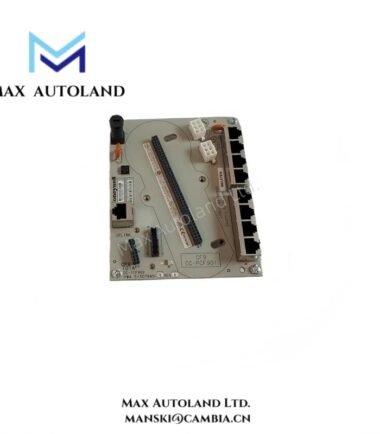

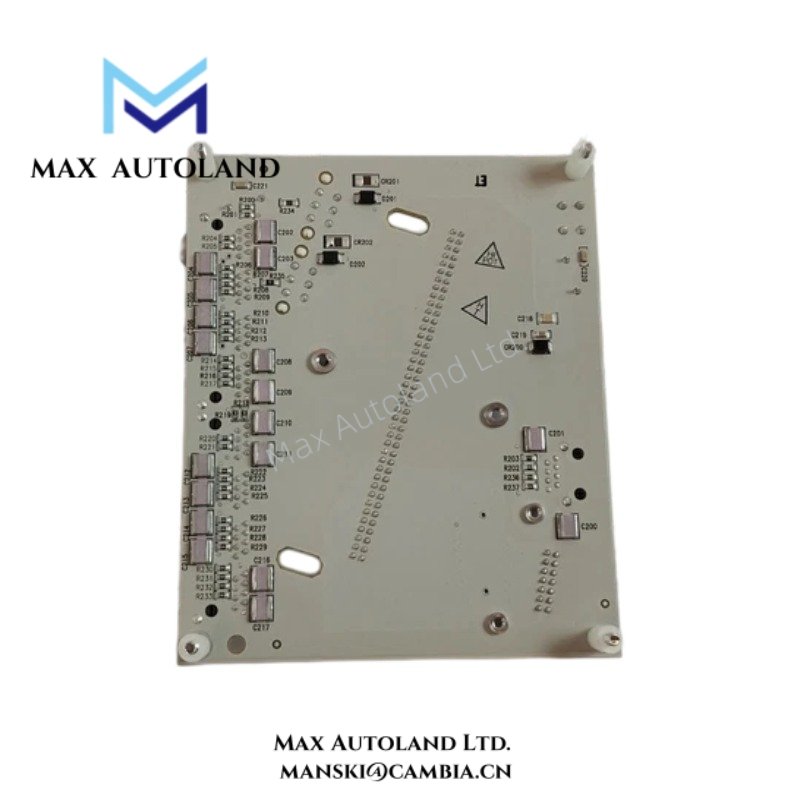

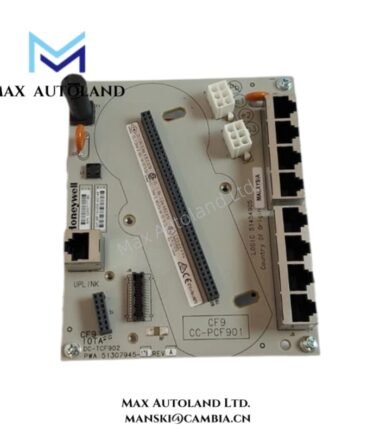

The DC-TCF902 51307945-176 input/output termination assembly provides stable field signal connection for industrial control systems.
Moreover, Honeywell designs the DC-TCF902 51307945-176 to support reliable wiring between field devices and control modules.
Additionally, the assembly ensures accurate signal transmission in demanding process automation environments.
Therefore, engineers rely on DC-TCF902 51307945-176 for consistent I/O connectivity and system stability.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model | DC-TCF902 51307945-176 |
| Manufacturer | Honeywell |
| Product Type | Input/Output Termination Assembly |
| Application | Industrial control system field wiring termination |
| System Compatibility | Honeywell DCS / Experion systems |
| Input Channels | Multi-channel I/O termination support (system dependent) |
| Output Channels | Multi-channel field output termination support |
| Interface Type | Terminal block / field wiring interface |
| Wiring Method | Screw-type industrial terminal connections |
| Signal Type | Digital and analog field signals |
| Voltage Rating | 24V DC typical industrial control voltage |
| Current Rating | Up to 1–2A per channel (configuration dependent) |
| Connection Type | Backplane-to-field wiring interface |
| Signal Integrity | Low-noise industrial signal transmission design |
| Power Supply | Backplane powered system integration |
| Power Consumption | Approx. 4–8 W |
| Energy Storage | None (passive termination assembly) |
| Dimensions | Approx. 220 mm × 140 mm × 60 mm |
| Weight | Approx. 0.8 kg |
| Mounting Type | Rack or panel-mounted installation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Protection Features | Surge protection and signal isolation support |
FAQ
Q1: What is the main function of the DC-TCF902 51307945-176?
A1: The DC-TCF902 51307945-176 provides secure input/output termination for industrial control wiring systems.
Q2: What systems is it compatible with?
A2: The DC-TCF902 51307945-176 is compatible with Honeywell DCS and Experion control systems.
Q3: Does it support both input and output signals?
A3: Yes, the DC-TCF902 51307945-176 supports both input and output field signal termination.
Q4: Is the product available in stock and how fast is shipping?
A4: The DC-TCF902 51307945-176 is brand new original with stock available, and shipping takes 3 days to 2 weeks.
Q5: Which logistics services do you use?
A5: We commonly use DHL and similar carriers to deliver the DC-TCF902 51307945-176 quickly and safely.
Q6: What if there is a quality issue after purchase?
A6: The DC-TCF902 51307945-176 supports a 30-day return policy if any quality issue occurs after delivery.
