Overview

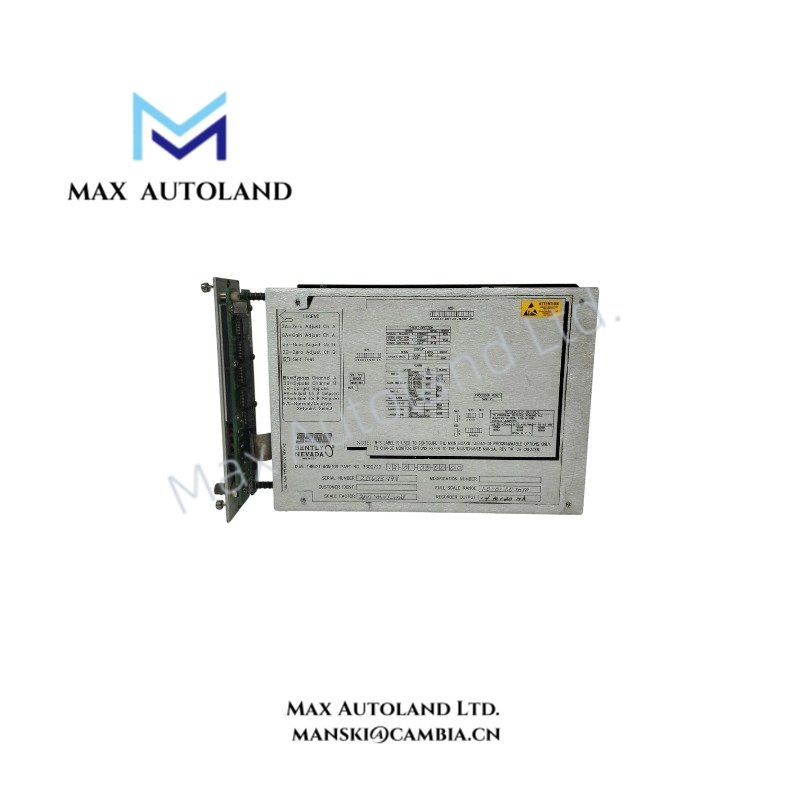

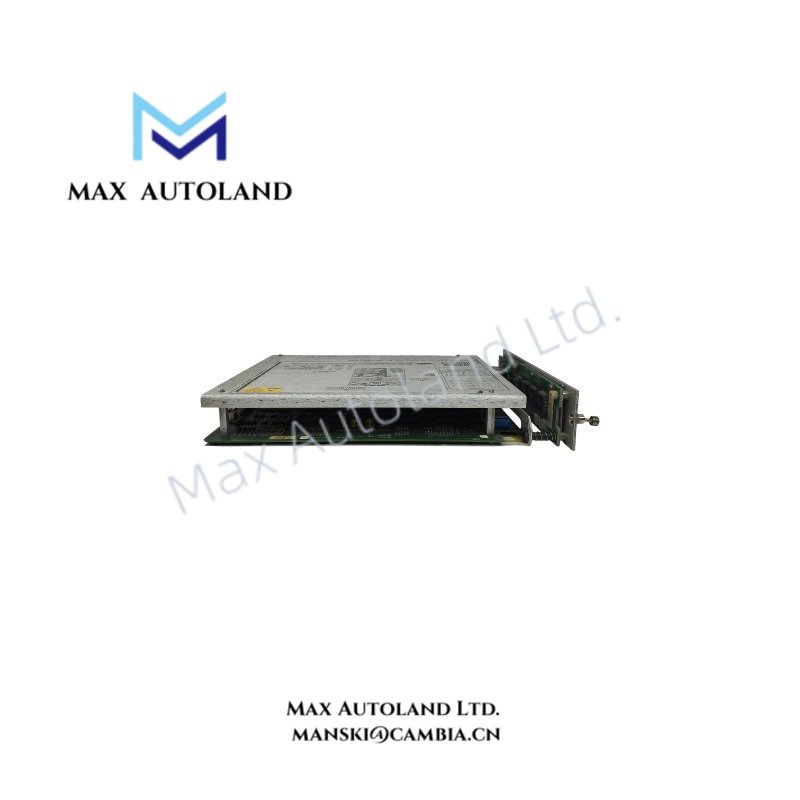

Bently Nevada 3300/53 Electronic Overspeed Detection Module
The Bently Nevada 3300/53-03-02-00-60-20-00-00-00, also cataloged as the 3300/53 Electronic Overspeed Detection Module, operates as a dedicated hardware component for speed signal acquisition and protection logic execution within the Bently Nevada 3300 System rack.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3300/53-03-02-00-60-20-00-00-00 |
| Brand | Bently Nevada (Baker Hughes) |
| Origin | USA |
| Module Type | Electronic Overspeed / Tachometer Monitoring Module |
| Series | 3300 Series Machinery Protection System |
| Primary Function | Overspeed detection, tachometer measurement, vibration-related monitoring |
| Input Type | Eddy-current proximity transducer signals |
| Compatible Sensors | Bently Nevada 3300 / 3300 XL Proximitor systems |
| Signal Input Range | -10 V to +10 V, 4-20 mA (configuration dependent) |
| Frequency Response | 0 Hz to 10 kHz |
| Output Signals | Buffered transducer outputs, 4-20 mA proportional outputs, relay contacts |
| Power Consumption | Supplied through 3300 rack backplane, -24 VDC nominal |
| Weight | Approx. 0.4 kg to 1.8 kg depending on housing configuration |
| Dimensions | Standard 3300 rack module format |
| Operating Temp | -20 deg C to +65 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Humidity | 5% to 95% non-condensing |
| Accuracy | +/- 1% of full scale |
| Mounting Method | 3300 Series rack slot installation |
| Certifications | CE, UL/cUL, ATEX Zone 2, IECEx, API 670 compliance |
Eddy-Current Probe Scaling and Rotor Dynamics Processing
The 3300/53 module processes proximity probe signals from eddy-current transducer systems and converts shaft movement signals into monitored speed and vibration parameters. It applies probe scaling characteristics to maintain measurement accuracy between the sensor output and rack processing circuits.
Furthermore, the module supports gap voltage validation using standard -10 VDC target references for eddy-current probe operation. This function verifies probe operating conditions before machinery protection logic evaluates measurement values.
The module also processes rotor dynamics related signals by analyzing rotational behavior, shaft position changes, and abnormal operating conditions. In addition, internal filtering functions reduce signal interference and cross-talk effects between measurement channels.
Frequently Asked Questions
Q: Does the 3300/53 module require a separate external power supply?
A: No. The module receives operating power through the Bently Nevada 3300 rack backplane. The rack provides the required DC supply connection for module operation.
Q: What type of sensors can connect to the 3300/53 module?
A: The module accepts input signals from Bently Nevada eddy-current proximity transducer systems, including 3300 and 3300 XL probe configurations.
Q: Can the module provide direct machine trip outputs?
A: Yes. The module provides relay contact outputs that can interface with external shutdown logic when configured alarm or overspeed conditions occur.
Field Installation Guidelines
Install the 3300/53 module in an available slot within a compatible Bently Nevada 3300 rack. Confirm that the rack backplane connection is fully engaged before applying system power.
Use shielded instrumentation cables for proximity probe signal wiring. Connect cable shields according to the plant grounding practice to reduce electromagnetic interference and measurement noise.
Route probe signal cables separately from high-voltage power conductors and switching circuits. Avoid parallel cable runs with motor feeders, variable frequency drive outputs, or other high-noise sources.
Verify the eddy-current probe gap voltage before commissioning. The probe system should operate within the specified gap voltage range, and the -10 VDC reference target can be used as a standard validation point.
Confirm relay output wiring, alarm settings, and system logic before placing the monitored machinery into service.
