Overview
Specification
| Parameter | Description |
|---|---|

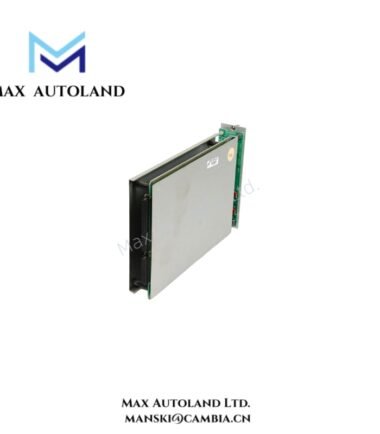

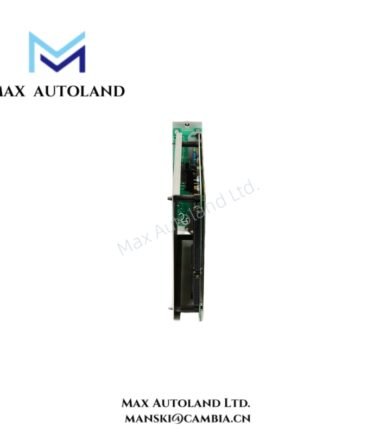

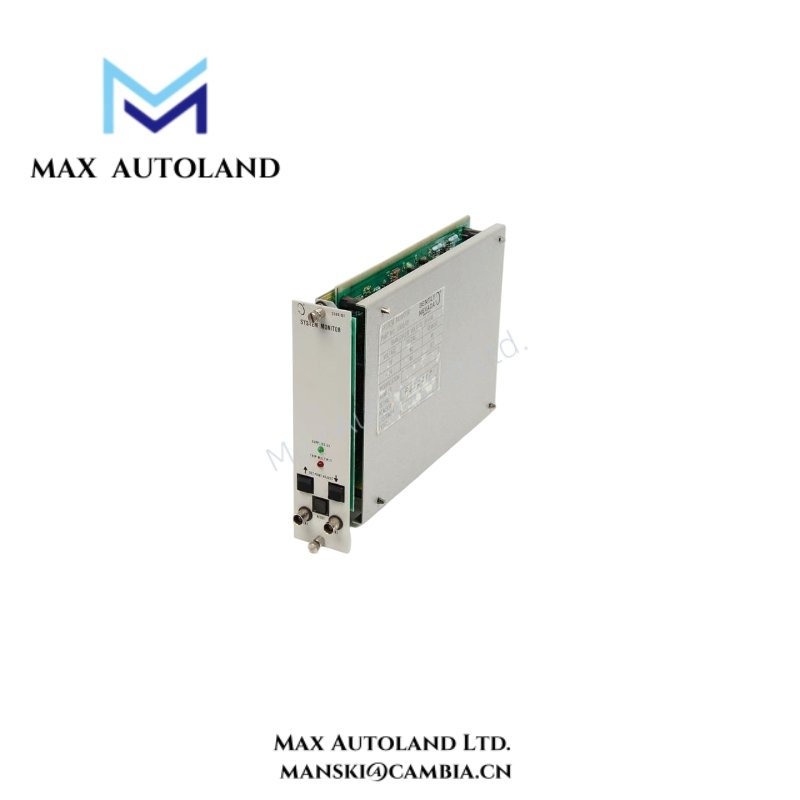

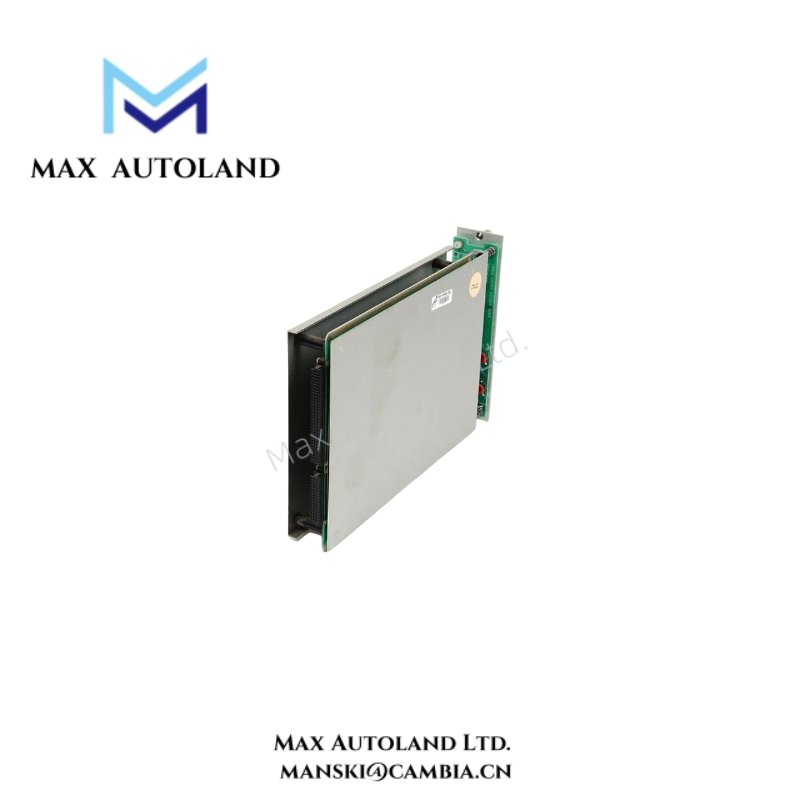

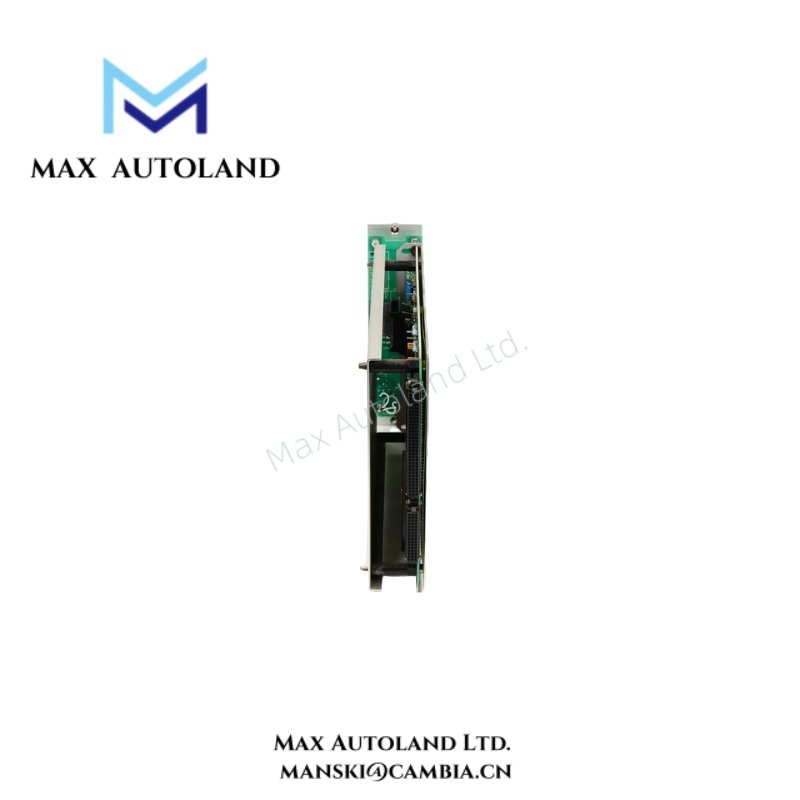

| Model | 3300/01 3300 XL NSv Proximity Transducer Monitor |
| Components | 3300 NSv Probe, 3300 NSv Extension Cable, 3300 XL NSv Proximitor Sensor |
| Measurement Types | Radial vibration, axial position, tachometer, Keyphasor phase reference |
| Probe Tip Diameter | 5 mm (0.197 in) |
| Linear Range | 1.0 mm (40 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Typical System Length | 5 m or 9 m |
| Target Material | AISI 4140 steel (typical) |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | -35 °C to +177 °C (-31 °F to +350 °F) |
| Typical Applications | Small shaft or limited clearance vibration measurement |
| Compatibility | Replaces 3300 RAM, 3000, and 7000 Series 190 Systems |
FAQ
A1: It’s specifically engineered for machines with limited mounting space, providing the same accuracy in smaller configurations.Q2: Can it replace older transducer systems?
A2: Yes. It directly replaces 3300 RAM, 3000, and 7000 series systems with minimal installation changes.
Q3: What type of machines benefit most from this system?
A3: Centrifugal compressors, small turbines, and other machines using fluid-film bearings where precise vibration monitoring is critical.
Q4: Is the system suitable for hazardous environments?
A4: Yes. When properly installed, it meets industrial safety and performance standards for Class 1, Division 2 locations.
