Overview

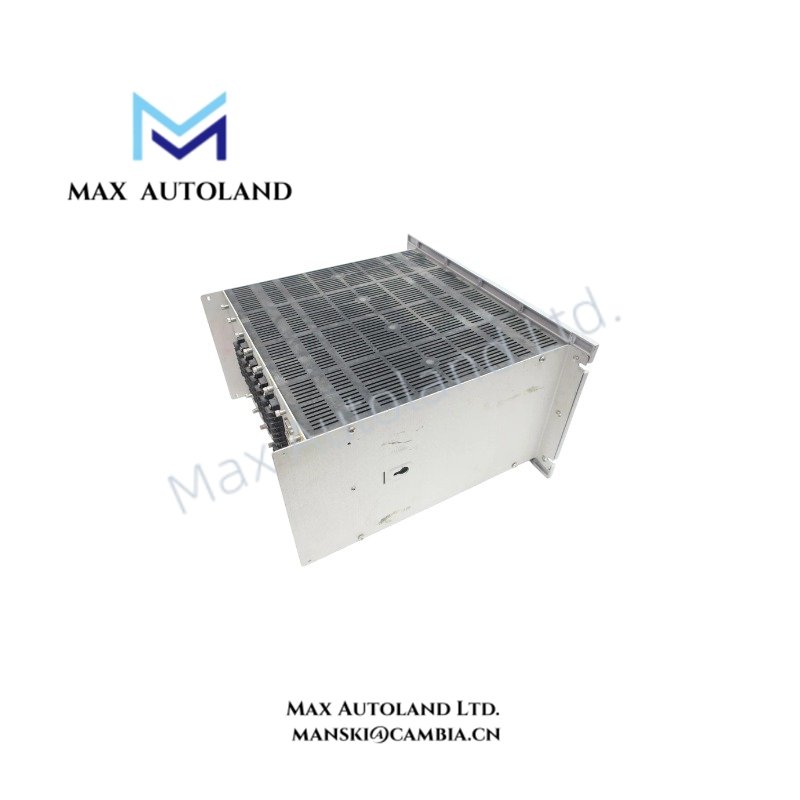

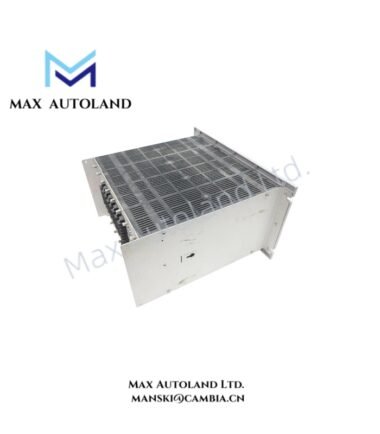

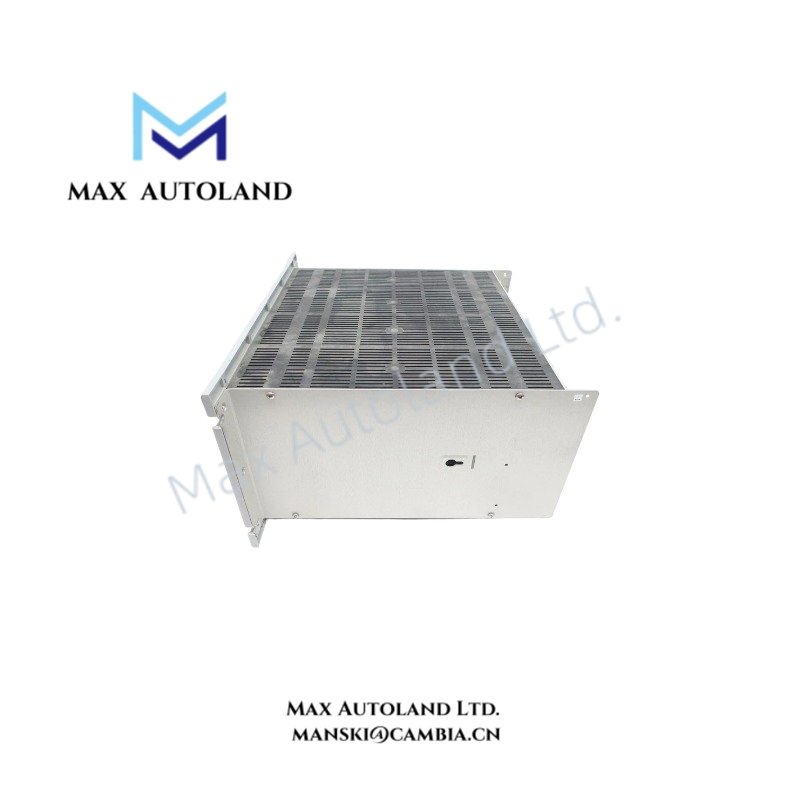

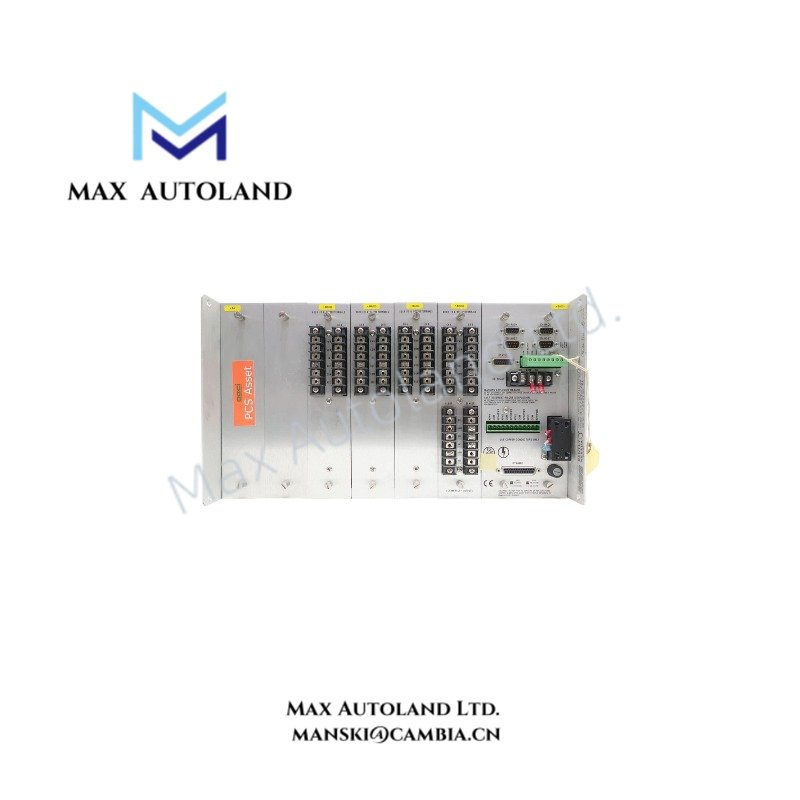

The Bently Nevada 3300/05, also cataloged as the 3300/05 System Rack, operates as a dedicated hardware component for module mounting, backplane power distribution, and signal routing within the Bently Nevada 3300 Machinery Monitoring System.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3300/05 System Rack |
| Brand | Bently Nevada |
| Origin | USA |
| Dimensions | 424.2 mm depth behind panel; 228.6 mm standard panel cutout height; width varies by rack position configuration |
| Operating Temp | -20 deg C to +65 deg C |
| Power Consumption | Supplied through installed 3300 system power supply module; rack consumption depends on installed modules |
| Product Type | System Rack / Mainframe |
| Rack Capacity | 4, 6, 8, 10, 12, or 14 monitor positions |
| Mounting Options | Panel Mount, 19-inch EIA Rack Mount, Weatherproof Housing |
| Construction Material | Injection-molded conductive anti-static resin |
| Backplane Function | Provides module power distribution and internal signal routing without point-to-point wiring |
| Slot Allocation | Position 1 Power Supply; Position 2 System Monitor; Positions 3 to 14 Monitoring Modules |
| Hazardous Area Approval | CSA / NRTL / C Class I Division 2 Groups A, B, C, D; ATEX II 3 G Ex nC [L] IIC options |
Eddy-Current Signal Integration and Rack Backplane Architecture
The Bently Nevada 3300/05 System Rack supports mechanical monitoring signal integration by providing a structured backplane interface between proximity monitoring modules, system power, and communication functions. In addition, the rack design maintains signal routing separation to reduce wiring complexity and improve module replacement procedures.
The rack supports Bently Nevada TSI applications where installed monitoring modules process eddy-current probe signals, including probe scaling and gap voltage validation requirements. Therefore, technicians can maintain consistent signal paths between field probes and monitoring electronics during installation and maintenance activities.
The conductive anti-static rack material controls electrostatic discharge exposure. Furthermore, the modular slot structure allows vibration, thrust position, temperature, and other 3300 series monitor modules to operate within a common mechanical assembly.
Frequently Asked Questions
Q: Does the 3300/05 System Rack contain monitoring measurement circuits?
A: No. The rack provides mechanical mounting, backplane power distribution, and signal routing. Individual 3300 monitoring modules perform measurement and alarm processing functions.
Q: Can any 3300 series monitor module be installed in all rack positions?
A: No. Position 1 is reserved for the system power supply, and position 2 is reserved for the system monitor. Positions 3 through 14 accept compatible monitoring modules.
Q: Does the rack require internal field wiring between front modules and rear terminals?
A: No. The backplane architecture eliminates internal point-to-point wiring between front monitor positions and rear module interfaces.
Field Installation Guidelines
- Install the rack on a rigid panel, standard 19-inch EIA rack structure, or approved weatherproof enclosure according to the selected mounting option.
- Maintain sufficient rear clearance for cable routing and connector removal during maintenance activities.
- Connect system grounding according to industrial control cabinet grounding practices to reduce electrostatic discharge and electrical noise.
- Route probe signal cables separately from high-voltage power cables to minimize electromagnetic interference.
- Verify that installed monitoring modules match the configured rack slot allocation before applying system power.
- For hazardous area installations, confirm that the selected rack configuration and enclosure meet the applicable CSA or ATEX requirements.
