Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 123M4610 |
| Brand | Bently Nevada |
| Product Type | USB Communication Cable |
| Origin | USA |
| Dimensions | 10 ft (approximately 3.0 m) cable length |
| Power Consumption | Passive cable assembly; no external power requirement |
| Connector Type | USB Type-A to USB Type-B |
| Interface Application | Connection between engineering computer and 3500/22M Transient Data Interface (TDI) Module |
| System Compatibility | Bently Nevada 3500 Machinery Protection System |
| Cable Function | Configuration communication, firmware support, and machinery data transfer |
| Isolation Feature | Signal isolation for reduction of ground loop effects between rack and external computer |
Machinery Monitoring Communication and Signal Isolation Characteristics

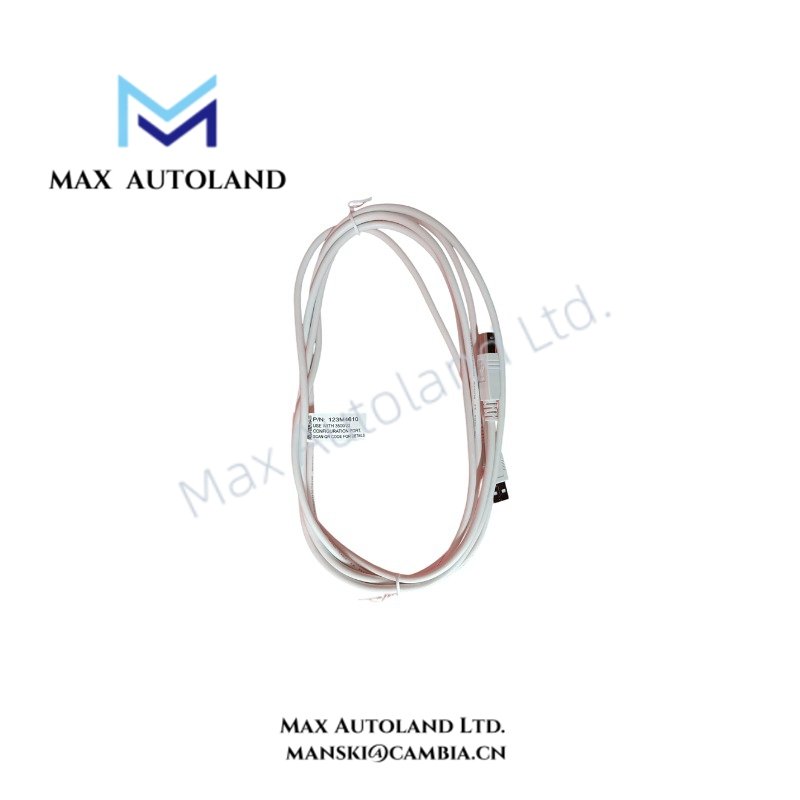

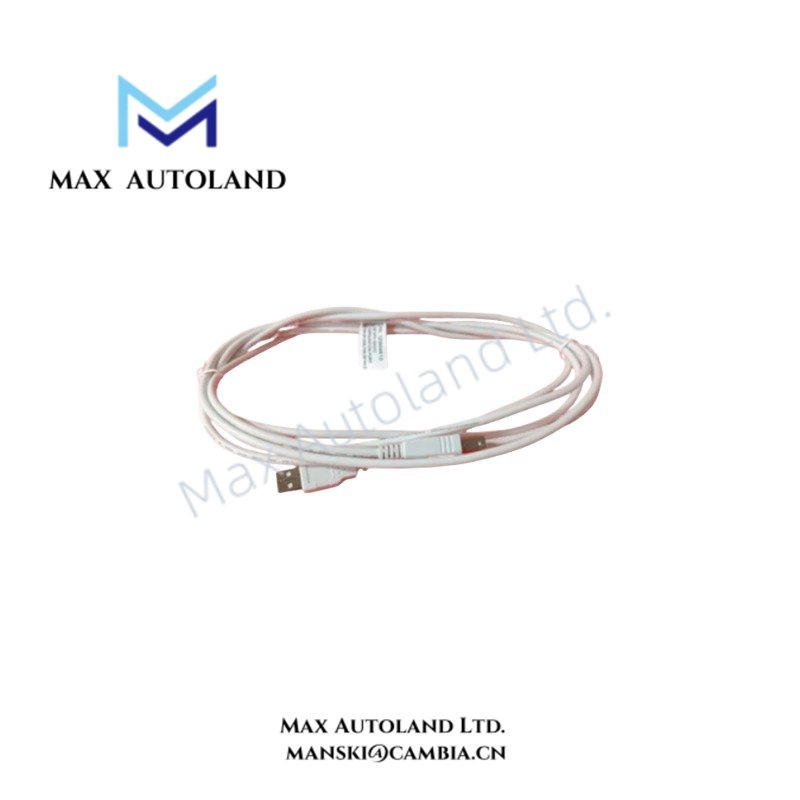

The Bently Nevada 123M4610 provides the physical communication link between a computer workstation and the 3500/22M Transient Data Interface module. Therefore, it supports configuration access, transient data retrieval, and diagnostic communication functions within the 3500 rack environment.
In addition, the cable assembly incorporates signal isolation characteristics that help separate the machinery monitoring rack reference from external computer grounding conditions. This configuration reduces potential ground loop interference during field service operations.
For Bently Nevada machinery monitoring applications, communication integrity supports vibration analysis workflows, including rotor dynamics evaluation, eddy-current probe scaling verification, and gap voltage validation procedures. The cable interface allows engineers to access stored machinery condition data without affecting the installed monitoring channels.
Frequently Asked Questions
Q: What module is the Bently Nevada 123M4610 designed to connect with?
A: The 123M4610 is designed for communication between a computer and the Bently Nevada 3500/22M Transient Data Interface (TDI) Module through the front panel USB interface.
Q: Does the 123M4610 require an external power supply?
A: No. The 123M4610 is a passive USB communication cable assembly and does not require an external power source.
Q: Can the cable be used for machinery diagnostic data transfer?
A: Yes. The cable supports communication functions required for configuration operations, steady-state data retrieval, and transient machinery data access through compatible 3500 system software.
Field Installation Guidelines
- Connect the USB Type-B connector to the 3500/22M TDI front panel interface and connect the USB Type-A connector to the engineering computer.
- Route the cable away from high-current power conductors, motor feeders, and strong electromagnetic interference sources.
- Maintain proper cable separation from AC power wiring to reduce induced electrical noise.
- Verify connector seating before performing configuration or diagnostic communication.
- Use the cable only with supported Bently Nevada 3500 system interfaces and approved configuration software.
- During installation, maintain appropriate grounding practices between the machinery monitoring rack and external computing equipment.
