Overview

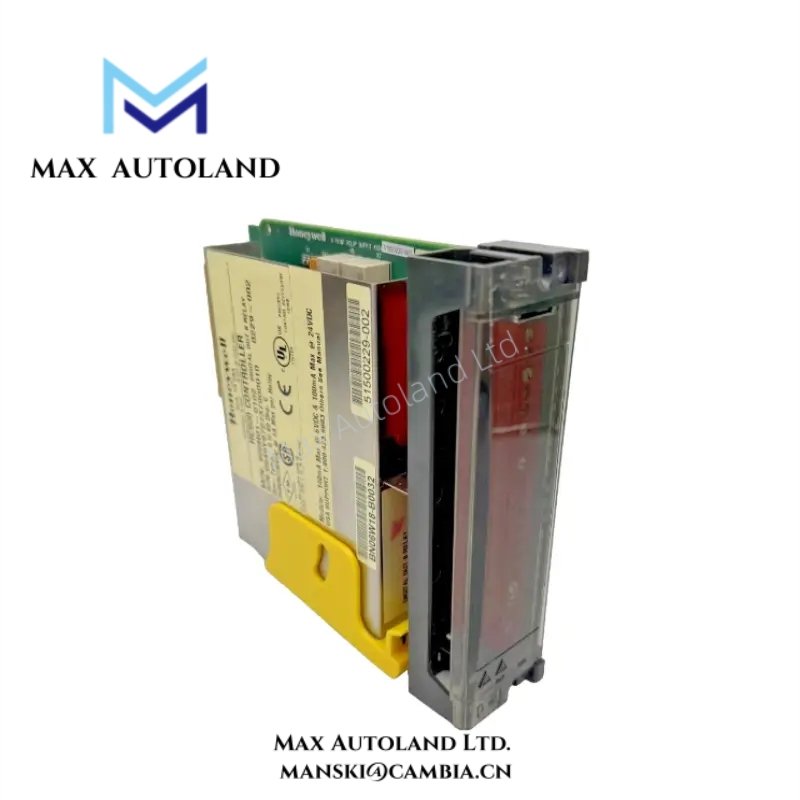

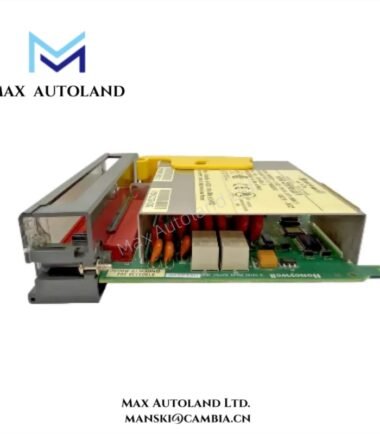

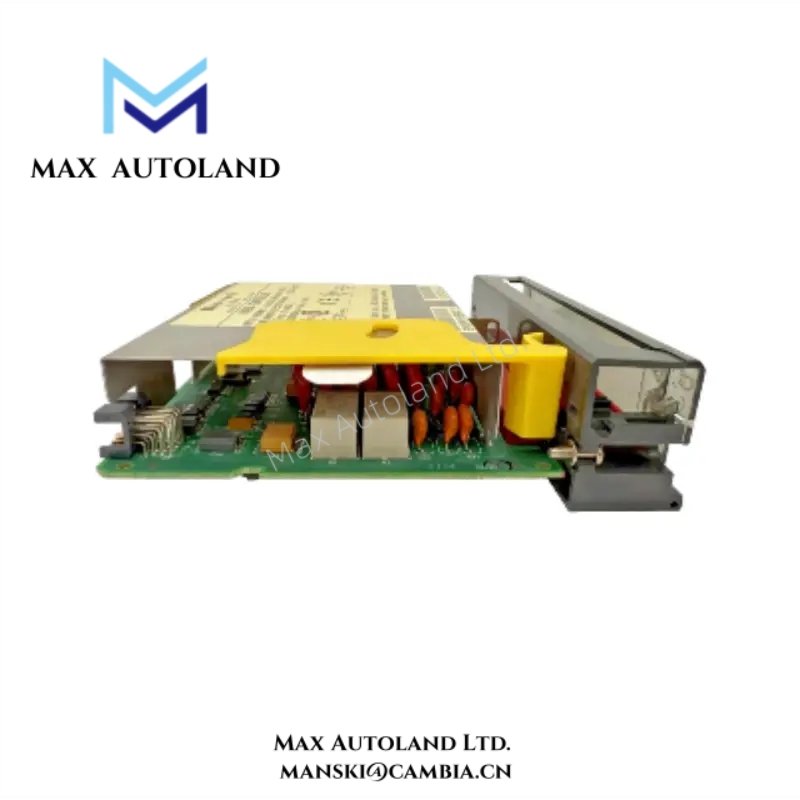

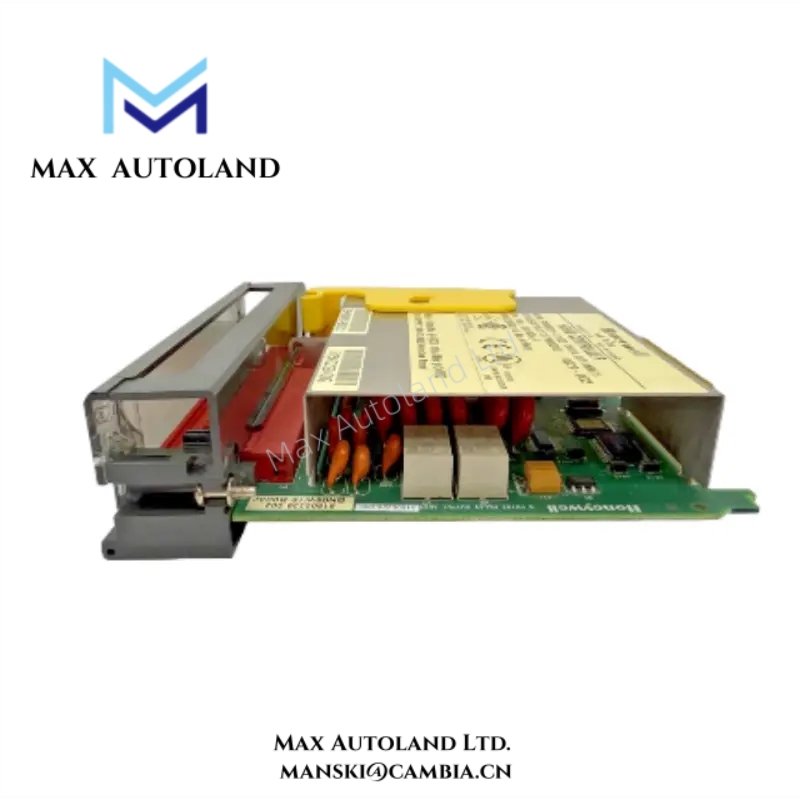

The Honeywell 900H01-0102 module provides reliable digital relay output for FSC and HC900 control systems.
It controls external devices such as alarms, solenoids, and actuators, therefore enabling precise process management.
Moreover, the module integrates seamlessly with FSC racks, ensuring flexible system configuration and scalability.
Its rugged design tolerates industrial vibrations, EMI, and temperature variations, ensuring continuous long-term operation.
Engineers select this module to maintain deterministic digital output in critical safety and process control applications.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Product Series | FSC / HC900 |
| Model Number | 900H01-0102 |
| Order Reference | 900H01-0102 |
| Module Type | Digital Relay Output Module |
| Primary Function | Controls external devices such as alarms, actuators, and solenoids |
| Output Channels | Multiple digital relay outputs |
| Output Types | Form A (normally open) or Form C (changeover) relays |
| Load Rating | Rated for industrial loads per relay specifications |
| Isolation | Galvanic isolation between outputs and controller |
| Diagnostics | Per-channel status monitoring for maintenance and fault detection |
| System Compatibility | Honeywell FSC controllers and HC900 systems |
| Installation Method | Rack-mounted plug-in module |
| Mechanical Design | Modular, field-replaceable |
| Operating Temperature | -20°C to +70°C |
| Environmental Tolerance | Vibration, EMI, and temperature resilience for industrial use |
| Power Supply | Supplied via FSC/HC900 backplane |
| Power Consumption | Optimized for continuous operation |
| Typical Industries | Oil and gas, chemical, power generation, manufacturing |
| Reliability | Long-term operation in safety-critical control networks |
| Lifecycle Support | Honeywell spare parts, service, and documentation available |
FAQ
Q1: What is the primary purpose of the Honeywell 900H01-0102 module?
A1: It provides digital relay outputs to control alarms, actuators, and solenoids in FSC systems.
Q2: How many relay outputs does the module support?
A2: The module provides multiple relay outputs configurable as Form A (NO) or Form C (changeover).
Q3: Does it provide diagnostics?
A3: Yes, each output includes status monitoring for rapid troubleshooting and preventive maintenance.
Q4: Can it operate in harsh industrial environments?
A4: Yes, it tolerates vibration, EMI, and temperature extremes for reliable long-term operation.
Q5: Which industries typically use this module?
A5: Typical applications include oil and gas, chemical, power generation, and manufacturing industries.
