Overview

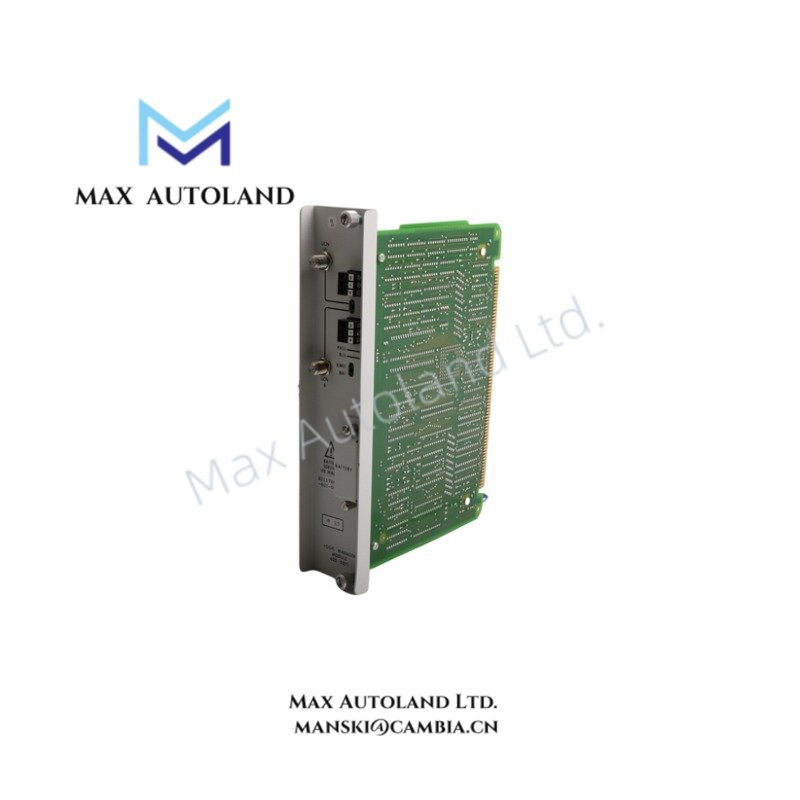

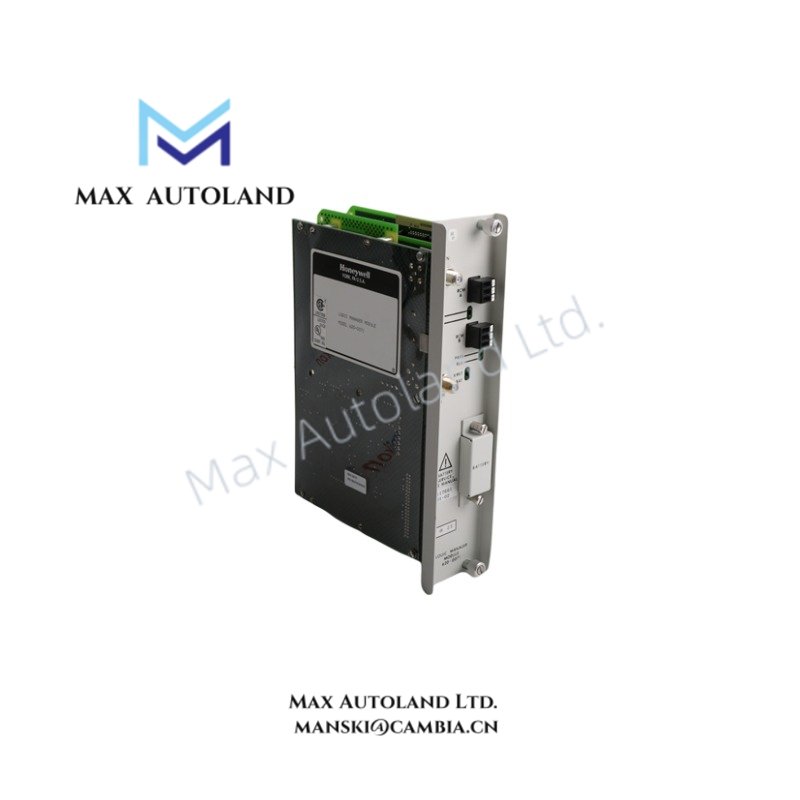

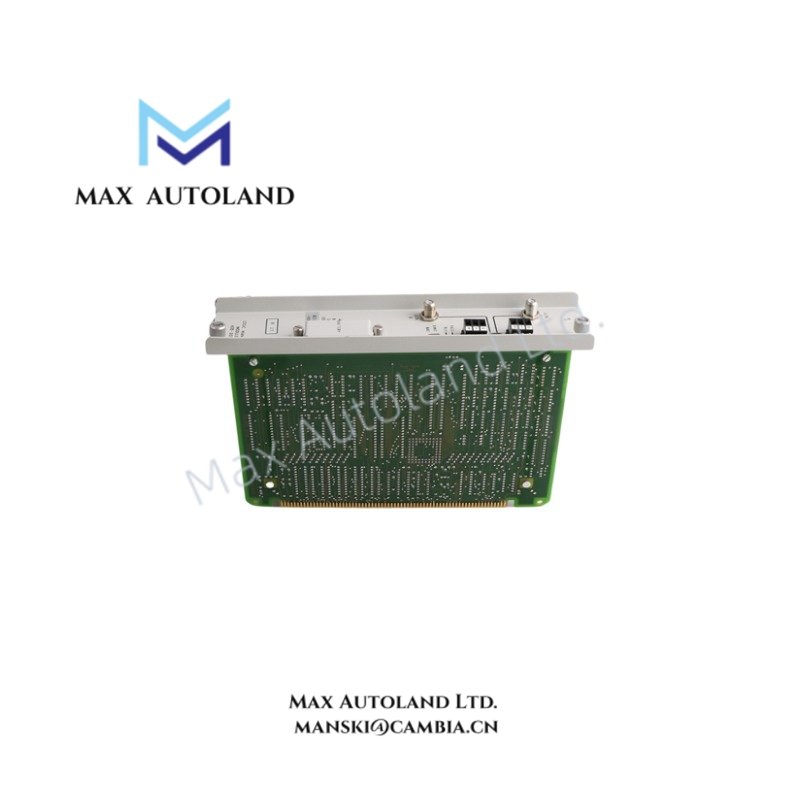

Configured for discrete signal acquisition in the IPC 620/621 control platform, the Honeywell 621-0071 (base model 621-0071 Digital Input Module) provides direct electrical interfacing between field contact devices and the backplane bus. It converts 115 VAC/VDC field potentials into isolated logic-level states for deterministic scan-cycle processing.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model/Brand | Honeywell 621-0071 |
| Origin | USA |
| Weight | Approx. 0.35 kg |
| Dimensions | Standard IPC single-slot width |
| Operating Temp | 0 to 60 degC |
| Power Consumption | < 5 W from backplane supply |
| Module Type | Digital Input Module |
| Channels | 16 channels, grouped isolation |
| Voltage Rating | 115 VAC / VDC |
| Operating Voltage Range | 85 to 132 VAC/VDC |
| Input Current | ~10 mA per channel @ rated voltage |
| Isolation | Optocoupler field-to-logic |
| Status Indication | Individual channel LEDs |
| Connection Type | Removable terminal block |
| Cooling Method | Natural convection |
| Mounting | IPC 620/621 rack slot |
Channel-to-Channel Isolation and 4-20mA Loop Compatibility
The module supports independent galvanic separation between channel groups, limiting fault propagation across the I/O bank. While the 621-0071 itself does not process analog current loops, its isolation design aligns with Honeywell’s process I/O architecture, enabling consistent grounding practice when integrated with mixed-signal racks utilizing 4-20 mA HART field devices. This reduces common-mode interference in electrically noisy environments.
Frequently Asked Questions
Q: Does the 621-0071 support hot-swap replacement without backplane power removal?
A: Yes, the module can be replaced under power in an operational IPC rack; however, loss of input state monitoring occurs during removal. Ensure proper ESD precautions before handling.
Q: What is the maximum permissible wire gauge for the removable terminal block?
A: The terminal block accepts solid or stranded conductors up to 12 AWG with recommended torque of 0.5 Nm for secure termination.
Q: Is external surge suppression required for inductive field devices?
A: External suppression is advised for AC coils to prevent optocoupler degradation over extended cycling.
Field Installation Guidelines
Install the module only after verifying rack power isolation. Align the module with the designated IPC 620/621 backplane slot and seat firmly until the ejector latches engage. Use shielded twisted-pair cabling for all field wiring, terminating shield drains to the rack ground busbar at one end only. Maintain separation of at least 150 mm between high-voltage AC wiring and low-voltage signal cables to minimize inductive coupling. Verify input polarity and voltage range prior to energizing the circuit.
