Overview

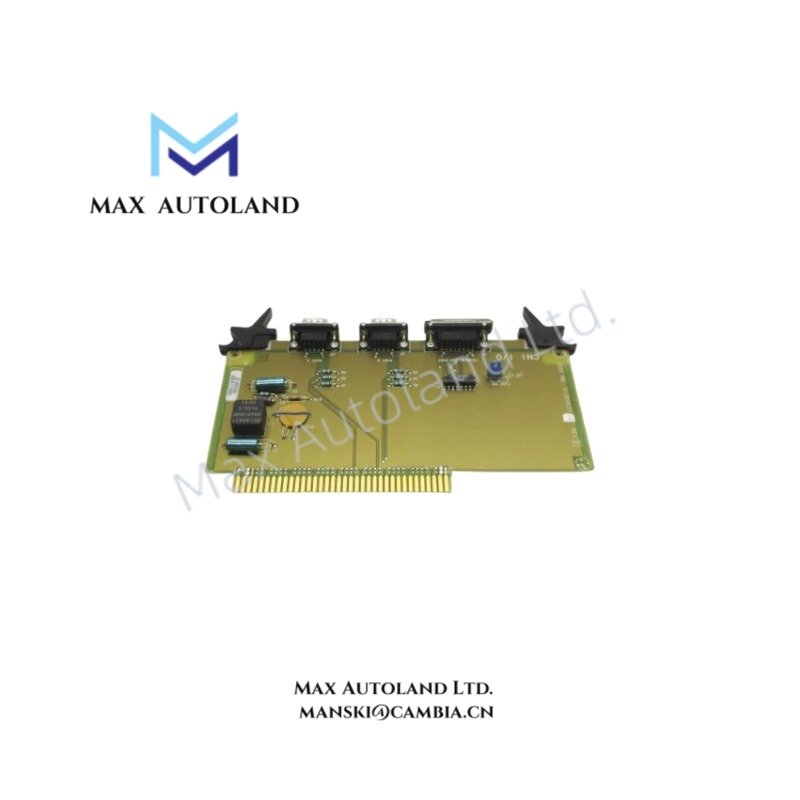

Configured for high-speed data routing and field signal acquisition in Honeywell TDC 3000 / Experion PKS architectures, the Honeywell 51304537-100 (51304536-100 ControlNet Interface I/O Board Assembly) provides direct physical/electrical execution of control network interface functions between backplane logic and field instrumentation channels.
The module processes deterministic ControlNet communication streams and analog field loop signaling through a printed wired board assembly structure, supporting signal conditioning, channel isolation, and real-time diagnostic feedback across distributed control nodes. Electrical pathways are optimized for low-noise transmission and structured backplane interfacing within Honeywell legacy DCS chassis environments.
Suffix Breakdown & Model Matrix
The identifier 51304537-100 is treated as a single-order assembly code within Honeywell legacy DCS cataloging. No formally published segmentation logic or functional suffix decomposition is defined in the provided source data.

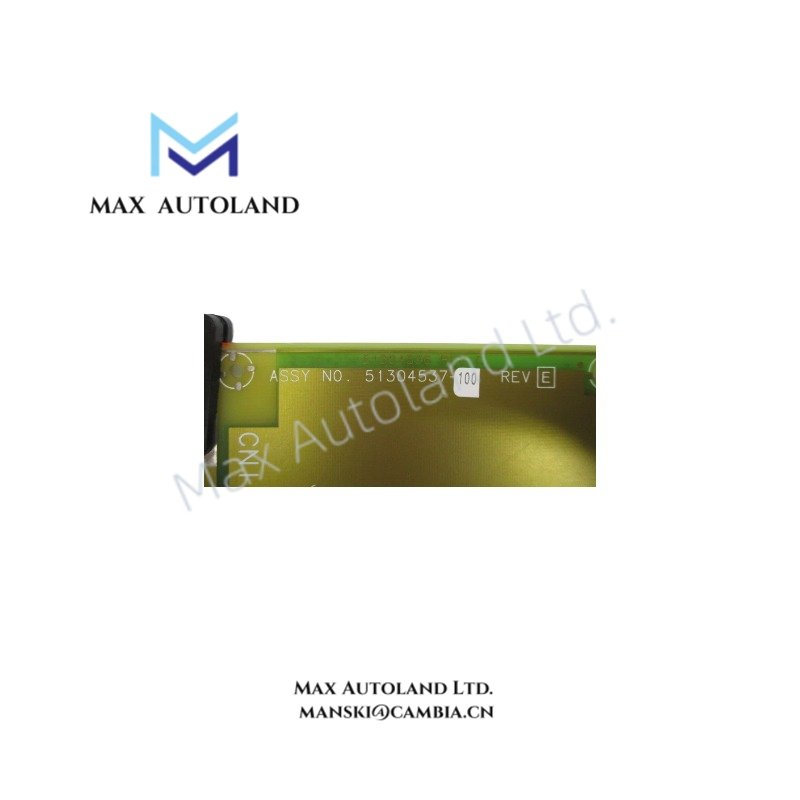

Associated PCB base reference: 51304536-100 (host interface substrate dependency).
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51304537-100 |
| Brand | Honeywell |
| Origin | United States |
| Weight | 0.18 kg to 0.40 kg |
| Dimensions | 138 mm x 115 mm x 50 mm |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | ~3.5 W typical |
| Communication Interface | ControlNet / LCN coaxial interface |
| Supply Voltage | 24 VDC +/-10% |
| System Compatibility | TDC 3000 / Experion PKS |
Honeywell Process Control Interface Characteristics
The board integrates process control signal handling consistent with Honeywell DCS architecture conventions, including 4-20 mA HART loop signal interfacing and structured channel-to-channel electrical isolation. Signal conditioning paths are routed to reduce electromagnetic coupling between adjacent field loops and backplane logic layers.
ControlNet communication timing is handled in a deterministic scheduling framework, supporting synchronized data exchange between controller nodes and distributed I/O stations. Diagnostic telemetry includes line integrity checks such as open-circuit detection, short-circuit monitoring, and channel state verification at runtime.
Frequently Asked Questions (FAQ)
Q: Does the 51304537-100 support hot-swap removal under energized backplane conditions?
A: The board behavior depends on chassis implementation. In typical TDC 3000 / Experion PKS racks, removal requires adherence to system-defined slot power isolation procedures to avoid backplane bus disruption.
Q: What is the expected backplane current load contribution of this module?
A: Power draw is specified at approximately 3.5 W typical. Actual backplane current varies depending on channel activity and host chassis power distribution design.
Q: Is firmware-based field upgrade applicable to this module?
A: The assembly is hardware-oriented. Functional behavior is primarily defined by control system firmware at the controller level rather than onboard programmable logic.
Field Installation Guidelines
The module shall be installed into a compatible Honeywell DCS chassis slot with power removed from the backplane prior to insertion. Edge connectors must be aligned without lateral stress on the PCB fingers to prevent contact wear.
Shield termination for field cabling should be bonded to system ground at a single-point reference to minimize ground loop currents. Signal routing for ControlNet coaxial links must maintain continuous impedance characteristics without sharp bend radii or discontinuities.
Electrostatic discharge handling procedures are required during installation, including grounded wrist strap usage and controlled storage of unused assemblies in anti-static packaging.
