Overview
It ensures accurate communication between distributed modules and central controllers, maintaining seamless process coordination.
Moreover, the board is engineered for industrial environments with high electrical noise, preserving signal integrity under demanding conditions.
Control engineers utilize this module to manage network traffic and analog/digital I/O signals efficiently.
Therefore, it is ideal for processes that require robust system communication and real-time data exchange.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 51304511-100 |

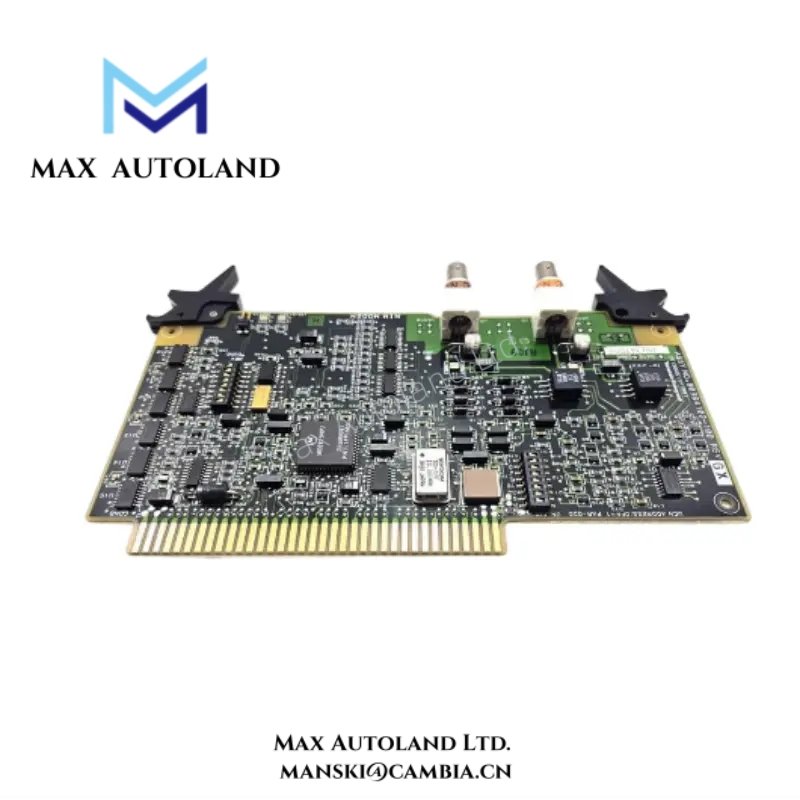

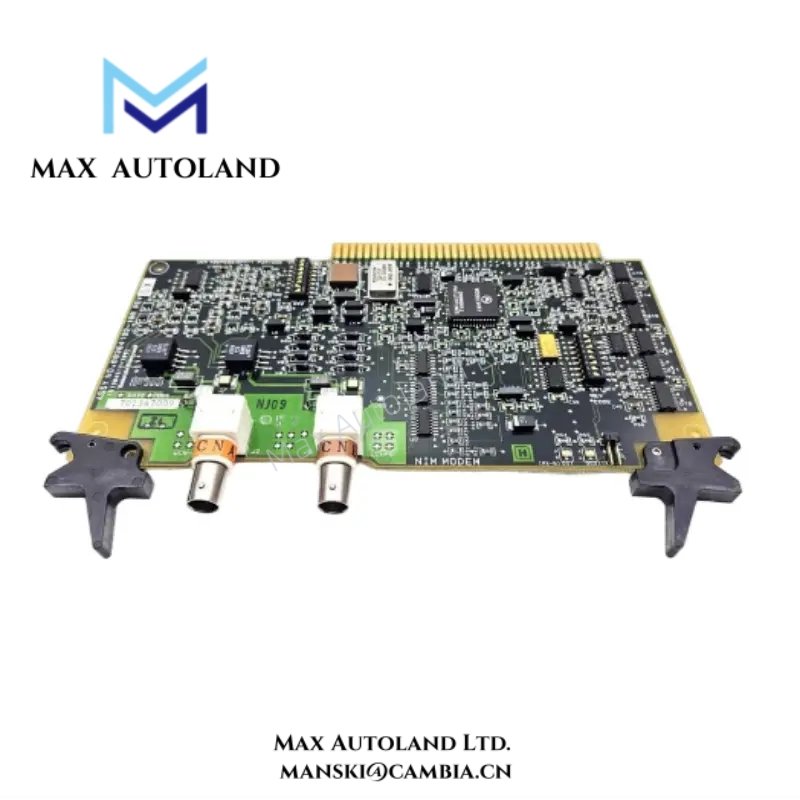

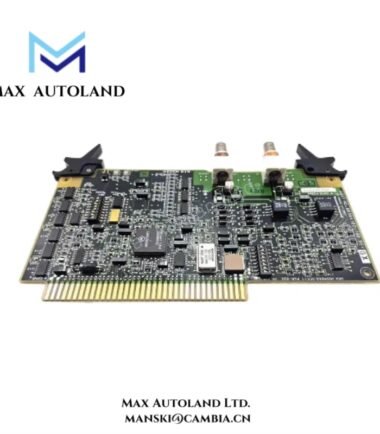

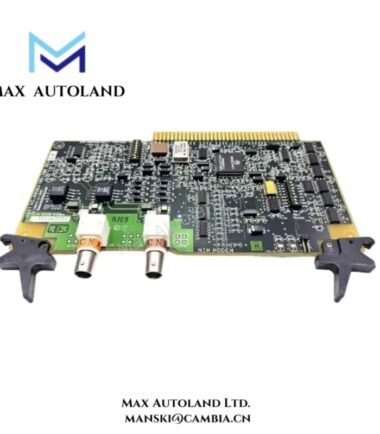

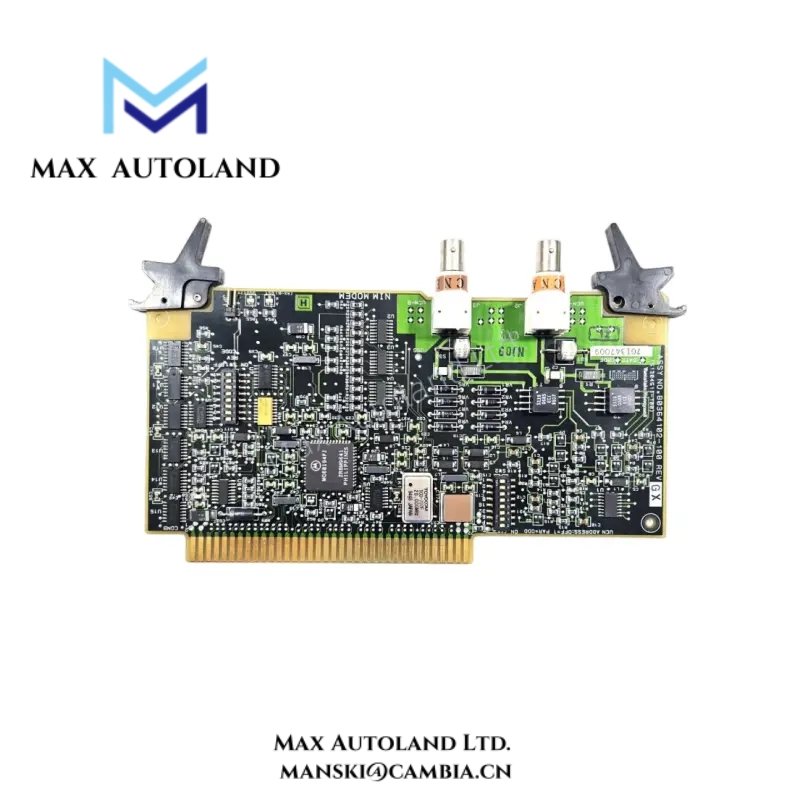

| Product Type | NIM Modem I/O Board |
| Control System Compatibility | Honeywell TDC 3000 |
| Function | Network interface and I/O signal management |
| Communication Protocol | System backplane and network signaling |
| Signal Types | Analog and digital process signals |
| Redundancy Support | None (requires system-level redundancy configuration) |
| Power Supply | Powered via TDC 3000 backplane |
| Diagnostics | Module status and network health monitoring |
| Mounting | Rack-mounted within TDC 3000 chassis |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Cooling Method | Passive system airflow |
| Duty Cycle | Continuous industrial operation |
| Environmental Rating | Indoor industrial, non-condensing |
FAQ
Q1: What is the main function of the 51304511-100 NIM Modem I/O Board?
It manages network communication and analog/digital signal integration within TDC 3000 systems.
Q2: Can it integrate into existing TDC 3000 racks?
Yes, it mounts directly into standard TDC 3000 chassis using the system backplane.
Q3: Does the module provide redundancy?
No, redundancy must be configured at the system level, not on the board itself.
Q4: What signal types does it support?
It supports both analog and digital process signals for reliable control integration.
Q5: Is it suitable for continuous industrial operation?
Yes, Honeywell engineered it for continuous-duty operation in demanding industrial environments.
Q6: How does it assist in system diagnostics?
The module monitors network traffic and module status, alerting operators to potential communication issues.
