Overview
Operators commonly deploy the 3500/60 133843-01 in turbines, compressors, and pumps, integrating it seamlessly with other 3500 Series protection systems. As a result, it extends equipment lifespan, reduces unplanned downtime, and furthermore supports predictive maintenance programs.
Specification
| Parameter | Specification |
|---|---|

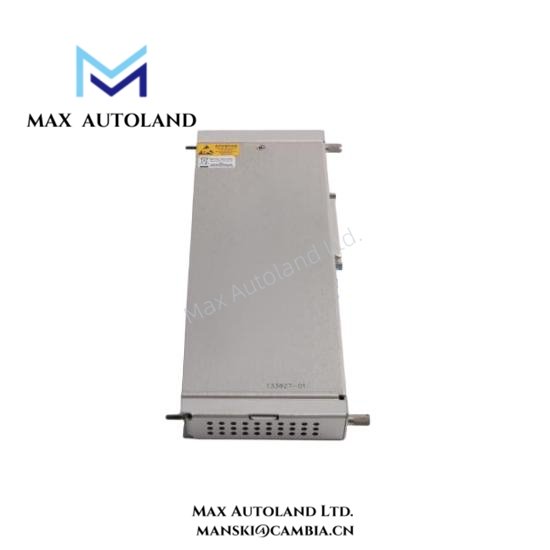

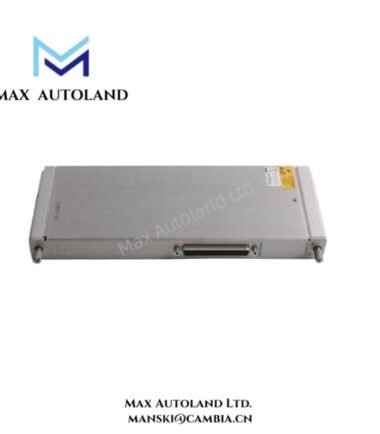

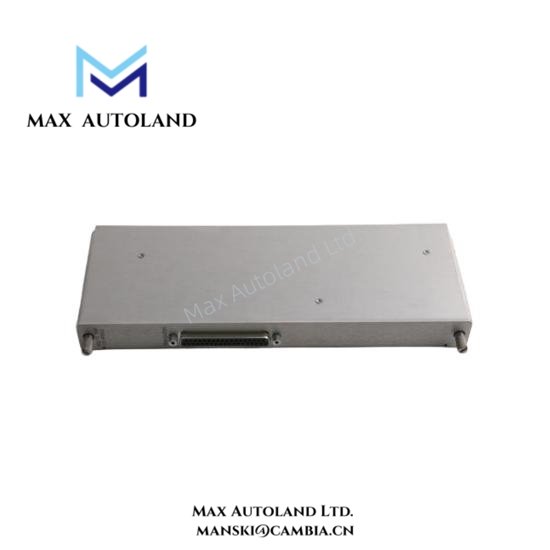

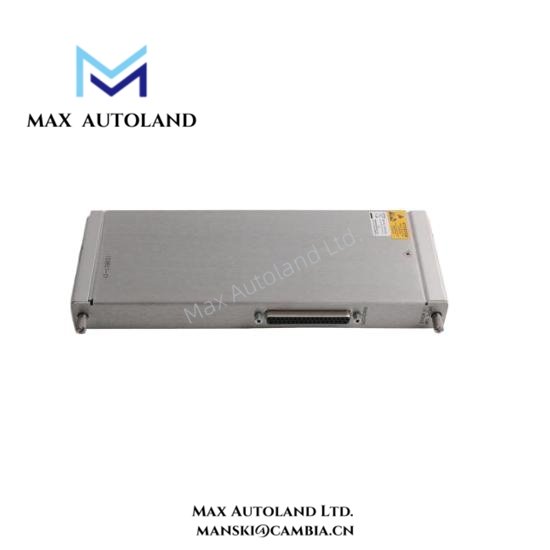

| Model Number | 3500/60 133843-01 |
| Manufacturer | Bently Nevada |
| Series | 3500 Machinery Protection Series |
| Module Type | TC (Thermocouple) Isolated I/O Module |
| Primary Function | Provides isolated temperature signal measurement for machinery protection |
| Supported Thermocouples | Types J, K, T, E, R, S, B |
| Input Signal Range | -200°C to +1820°C depending on thermocouple type |
| Input Impedance | ≥ 10 MΩ per channel |
| Isolation Voltage | ≥ 1500 V AC between channels and backplane |
| Signal-to-Noise Ratio | > 80 dB typical |
| Resolution | 16-bit A/D conversion for precise measurement |
| Accuracy | ±0.25% of reading or ±1°C, whichever is greater |
| Channel Count | 8 independent isolated thermocouple channels |
| Output Type | Configurable alarm and trip relay outputs (Form C contacts) |
| Response Time | <100 ms typical for alarm/trip |
| Backplane Interface | Standard 3500 Series single-slot backplane |
| Rack Compatibility | Fits standard Bently Nevada 3500 Series racks |
| LED Indicators | Status LEDs for power, channel health, and trip/alarm |
| Physical Dimensions (H × W × D) | 241 mm × 24 mm × 99 mm |
| Weight | ~0.3 kg |
| Power Consumption | <3 W typical |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Vibration | 5–500 Hz, 2 g RMS per IEC 60068-2-6 |
| Shock | 30 g, 11 ms half-sine per IEC 60068-2-27 |
| EMC Compliance | EN 61326-1:2013 Industrial Standard |
| Safety Compliance | Designed per 3500 Series electrical safety standards |
| Energy Storage / Safety | Low stored-energy design to prevent hazardous discharges |
| Typical Applications | Industrial turbines, compressors, pumps, and critical machinery requiring isolated temperature monitoring |
| Installation | Single-slot module, tool-free insertion, hot-swappable in live rack (with proper safety precautions) |
FAQ
A: Yes, this module is brand new and factory original, guaranteed by authorized distributors.
Q2: Is it available in stock for immediate shipping?
A: Yes, we maintain ready stock to meet urgent industrial requirements.
Q3: How long does delivery typically take?
A: Standard delivery occurs within 3 days to 2 weeks, depending on order size and logistics.
Q4: Which shipping carriers are used?
A: We commonly ship via DHL and other trusted express services.
Q5: What if the module has a quality issue?
A: We provide 30-day returns for verified quality problems, ensuring purchase confidence.
