Overview

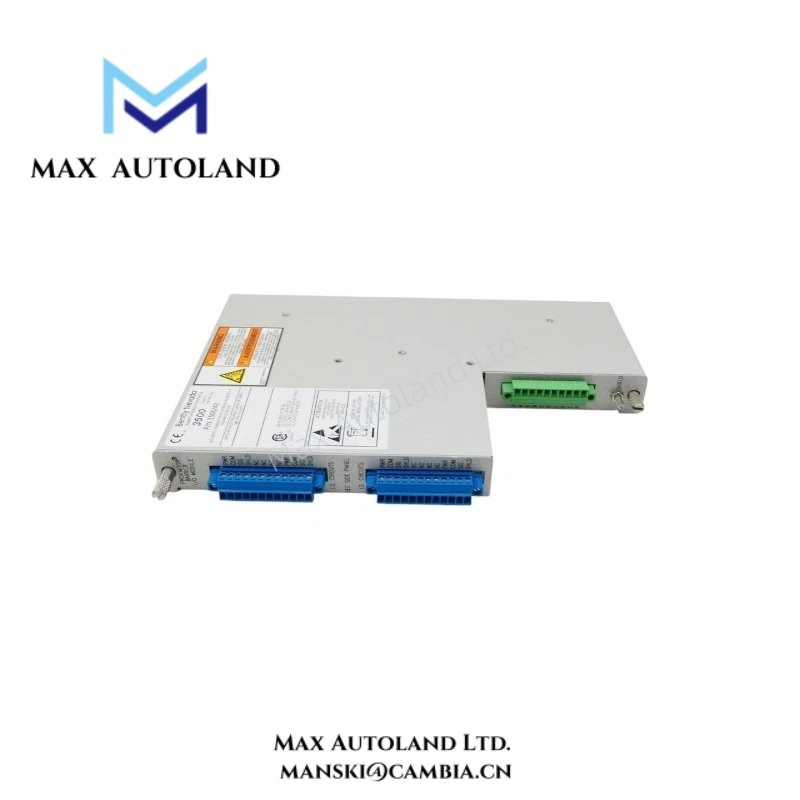

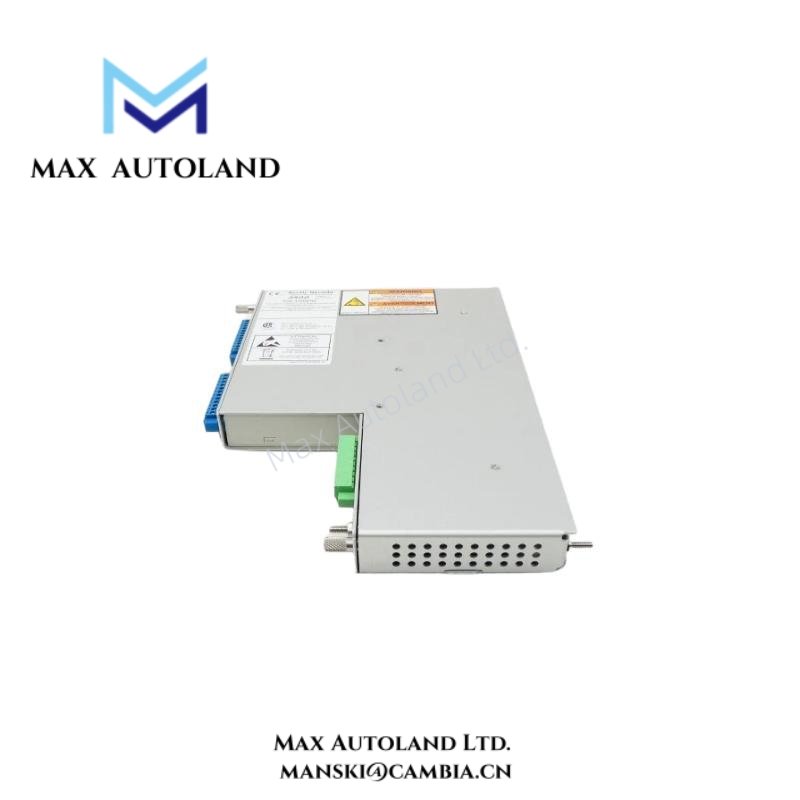

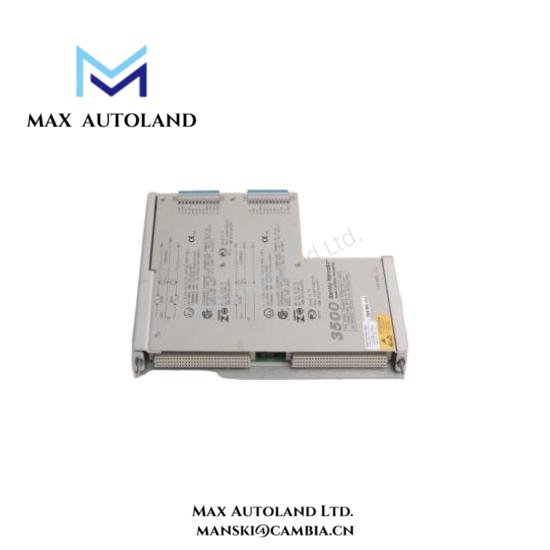

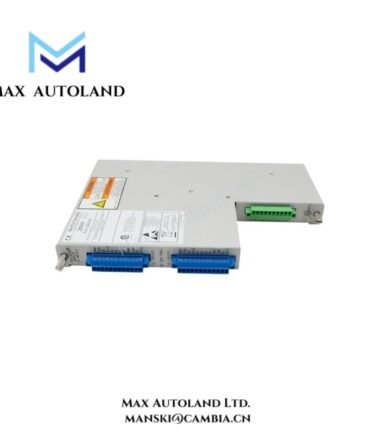

This 3500 Series I/O module integrates internal safety barriers, ensuring safe signal conditioning in hazardous industrial environments.
Moreover, the module supports proximity and seismic monitoring applications within the trusted Bently Nevada 3500 platform.
Designed for high-availability systems, the 3500/42 135489-02 simplifies wiring while maintaining strict compliance with safety requirements.
Therefore, users gain consistent signal integrity, reduced installation complexity, and dependable long-term operational stability.
Specification
| Parameter | Specification |
|---|---|
| Model | 3500/42 135489-02 |
| Manufacturer | Bently Nevada |
| Product Series | 3500 Machinery Protection Series |
| Module Category | I/O Module with Internal Intrinsic Safety Barriers |
| Primary Function | Safe signal interfacing between field transducers and 3500 monitoring modules |
| Supported Transducer Types | Proximity probes, seismic velocity sensors, compatible vibration transducers |
| Input Signal Type | Analog dynamic vibration and position signals |
| Channel Configuration | Multi-channel architecture, factory-defined channel allocation |
| Channel Isolation | Electrical isolation between field signals and system backplane |
| Intrinsic Safety Design | Integrated internal barriers, eliminating external barrier requirements |
| Barrier Function | Limits voltage, current, and stored energy to safe levels |
| Energy Storage | Low-energy internal capacitance compliant with intrinsic safety standards |
| Backplane Interface | Direct connection to 3500 Series system backplane |
| Rack Compatibility | Standard 3500 rack, front-access installation |
| Module Width | Single-slot width |
| Physical Dimensions (H × W × D) | Approximately 241 mm × 24 mm × 99 mm |
| Approximate Weight | 0.3 kg |
| Field Wiring Interface | Terminal block connections for transducer inputs |
| Operating Temperature Range | Designed for continuous industrial control room operation |
| Environmental Rating | Suitable for vibration monitoring cabinets in harsh industrial environments |
| Compliance Focus | Designed to support hazardous-area machinery protection applications |
| Typical Applications | Turbines, compressors, pumps, motors, generators |
| System Role | Signal conditioning and safe transmission to monitoring processors |
FAQ
A: Yes, this module is brand new, original factory sealed, and fully compliant with manufacturer specifications.
Q2: Do you have stock available for immediate purchase?
A: Yes, we keep ready stock available, enabling fast order processing for urgent project requirements.
Q3: What is the typical delivery timeframe?
A: Shipping usually occurs within 3 days to 2 weeks, depending on order quantity and logistics arrangements.
Q4: Which logistics carriers do you commonly use?
A: We regularly ship via DHL and other international express carriers to ensure reliable delivery.
Q5: What warranty or return support do you provide?
A: If any quality issues arise, we support 30-day returns, ensuring a secure and risk-free purchase experience.
