Overview
Moreover, it ensures accurate signal routing for machinery protection, alarm activation, and system integration.

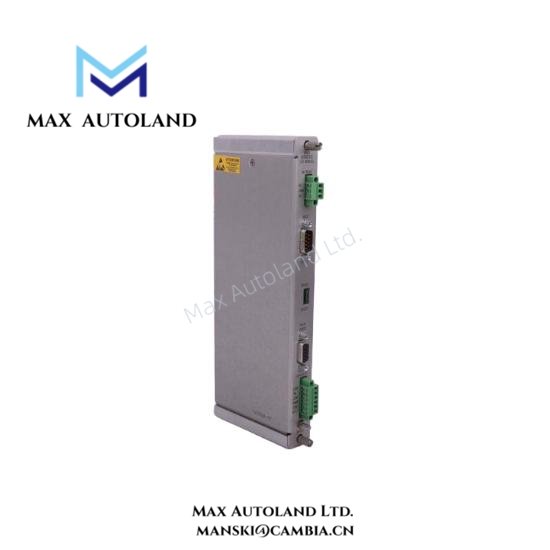

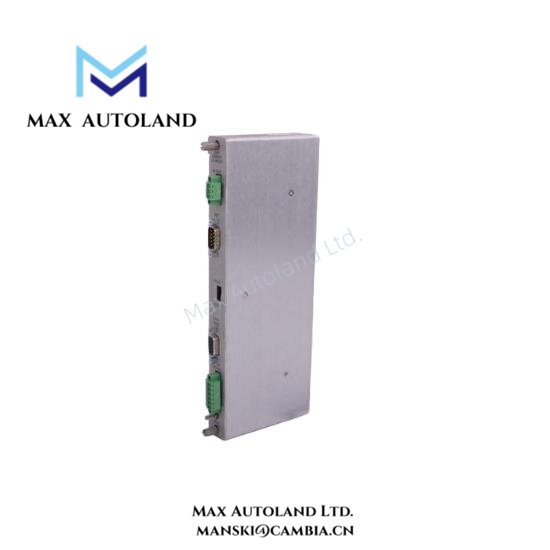

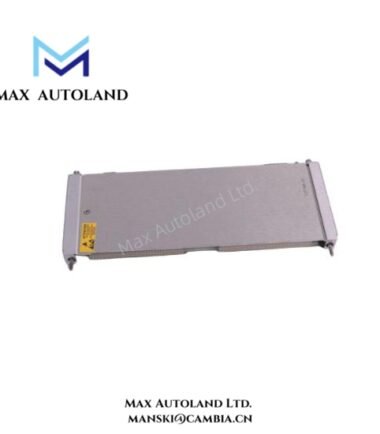

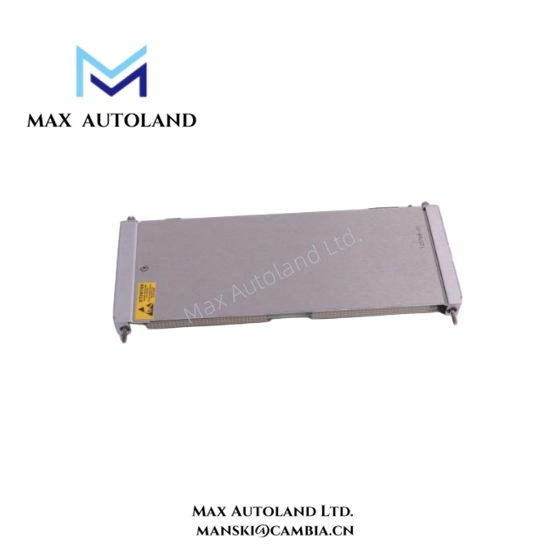

Therefore, operators benefit from seamless connectivity and consistent monitoring of industrial equipment.Designed for the Bently Nevada 3500 Series, the 3500/20-01-01-00 supports multiple module types while maintaining stable backplane communication.
In addition, its robust construction ensures reliable operation in demanding industrial environments.
Specification
| Parameter | Detailed Specification |
|---|---|
| Product Model | 3500/20-01-01-00 |
| Module Type | Rack Interface I/O Module |
| Series | Bently Nevada 3500 Machinery Protection Series |
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Primary Function | Routes and interfaces I/O signals between modules and system rack |
| Supported Signals | Analog, digital, and relay outputs from 3500 monitoring modules |
| Relay Output Type | Dry contact relay outputs for alarms and control |
| Number of I/O Channels | Multiple configurable input and output channels |
| Rack Compatibility | Standard Bently Nevada 3500 System Rack |
| Slot Width | Single-slot module |
| Backplane Interface | Standard 3500 series backplane connector |
| Power Supply | Supplied from 3500 rack backplane |
| Power Consumption | Typically <5 W |
| Energy Storage | None, no internal battery or capacitor |
| Operating Temperature | 0°C to +65°C |
| Storage Temperature | –40°C to +85°C |
| Relative Humidity | Up to 95%, non-condensing |
| Installation Orientation | Vertical mounting in 3500 rack |
| Physical Height | 241 mm (9.5 in) |
| Physical Width | 24 mm (0.95 in) |
| Physical Depth | 241 mm (9.5 in) |
| Net Weight | Approximately 0.8 kg |
| Typical Applications | Signal routing, alarm integration, machinery protection, system monitoring |
| System Role | Connects modules to rack interface, simplifies wiring, ensures signal integrity |
FAQ
A1: Yes, the 3500/20-01-01-00 is 100% brand new, factory-sealed, and fully genuine Bently Nevada hardware.
A2: Yes, the 3500/20-01-01-00 is kept in stock for immediate fulfillment.
