Overview
Specification
| Specification | Details |
|---|---|
| Model Number | 330100‑50‑00 |

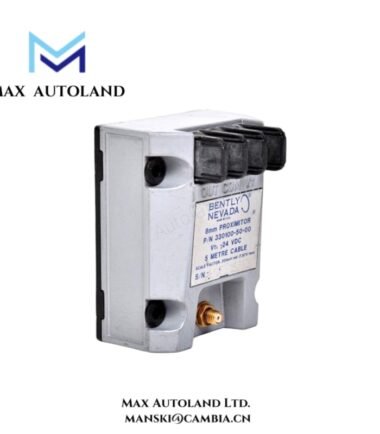

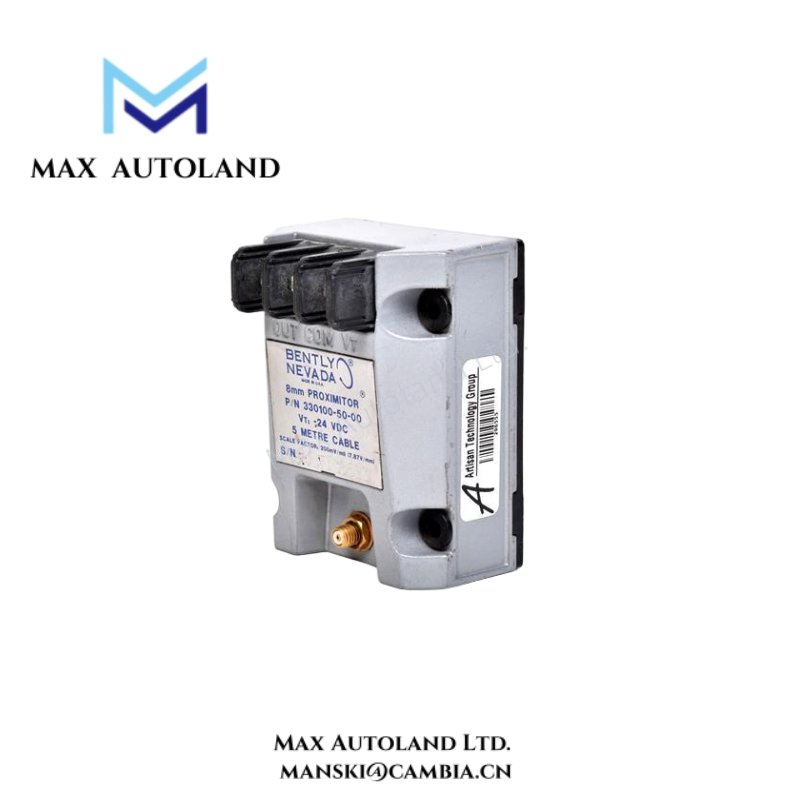

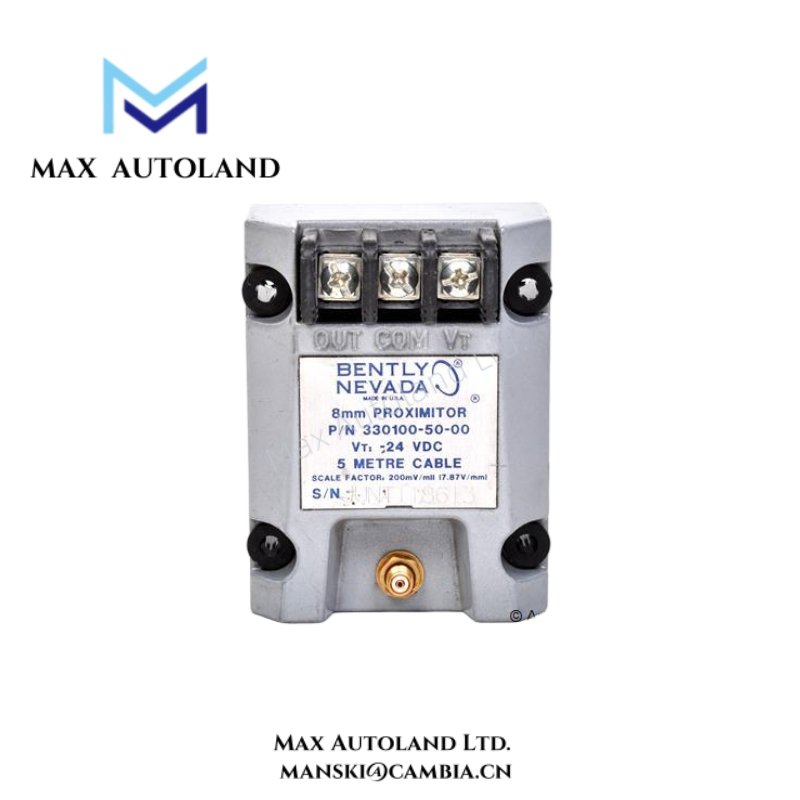

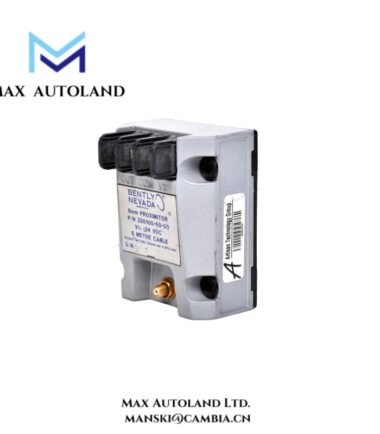

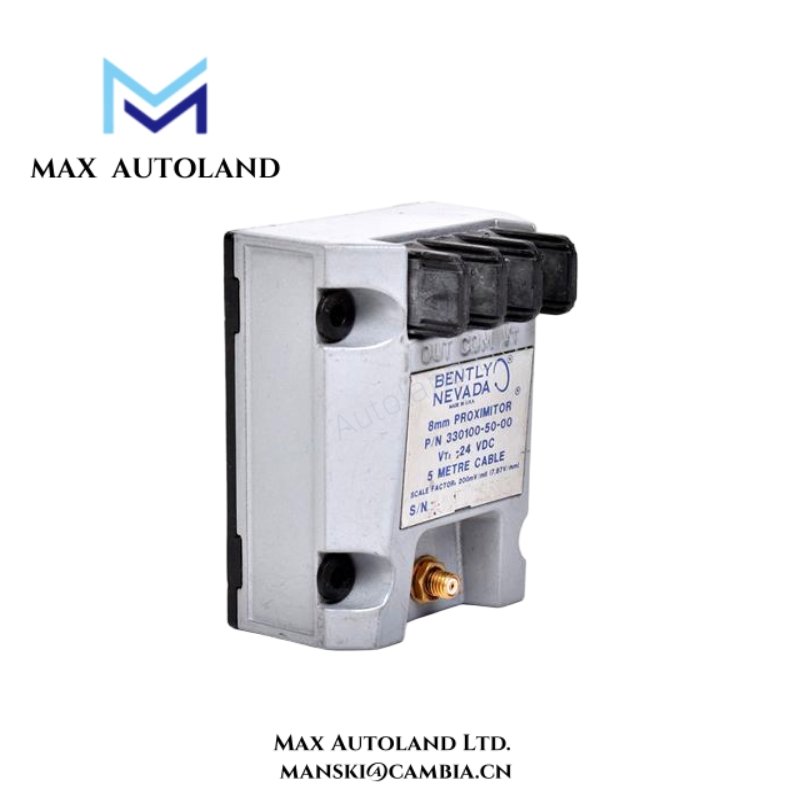

| Product Type | 8 mm Proximity Transducer Sensor |
| Series | 3300 XL Proximity Transducer System |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Measurement Principle | Eddy current non‑contacting displacement sensing |
| Measurement Range | 0–8 mm (0–0.315 in) |
| Output Signal | Analog voltage proportional to displacement |
| Power Supply | –17.5 Vdc to –26 Vdc |
| System Length | Approximately 5.0 meters (16.4 ft) including probe and cable |
| Mounting Method | Panel-mount standard; optional DIN‑rail support |
| Connector Type | Gold-plated ClickLoc connectors for secure engagement |
| Recommended Probe Gap | ~1.27 mm (50 mils) |
| Operating Temperature | –40 °C to +100 °C (–40 °F to +212 °F) |
| Humidity Resistance | Suitable for industrial humidity environments |
| Environmental Protection | RFI/EMI immunity for harsh industrial conditions |
| Weight | Approx. 0.68 kg |
| Target Material | Conductive metal surfaces |
| Application Type | Vibration & position monitoring |
| Country of Origin | USA |
| Warranty | Typically 12 months (varies by supplier) |
| Agency Approval Option | Multiple Approvals |
FAQ
A1: The recommended probe gap is approximately 1.27 mm (50 mils) to maintain linear accuracy.
Q2: Can the 330100-50-00 operate in high-humidity environments?
A2: Yes, it is suitable for industrial humidity conditions and maintains reliable measurements.
Q3: Which systems is this proximity transducer compatible with?
A3: It is fully compatible with Bently Nevada 3300 XL Proximity Transducer Systems.
Q4: What is the operating temperature range of this sensor?
A4: The sensor operates reliably between –40 °C and +100 °C (–40 °F to +212 °F).
Q5: What mounting options are available for installation?
A5: Standard panel-mount installation is included, with optional DIN-rail support.
Q6: What is the total system length including probe and cable?
A6: The complete system length is approximately 5.0 meters (16.4 feet).
