Overview
Specification
| Specification | Details |
|---|---|

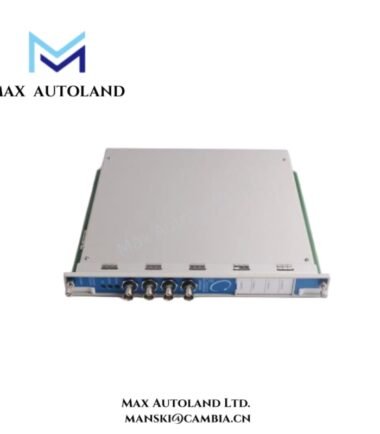

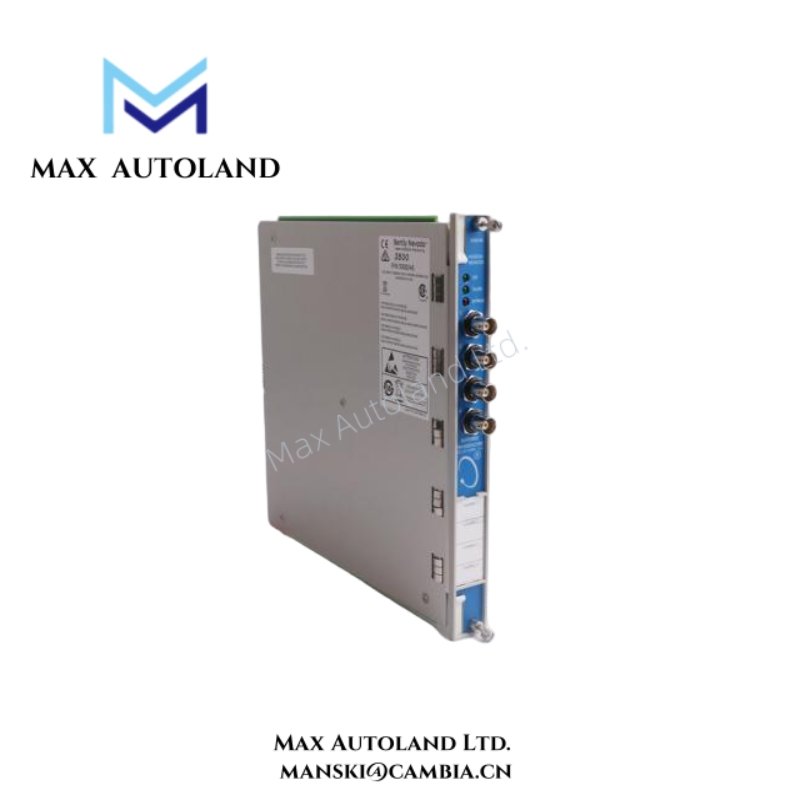

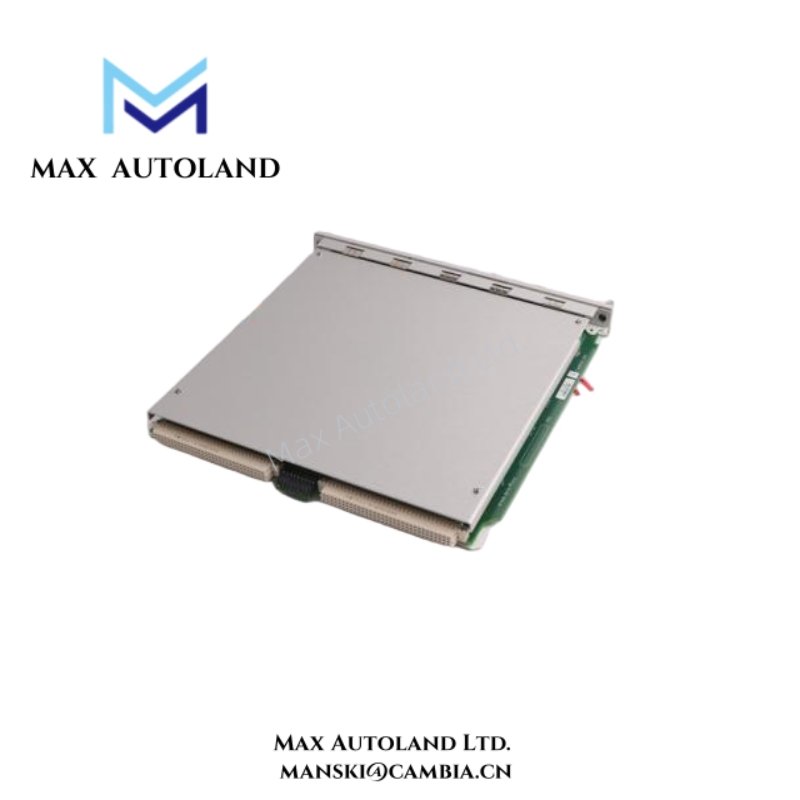

| Model Number | 176449-04 |
| Product Type | Position Monitor Module |
| Series | 3500 Machinery Protection System |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Measured Parameter | Shaft position / displacement |
| Input Sensor Compatibility | 3300 XL proximity probes |
| Output Signal | Analog voltage proportional to displacement |
| Power Supply | 24 VDC nominal (range 18–30 VDC) |
| Loop Accuracy | ±1% full-scale output |
| Mounting Method | 3500 Series rack / DIN-rail |
| Operating Temperature | –40 °C to +85 °C (–40 °F to +185 °F) |
| Humidity Rating | 5–95% non-condensing |
| Dimensions (Approx.) | 81 × 61 × 38 mm (3.2 × 2.4 × 1.5 in) |
| Weight | ~250 g |
| Fault Indication | Alarm outputs and diagnostics integrated |
| Compliance | CE and regional approvals, market dependent |
| Typical Applications | Vibration monitoring, shaft position tracking, protection of turbines, compressors, and generators |
FAQ
A1: Yes, it integrates seamlessly with standard 3500 Series monitoring racks for easy system expansion.
Q2: What sensors can be connected to this module?
A1: It supports 3300 XL proximity probes and other compatible displacement sensors for accurate monitoring.
Q3: What is the typical operating temperature range for this module?
A1: The module operates reliably from –40 °C to +85 °C (–40 °F to +185 °F) under industrial conditions.
Q4: How does the module handle fault detection?
A1: Built-in diagnostics provide alarms and output status, enabling early warning for maintenance personnel.
Q5: Can the 176449-04 be mounted in compact spaces?
A1: Yes, its compact design allows convenient DIN-rail or 3500 Series rack mounting in tight areas.
Q6: What industrial certifications does this module meet?
A1: It complies with CE and other regional industrial safety standards, ensuring reliable operation in harsh environments.
