Overview

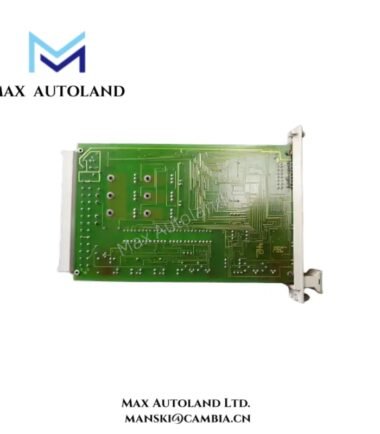

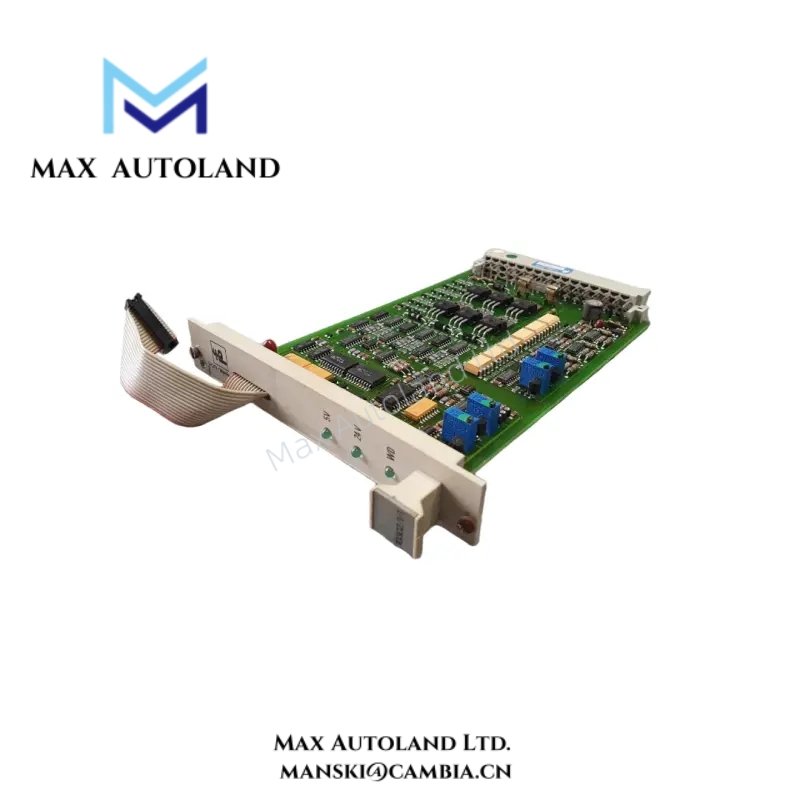

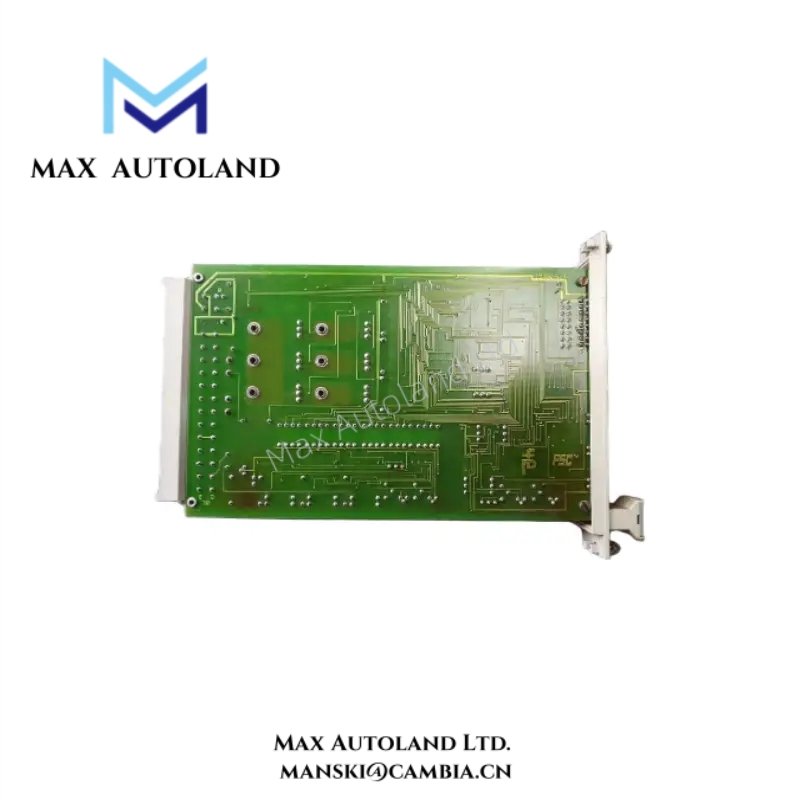

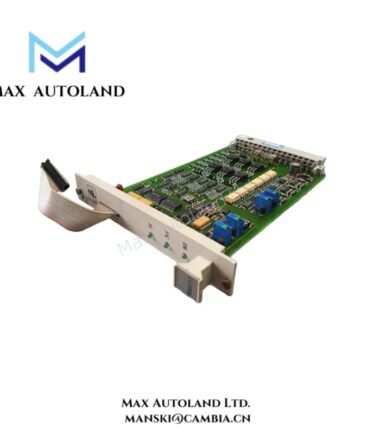

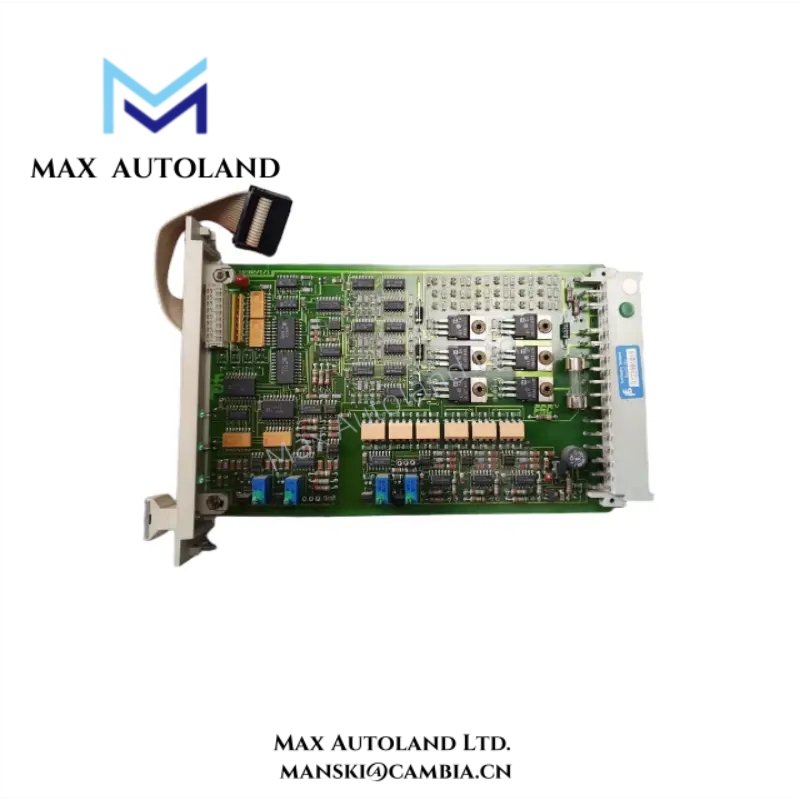

The Honeywell 10302/1/1 Watchdog Repeater Module ensures continuous supervision of FSC safety systems.
It retransmits watchdog signals between controllers and distributed modules, therefore maintaining system integrity.
Moreover, the module provides robust signal amplification to prevent communication loss over extended rack configurations.
Its industrial-grade design guarantees reliable operation under vibration, electrical noise, and temperature extremes.
Engineers commonly use this module to maintain deterministic safety signal propagation and strengthen overall FSC system reliability.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Product Series | FSC (Fail Safe Controller) |
| Model Number | 10302/1/1 |
| Order Reference | 10302/1/1 |
| Module Type | Watchdog Repeater Module |
| Primary Function | Retransmits and amplifies watchdog signals within FSC safety systems |
| Signal Purpose | Maintains continuous supervision of FSC safety circuits |
| Number of Channels | Supports multiple FSC watchdog signals |
| System Compatibility | Honeywell FSC safety controllers and modules |
| Installation Method | Rack-mounted plug-in module |
| Mechanical Design | Modular and field-replaceable construction |
| Environmental Tolerance | Industrial-grade: vibration, EMI, and temperature extremes |
| Operating Temperature | -20°C to +70°C |
| Power Supply | Supplied via FSC system backplane |
| Power Consumption | Minimal, optimized for continuous operation |
| Typical Industries | Oil and gas, petrochemical, power generation, heavy industry |
| Reliability | Ensures continuous and deterministic safety signal propagation |
| Lifecycle Support | Honeywell long-term support and spare part availability |
FAQ
Q1: What is the primary purpose of the Honeywell 10302/1/1 module?
A1: It retransmits and amplifies watchdog signals to ensure continuous FSC system supervision.
Q2: How many signals can the module handle?
A2: The module supports multiple FSC watchdog signals simultaneously.
Q3: Can it integrate with existing FSC systems?
A3: Moreover, it fully integrates with Honeywell FSC controllers and modules without additional hardware.
Q4: Is it suitable for harsh industrial environments?
A4: Yes, it operates reliably under vibration, electrical noise, and temperature extremes.
Q5: Which industries typically use this module?
A5: Typical applications include oil and gas, petrochemical, power generation, and heavy industry safety networks.
