Overview

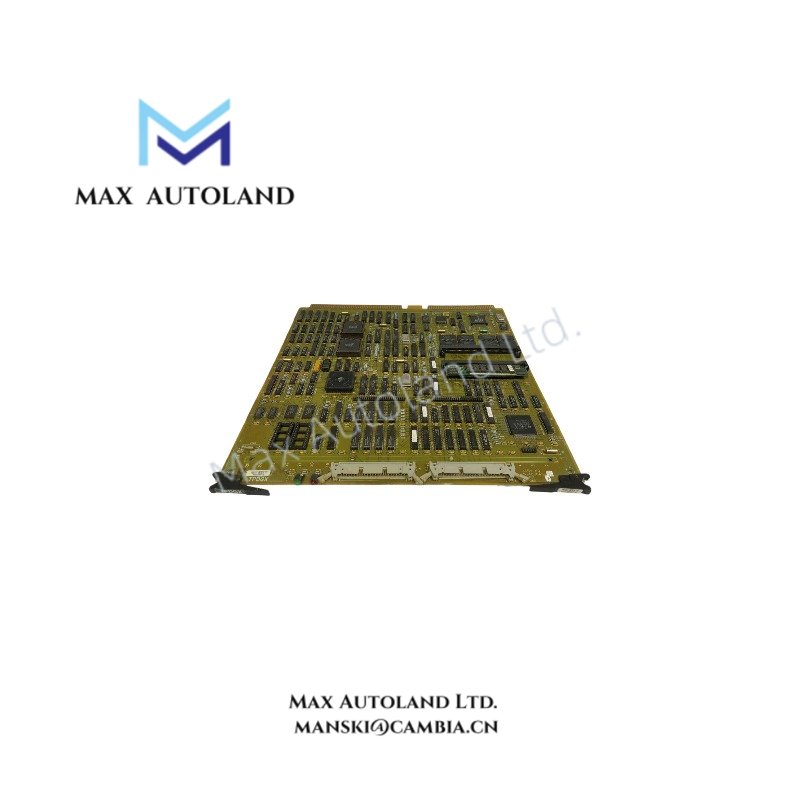

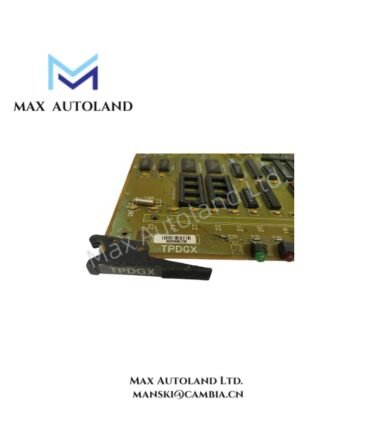

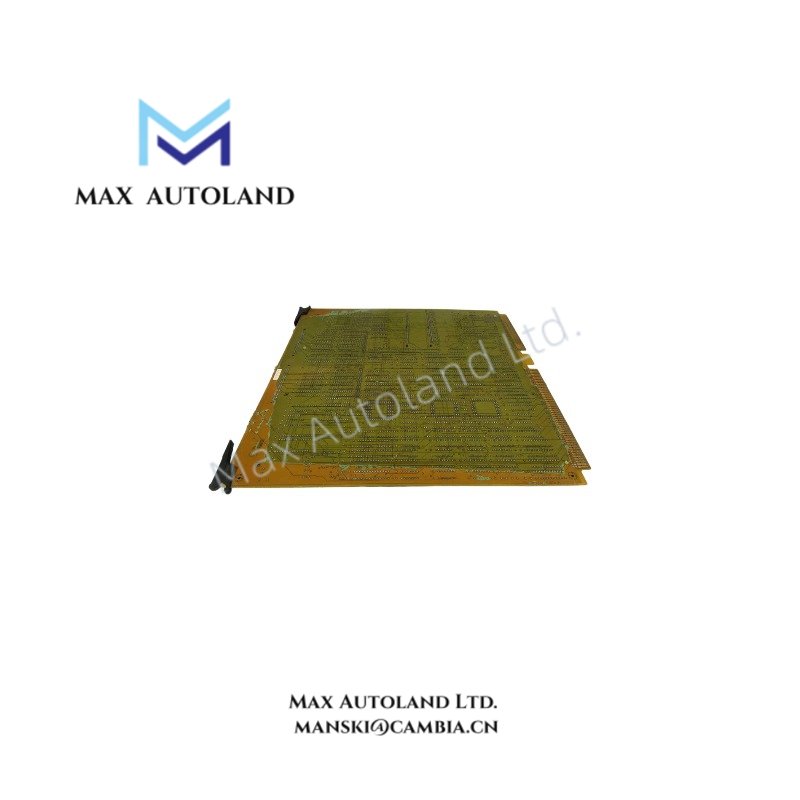

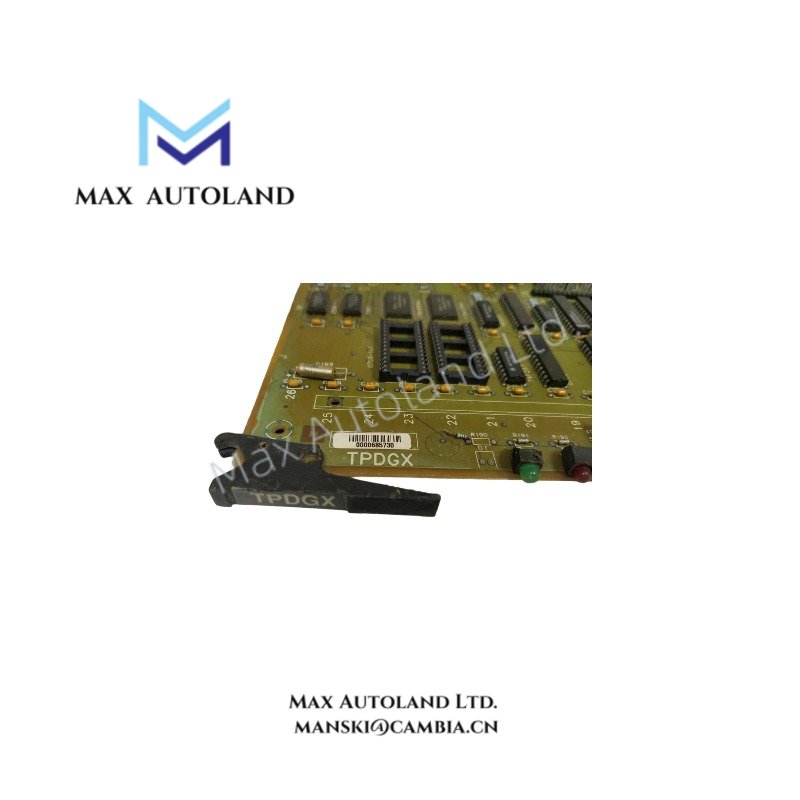

The Honeywell 51402645-200, also cataloged as the 51402645-200 EHPM Board / I/O Link Interface Module, operates as a dedicated hardware component for I/O link data routing and processor-to-I/O communication within Honeywell TDC 3000 / Experion PKS HPM architecture. The module provides deterministic electrical and logical transfer between process manager controllers and distributed I/O subsystems via Honeywell proprietary link structures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| ModelBrand | Honeywell 51402645-200 |
| Origin | USA (Honeywell Process Solutions) |
| OperatingTemp | 0 degC to 60 degC |
| PowerConsumption | Supplied via HPM chassis backplane (internal regulated rails) |
| System Compatibility | TDC 3000 / Experion PKS HPM/EHPM |
| Interface Type | I/O Link / Link Control Asynchronous Interface |
| Redundancy | Dual-redundant paired operation supported |
| Communication Architecture | Proprietary deterministic I/O link bus |
Honeywell Process Control Interface Characteristics
I/O Link Deterministic Communication Layer
The module implements a Honeywell proprietary I/O Link structure for cyclic and acyclic data transfer between EHPM processors and remote I/O assemblies. Signal exchange is synchronized through backplane timing control, supporting redundant primary/secondary module alignment. Channel separation is maintained through internal isolation domains to prevent cross-coupling between parallel link paths.
Field signal aggregation within upstream controller stacks may include analog 4-20 mA loops and digital HART overlays depending on system configuration, with downstream mapping performed through the HPM execution layer. The interface maintains stable scan alignment under dual-node redundancy switching conditions.
Frequently Asked Questions
Q: Does the 51402645-200 support hot-swapping during operation?
A: Hot-swap capability depends on chassis configuration and system redundancy state. Removal is typically only permitted in synchronized redundant pairs under controller-safe conditions.
Q: What is the electrical role of this module in the backplane?
A: It functions as an I/O link arbitration and routing interface, distributing synchronized communication frames between processor and I/O modules via the HPM backplane structure.
Q: Can this module operate in single configuration mode?
A: It is designed primarily for redundant paired deployment; single-slot operation may result in degraded fault tolerance behavior depending on system firmware rules.
Field Installation Guidelines
The module shall be installed into a compatible Honeywell HPM/EHPM chassis slot with backplane alignment verified before insertion. Ensure all system power rails are de-energized or placed into maintenance bypass mode according to controller safety procedure.
Maintain controlled electrostatic discharge protection during handling. Backplane connector engagement must be fully seated to ensure deterministic signal continuity across I/O link planes. Redundant pairing must be installed in adjacent or designated mirrored slots as defined by system configuration rules.
Cable routing within the cabinet shall maintain separation between I/O link conductors and high-energy power conductors to minimize electromagnetic coupling effects.
