Overview

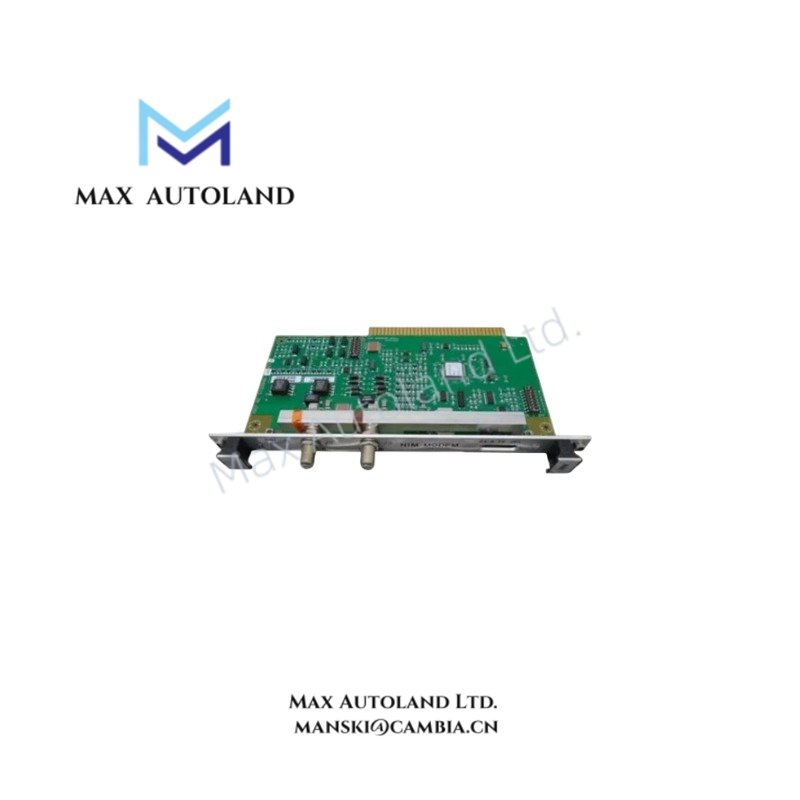

Configured for display generation and peripheral visualization processing in Local Control Network (LCN) environments, the Honeywell 51402080-100 (51402080-100 Enhanced Peripheral Display Generator Card) provides direct physical/electrical execution for operator display data handling within Honeywell TDC 3000 and Experion PKS architectures.
The module operates as a slot-based LCN interface card responsible for generating and maintaining display-oriented data structures between operator stations and process control nodes. Signal handling is aligned with deterministic backplane communication behavior defined by Honeywell legacy DCS architectures.
Suffix Breakdown & Model Matrix
51402080-100 is a single defined orderable assembly identifier. No validated manufacturer-published suffix segmentation or functional sub-code decomposition is available from the provided dataset. Any internal board revisioning or ECO-level changes are not disclosed at catalog level.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51402080-100 |
| Brand | Honeywell |
| Origin | United States |
| Weight | 1.7 lbs |
| Dimensions | Not specified |
| OperatingTemp | 0 degC to +60 degC |
| PowerConsumption | Not specified |
| Module Type | Enhanced Peripheral Display Generator Card |
| System Compatibility | TDC 3000 / Experion PKS (LCN architecture) |
| Mounting | Chassis / rack plug-in module |
| Cooling | Passive convection |
| Backplane Interface | LCN slot-based communication |
Channel-to-Channel Isolation and Process Data Handling (LCN Display Subsystem Behavior)
Within Honeywell distributed control environments, display generator modules of this class participate in structured data exchange over the Local Control Network backplane. Data integrity is maintained through deterministic bus arbitration and controlled update cycles.
In typical DCS implementations, signal segregation and logic-domain separation are aligned with channel isolation principles used in process control systems, where operator display refresh streams are decoupled from field-level I/O execution paths. Integration with 4-20 mA HART-based process variables occurs upstream through controller modules, while this card class focuses on formatted visualization rendering rather than direct analog acquisition.
Frequently Asked Questions
Q: Does the 51402080-100 support hot-swap insertion in live LCN racks?
A: Hot-swap capability depends on chassis backplane design. The module itself does not define hot-swap logic; insertion should follow rack-level power isolation procedures.
Q: Does this card directly process 4-20 mA signals?
A: No. Analog signal conditioning is handled by controller or I/O subsystem modules. This board operates on processed digital display data over the LCN.
Q: Are firmware upgrades applicable at board level?
A: No field firmware interface is defined for this module. Functional behavior is determined by system-level LCN controller software.
Field Installation Guidelines
- Ensure system rack power is fully isolated before insertion or removal of the module
- Verify correct alignment with LCN backplane connector guides to prevent pin damage
- Maintain electrostatic discharge (ESD) protection during handling and installation
- Do not apply external wiring to the board; all communication is backplane-based
- Confirm adjacent slot clearance to avoid airflow restriction in chassis assemblies
- Follow Honeywell LCN rack maintenance procedures for mechanical seating verification
