Overview

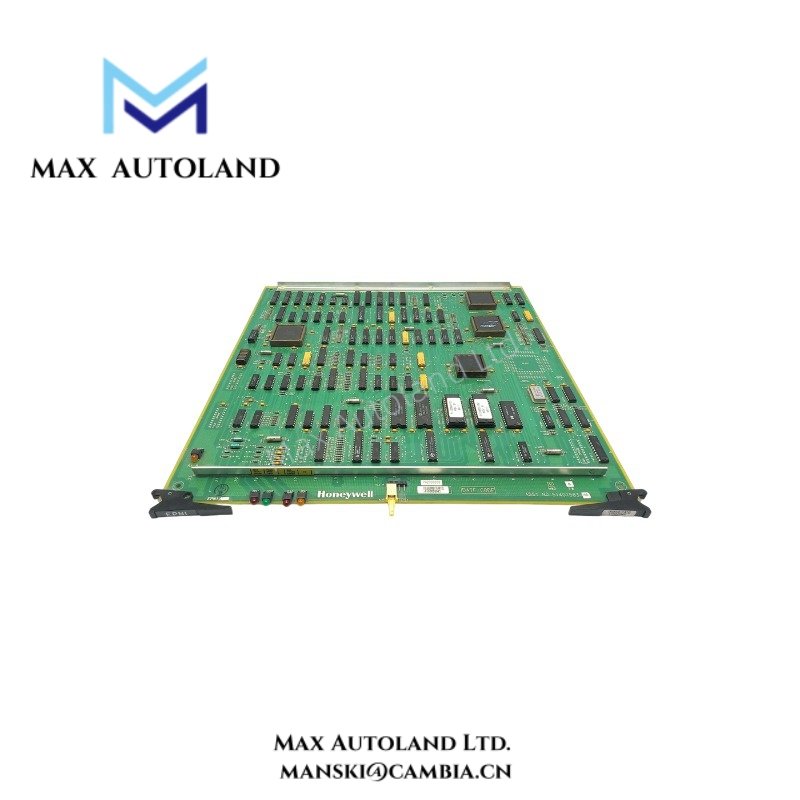

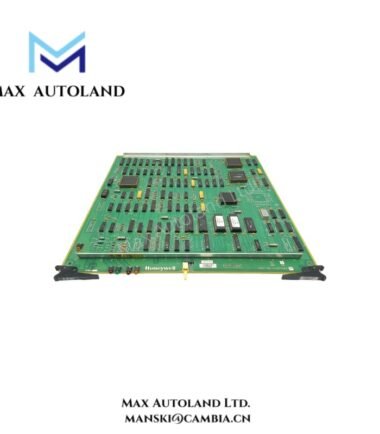

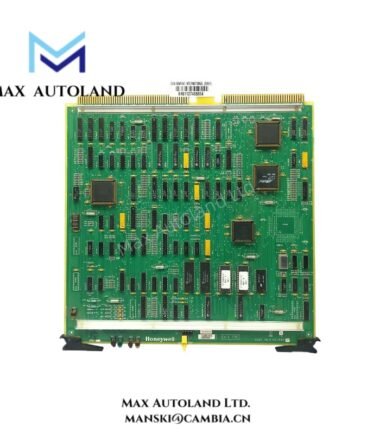

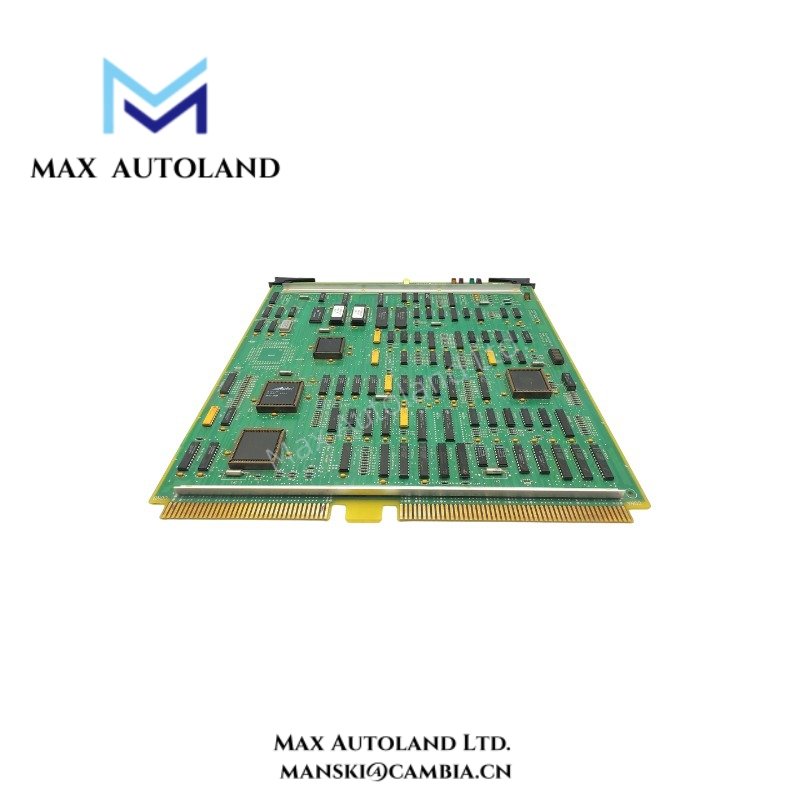

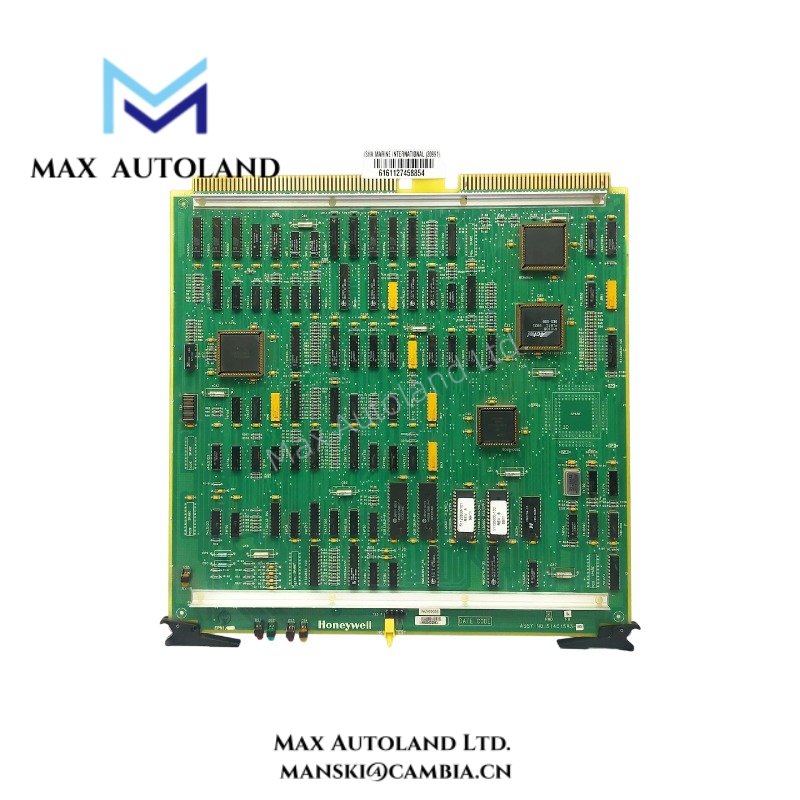

The 51401583-100 enhanced process network interface board enables reliable communication within Honeywell TDC 3000 systems.
It ensures stable high-speed data exchange between controllers, operator stations, and distributed process nodes.
Additionally, the 51401583-100 improves network efficiency through optimized signal processing and robust hardware architecture.
Engineers select the 51401583-100 for dependable industrial networking and consistent system integration performance.
Specification
| Parameter | Specification Details |
|---|---|
| Model Number | 51401583-100 |
| Manufacturer | Honeywell |
| Product Type | Network Interface Board |
| Series | TDC 3000 |
| Communication Function | Data exchange between control system nodes |
| Interface Type | Backplane and network interface connectors |
| Communication Ports | Multiple system communication interfaces |
| Data Transmission | High-speed deterministic communication |
| Signal Type | Digital network communication signals |
| Power Supply | Powered via system backplane |
| Power Consumption | Optimized low-power industrial design |
| Component Design | Multi-layer PCB with high-density components |
| Energy Storage | Integrated capacitors for transient suppression |
| Diagnostics | Real-time status monitoring and fault indication |
| Indicators | LED indicators for communication and system status |
| Mounting Method | Rack-mounted within control chassis |
| Dimensions | Approx. 250 mm × 180 mm × 40 mm |
| Weight | Approx. 1.2–1.8 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| EMC Compliance | Meets industrial EMC standards |
| Isolation | Electrical isolation between communication channels |
| Cooling Method | Passive cooling via system airflow |
| Maintenance | Minimal maintenance required |
| Application Scope | Process control, oil & gas, power, and chemical industr |
FAQ
Q1: What is the main function of the 51401583-100 module?
A1: The 51401583-100 enables high-speed communication within Honeywell TDC 3000 control systems.
Q2: What type of signals does the 51401583-100 handle?
A2: The 51401583-100 processes digital communication signals for network data exchange.
Q3: Does the 51401583-100 support industrial environments?
A3: Yes, the 51401583-100 performs reliably in demanding industrial conditions.
Q4: How is the 51401583-100 installed?
A4: The 51401583-100 installs within system racks using backplane connections.
Q5: Is the 51401583-100 available in stock?
A5: We supply brand-new original 51401583-100 modules with available inventory for fast delivery.
Q6: What shipping and return services do you provide?
A6: We ship via DHL and similar carriers within 3 days to 2 weeks and support 30-day returns.
