Overview

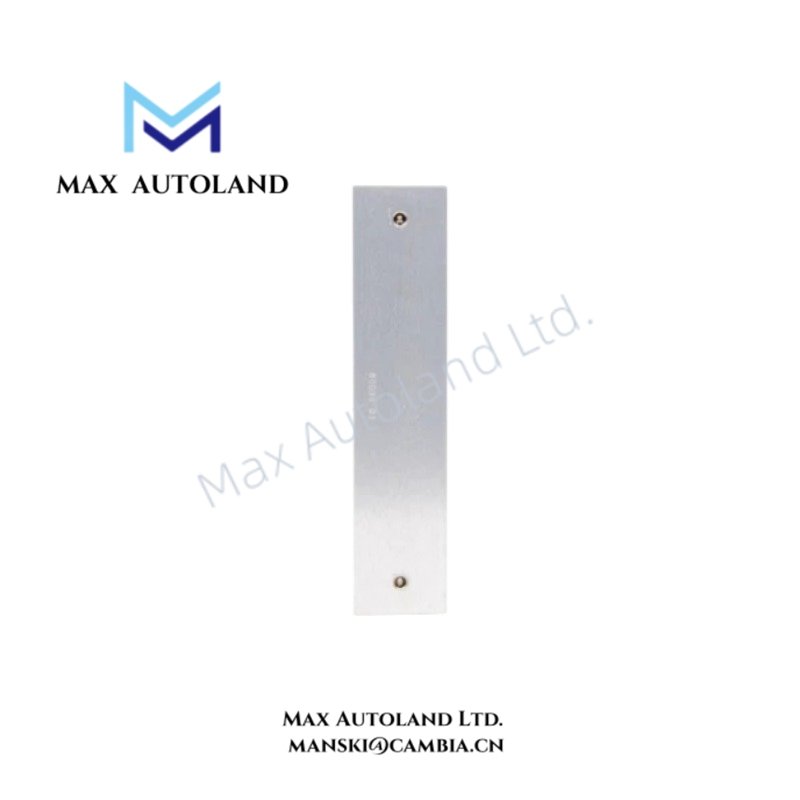

The Bently Nevada 80097-01D, also cataloged within the 80097-01 part family, is a blank slot module used to occupy an unused position in a compatible Bently Nevada rack. Available technical references identify this part as a rack blank rather than a temperature measurement or signal-processing monitor. (AutoModuleXpert Ltd.)
Suffix Breakdown & Model Matrix
| Parameter | Specification |
|---|---|
| Base Model | 80097-01 |
| Full Model | 80097-01D |
| Suffix | D |
| Product Type | Blank Slot Module |
| Rack Function | Unused slot filling |
| Signal Processing | None specified |
| Measurement Channels | None specified |
| Communication Interface | None specified |
| Power Input | None specified |
The available references do not document a manufacturer-defined functional meaning for the -01D suffix. Therefore, the suffix should not be interpreted as a firmware, packaging, or hardware revision without the applicable manufacturer documentation. (AutoModuleXpert Ltd.)
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 80097-01D |
| Brand | Bently Nevada |
| Origin | USA |
| Weight | 181 g reported by one supplier; verify against the supplied unit |
| Dimensions | Not specified in the available technical data |
| Operating Temp | -40 to +85 deg C reported by a supplier; verify against the applicable rack documentation |
| Power Consumption | None; blank module |
| Product Type | Rack Blank Module |
| Primary Function | Occupies an unused rack position |
| Electrical I/O | None specified |
| Communication | None |
| Mounting | Compatible rack slot installation |
Available product references consistently identify 80097-01D as a blank slot module. They do not support the earlier description of this part as a six-channel temperature monitor. (AutoModuleXpert Ltd.)
Rack Installation and Mechanical Function
The 80097-01D performs a mechanical rack-management function rather than a measurement function. It occupies an unused module position and provides a physical cover for the open slot. This prevents direct access to the internal rack area and maintains the intended rack face arrangement. (AutoModuleXpert Ltd.)
Because the module contains no documented measurement channels or signal-processing circuitry, it should not be connected or configured as an active monitor. Temperature sensors, vibration probes, relay outputs, and communication wiring should terminate only on the designated functional modules.
Frequently Asked Questions
Q: Does the 80097-01D provide temperature measurement channels?
A: No. Available technical references identify it as a blank slot module, not a temperature monitor. (AutoModuleXpert Ltd.)
Q: Does the 80097-01D require an electrical power connection?
A: No power or signal connection is specified for the blank module. It functions as a physical rack accessory.
Q: Can the 80097-01D replace an active monitoring module?
A: No. It only occupies an unused rack position and does not provide the measurement, processing, relay, or communication functions of an active monitor.
Field Installation Guidelines
- Confirm the rack model and vacant slot before installation.
- Isolate the equipment according to the site’s maintenance procedure before accessing the rack.
- Insert the blank module into the designated unused position and secure it using the rack’s normal mechanical fastening method.
- Do not connect field signal wiring to the blank module.
- Keep unused wiring isolated from active measurement and communication circuits.
- Maintain the rack’s intended airflow path and physical slot arrangement.
- Verify that the blank module does not interfere with adjacent module extraction or front-panel access.
- Before commissioning, compare the installed part number and suffix with the rack assembly documentation.
