Overview

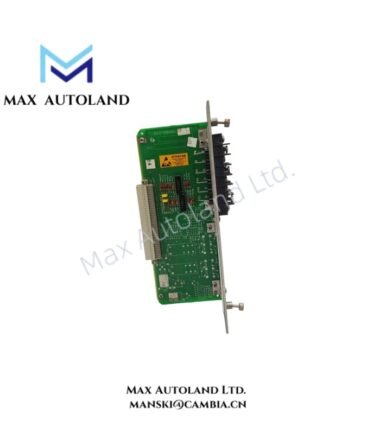

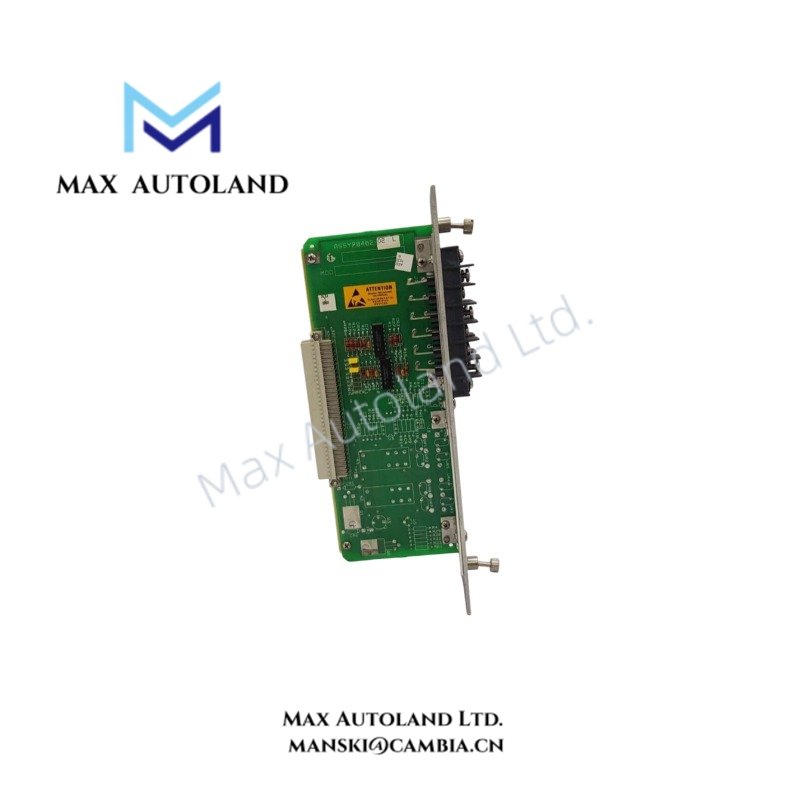

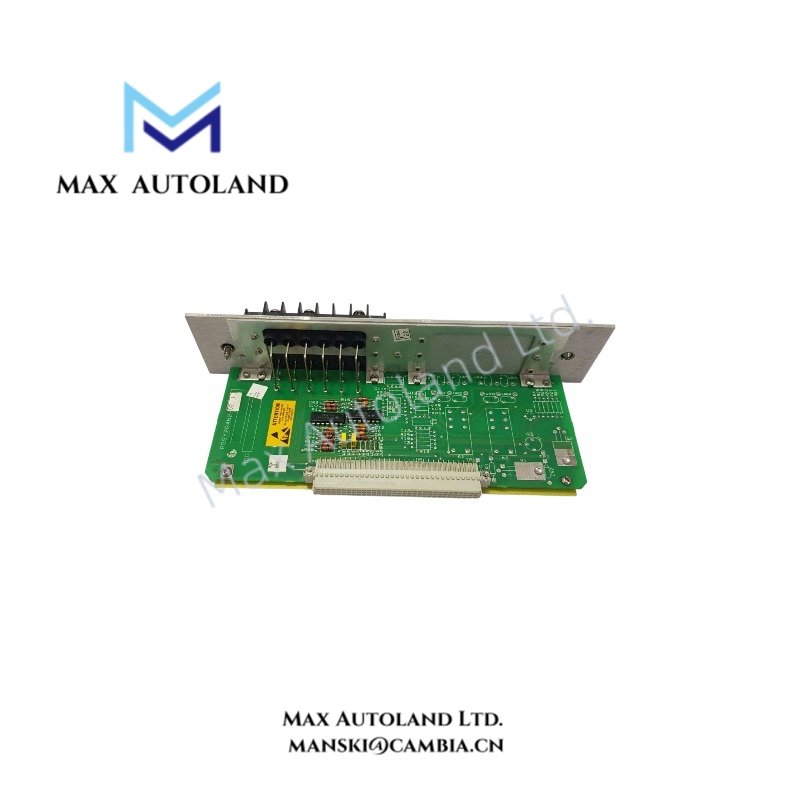

The Bently Nevada 81544-01, also cataloged with spare model 78462-02, is a signal input relay module for the 3300/16 dual vibration monitor. It provides the rear terminal connection path for channel transducer signals and is identified separately from the complete monitor assembly.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 81544-01 |
| Spare Model | 78462-02 |
| Brand | Bently Nevada |
| Product Type | Signal Input Relay Module |
| Documented Assembly | Signal Input Relay Module |
| Compatible Monitor Family | 3300/16 |
| Relay Construction | No relay |
| Buffered Connection | Rear terminal connection for channel transducer signals |
| Quantity in Stock | 9 units |
Mechanical Monitoring Signal Interface
The 81544-01 belongs to the signal interface arrangement associated with the Bently Nevada 3300/16 dual vibration monitor. The assembly handles the physical connection of channel transducer signals through the rear terminal interface.
Because the assembly is identified as having no relay, its function must not be interpreted as an independent relay output module. The installed relay and barrier arrangement must match the existing monitor configuration. Therefore, replacement selection should reference the complete 3300/16 monitor catalog number and applicable modification number.
For eddy-current proximity probe applications, the associated monitoring system determines probe gap voltage and signal scaling. A typical Bently Nevada installation uses negative DC gap voltage targets, but the specific installed monitor and transducer configuration must determine the applicable validation limits.
Frequently Asked Questions
Q: Is the 81544-01 a complete 3300/16 vibration monitor?
A: No. It is a separately identified signal input relay module assembly associated with the 3300/16 monitor family.
Q: Does the 81544-01 contain a relay?
A: The supplied documentation identifies the relay construction as No relay. Verify the installed barrier and relay arrangement before replacement.
Q: How should the correct replacement be selected?
A: Confirm the complete installed 3300/16 monitor catalog number and modification number, then verify that the signal input, relay, and barrier arrangement matches the replacement assembly.
Field Installation Guidelines
- Isolate the associated vibration monitoring system before removing the existing assembly.
- Record the existing 3300/16 monitor catalog number and modification number before replacement.
- Verify the rear terminal wiring against the installed channel transducer configuration.
- Confirm that the replacement assembly matches the installed relay and barrier arrangement.
- Maintain the existing channel identification and signal routing during reconnection.
- Keep transducer signal wiring separated from high-current and high-voltage conductors to reduce electrical interference.
- Maintain cable shielding and grounding according to the installed Bently Nevada system wiring arrangement.
- After installation, verify channel signal continuity and the applicable transducer electrical conditions before returning the monitor to service.
