83792-01 Bently Nevada Quad Relay Module

Overview

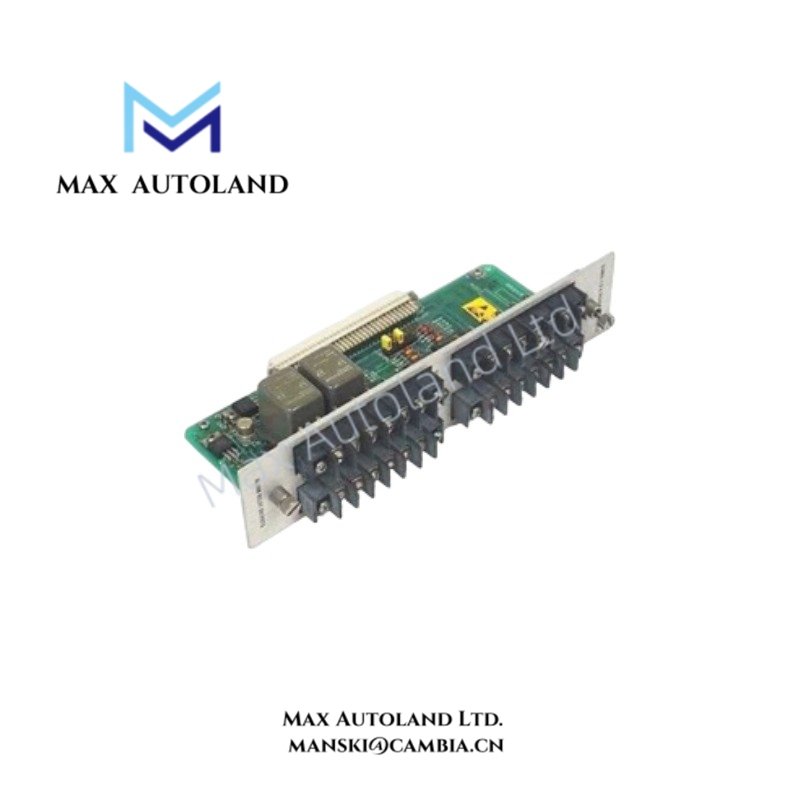

Configured for discrete relay output execution in a Bently Nevada machinery protection architecture, the Bently Nevada 83792-01 (83792-01 Quad Relay Module) provides four independent relay channels for external alarm, annunciation, or shutdown circuits. Available technical listings identify the unit as a Quad Relays Module associated with the Bently Nevada 3500 Series environment. (PLC Masters Ltd.)

Hardware Specifications

The 83792-01 is listed as a four-relay assembly for machinery protection applications. Available specifications identify four independent relay outputs and separate resistive and inductive contact ratings. (PLC Masters Ltd.)

Machinery Protection Relay Interface

The module operates at the discrete-output level rather than directly measuring vibration, position, or temperature. Monitor logic generates an alarm or shutdown state, and the relay assembly transfers that state to an external electrical circuit.

The four relay channels can therefore interface with annunciators, control inputs, or shutdown circuits. However, the specific voting, latching, and AND/OR behavior depends on the installed system configuration and associated monitor logic; these functions should not be assigned to the 83792-01 without configuration documentation.

For Bently Nevada machinery monitoring, relay outputs must be evaluated together with the upstream monitor channel, rack configuration, and external trip circuit. The 3500 architecture separately identifies dedicated 4-channel and 16-channel relay modules, so application documentation should confirm the exact hardware arrangement before replacement. (ControlTech Supply Limited)

Frequently Asked Questions

Q: How many relay channels does the 83792-01 provide?
A: The available product data identifies four independent relay outputs. (PLC Masters Ltd.)

Q: Can the 83792-01 directly measure vibration or shaft position?
A: No. It is identified as a relay output module. Measurement functions are performed by the associated machinery monitoring hardware.

Q: What should be checked before connecting an external shutdown circuit?
A: Verify the installed relay configuration, contact load, circuit voltage, external trip logic, and wiring against the applicable system documentation. Do not exceed the specified relay contact ratings.

Field Installation Guidelines

• Confirm the installed part number and system configuration before replacement.
• Isolate the associated control or shutdown circuit before removing or wiring the relay assembly.
• Verify each relay channel against the corresponding terminal assignment and external circuit drawing.
• Keep relay wiring separated from low-level vibration, proximity, and other measurement signal wiring where practical.
• Route external trip and alarm conductors according to the plant grounding and segregation requirements.
• Connect cable shields according to the system wiring specification. Avoid creating unintended shield ground loops.
• Check the external load voltage and current before energizing each relay circuit.
• Verify normally open and normally closed contact states against the approved shutdown logic.
• Perform continuity and functional checks after installation and before returning the machinery protection circuit to service.
• Do not infer unsupported hot-swap, redundancy, firmware, or switching-delay characteristics from the part number alone.
