Overview
Suffix Breakdown & Model Matrix

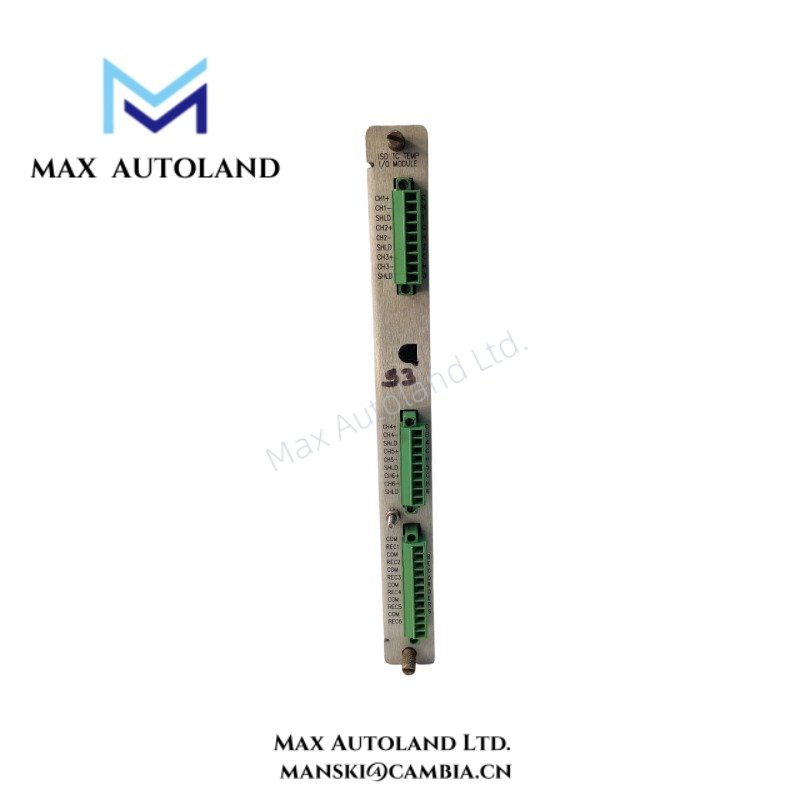

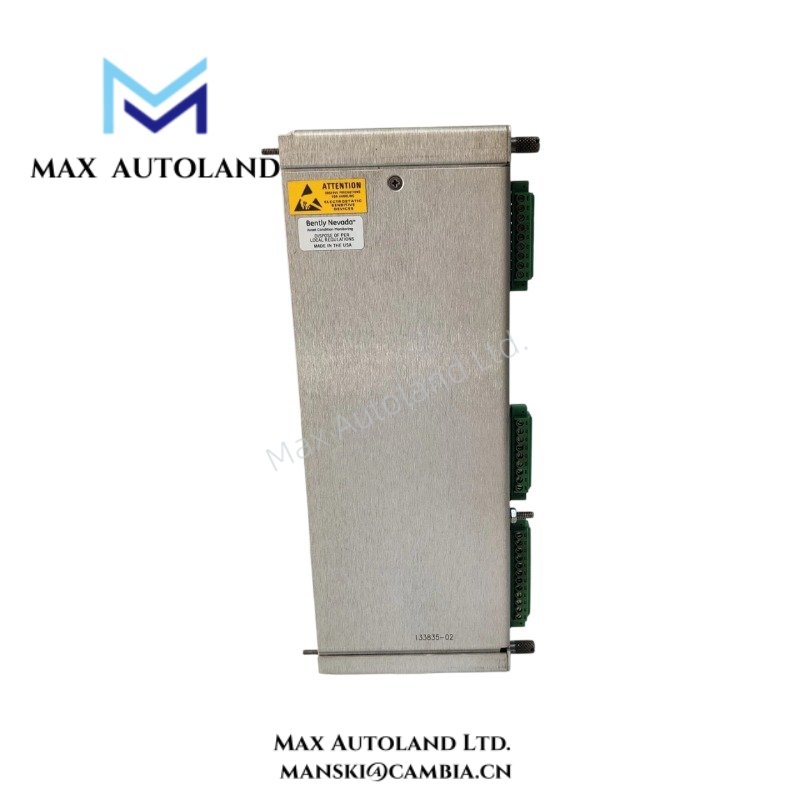

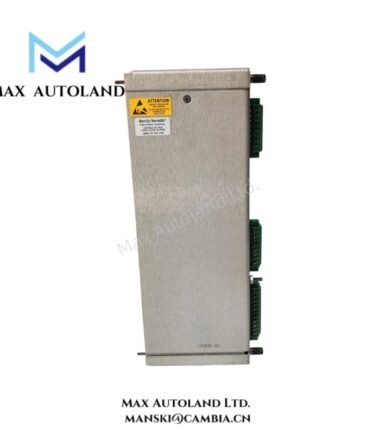

The supplied documentation identifies 133835-02 as a fixed ordering configuration for the 3500/61 TC Isolated I/O Module with Internal Terminations. No additional suffix decomposition is explicitly defined in the referenced source.
135322-01 Bently Nevada Dual Thrust Monitor, Brand New, Original Stock, Global Shipping. Compatible with 3300 XL 8 mm proximity transducer systems.
Specifications
| ParameterSpecification | |
| Model | 133835-02 |
| Brand | Bently Nevada |
| Origin | Baker Hughes / Bently Nevada |
| Product Type | Temperature Monitor I/O Modules |
| Associated Platform | Bently Nevada 3500/61 |
| Module Function | TC isolated input / internal termination interface |
| Input Type | Thermocouple temperature signals |
| Termination Style | Internal terminations |
| Isolation Method | Isolated signal handling architecture |
| Dimensions | Not specified in source data |
| Weight | Not specified in source data |
| Operating Temp | Refer to 3500 rack environmental specifications |
| Power Consumption | Depends on rack and module configuration |
Eddy-Current Signal Separation and Cross-Talk Suppression
Within Bently Nevada monitoring architectures, signal integrity management remains linked to channel isolation and noise control practices. Although the 3500/61 processes temperature measurements rather than shaft displacement signals, installation practices follow the same machinery monitoring discipline applied across TSI environments.
Cross-talk suppression depends on controlled cable routing, shield continuity, and separation from switching conductors. Signal path stability improves when thermocouple wiring remains isolated from relay outputs, drive cables, and high-current power conductors.
Grounding topology should follow single-reference rack practices to reduce unintended loop current behavior across measurement channels.
Frequently Asked Questions
Q: Does the 133835-02 module support field hot replacement during energized rack operation?
A: Hot-swap behavior must follow the applicable 3500 rack maintenance procedure. Module insertion and extraction practices depend on system configuration and site operational requirements.
Q: Are shielded thermocouple cables required for installation?
A: Shielded instrumentation cabling is typically applied for thermocouple signal paths. Cable routing should minimize electromagnetic coupling from adjacent power wiring.
Q: Does the internal termination version eliminate external field wiring requirements?
A: No. Field sensor conductors still require proper landing and routing. Internal termination refers to the module termination arrangement within the monitoring assembly.
Field Installation Guidelines
Confirm thermocouple polarity before conductor termination. Incorrect polarity introduces inverse temperature response behavior at the measurement channel.
Maintain physical separation between low-level temperature signal wiring and motor feeders, contactor bundles, and variable frequency drive output conductors.
Terminate cable shields according to rack grounding practice. Avoid multiple shield ground points unless site documentation explicitly defines alternate bonding requirements.
Inspect terminal retention torque and conductor strain relief before rack energization. Mechanical movement at termination points can introduce intermittent measurement variation.
