Overview

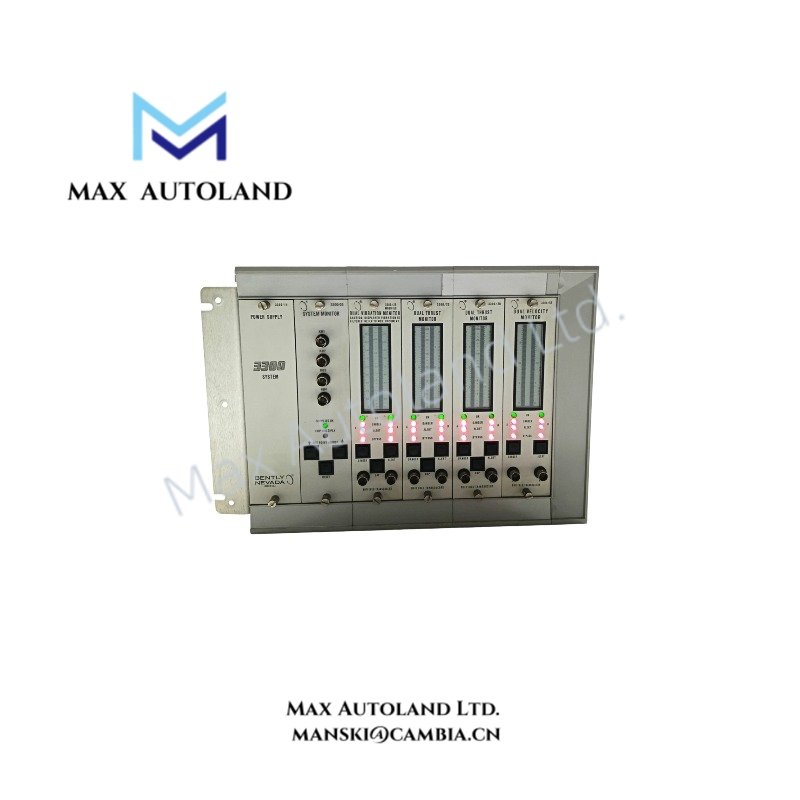

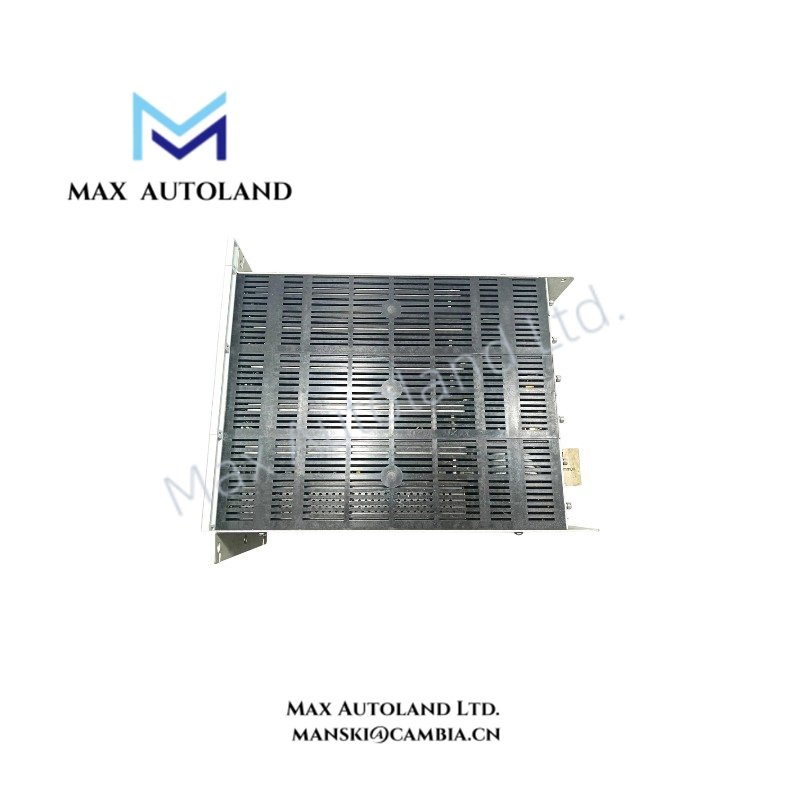

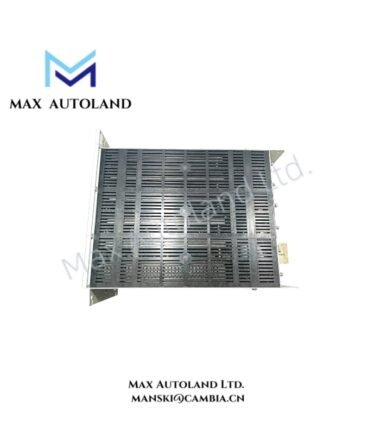

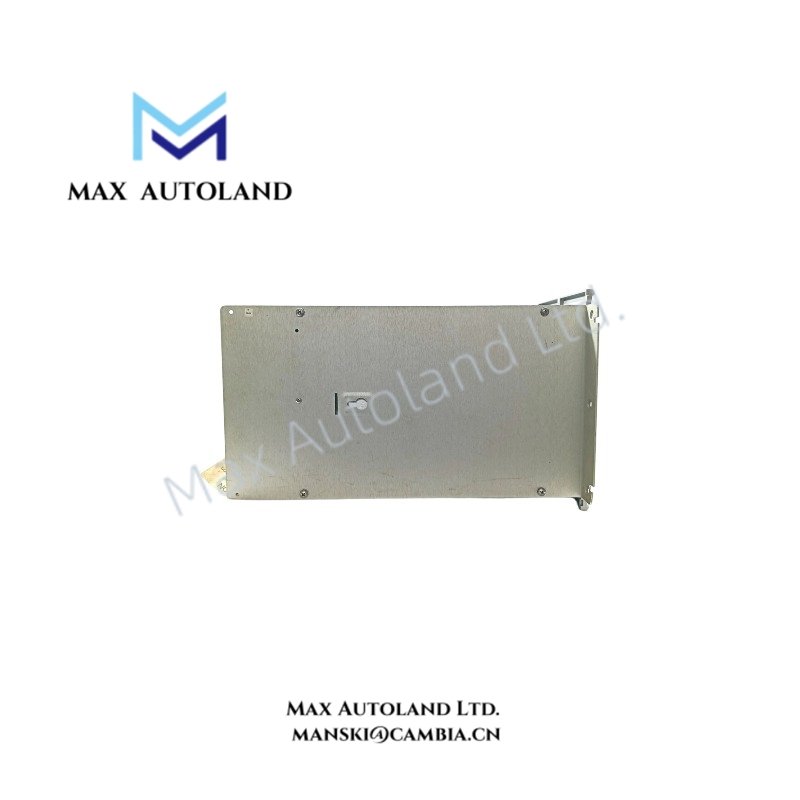

The Bently Nevada 3300/05-22-00-00, also cataloged as the 3300/05 System Rack, provides the mechanical enclosure and backplane interface for Bently Nevada 3300 Machinery Monitoring System modules.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3300/05-22-00-00 |
| Brand | Bently Nevada |
| Product Type | Machinery Monitoring System Rack |
| System Platform | Bently Nevada 3300 Series |
| Rack Capacity | 6 positions total |
| Slot Allocation | Slot 1 Power Supply, Slot 2 System Monitor, Slots 3 to 6 Monitoring Modules |
| Backplane Type | Printed circuit board backplane |
| Module Interface | Supports 3300 monitoring cards and rear termination assemblies |
| Construction Material | Injection-molded plastic frame with conductive anti-static properties |
| Mounting Type | Standard panel/surface mount configuration |
| Agency Approval | No agency approval required |
| Operating Temp | 0 deg C to +65 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Humidity Rating | Up to 95% non-condensing |
| Power Consumption | Determined by installed power supply and monitoring modules |
Eddy-Current Signal Interface and Rotor Monitoring Architecture
The Bently Nevada 3300/05-22-00-00 rack provides the physical platform for integrating vibration, position, speed, and Keyphasor monitoring modules. Therefore, the backplane transfers module power and internal communication signals without additional rack wiring.
The rack supports Bently Nevada TSI functions where installed monitoring cards process eddy-current probe signals, including probe scaling and gap voltage validation. Additionally, installed modules can apply rotor dynamics monitoring functions such as shaft vibration analysis and rotational behavior evaluation.
The conductive rack structure reduces electrostatic interference during signal transmission. Furthermore, proper shield termination and grounding practices help maintain measurement integrity for low-level machinery monitoring signals.
Frequently Asked Questions
Q: Does the 3300/05-22-00-00 rack support hot-swapping of monitoring modules?
A: The rack design supports modular card installation and replacement. However, the installed monitoring modules and system operating procedures must define whether live replacement is permitted.
Q: Which modules occupy the six rack positions?
A: Slot 1 is assigned to the 3300 power supply module, Slot 2 is assigned to the system monitor, and Slots 3 to 6 accept individual monitoring modules.
Q: Does the rack require internal field wiring between monitoring cards?
A: No. The rack uses a printed circuit backplane to provide internal electrical connections between installed modules.
Field Installation Guidelines
- Install the rack on a rigid panel or approved enclosure surface to prevent mechanical stress on the backplane assembly.
- Maintain separation between probe signal wiring and high-current power conductors to reduce electromagnetic interference.
- Connect cable shields according to the system grounding design and avoid multiple grounding points that may create ground loops.
- Verify module slot allocation before installation because the power supply and system monitor require dedicated positions.
- Inspect rear termination connections before energizing the rack to confirm proper signal routing and connector engagement.
- Confirm environmental conditions remain within the specified operating temperature and humidity limits before continuous operation.
