Overview

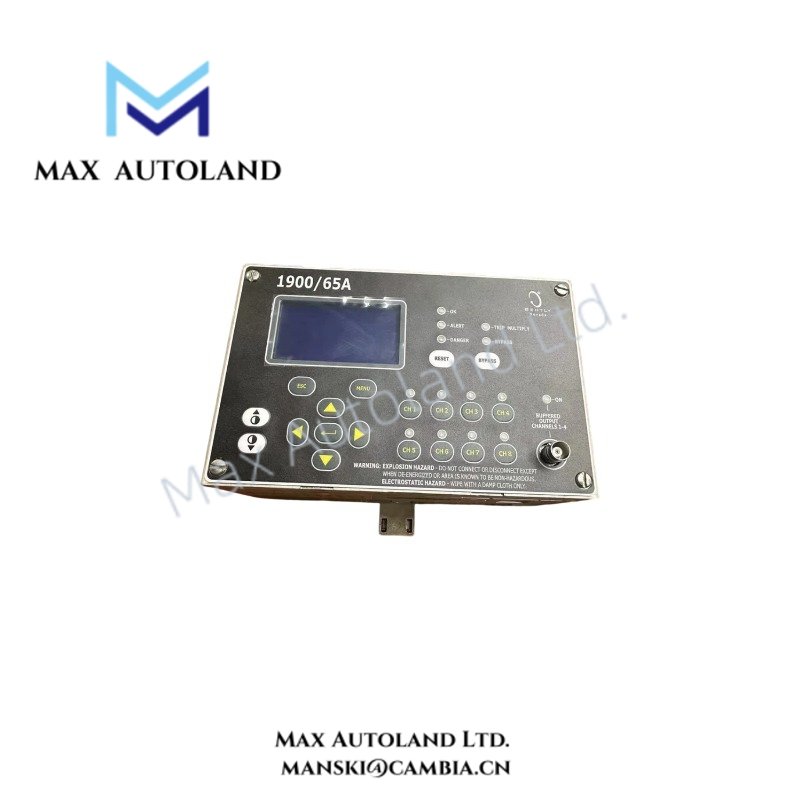

The Bently Nevada 1900/65A-01-01-03-00-01, also cataloged as the 1900/65A General Purpose Equipment Monitor, operates as a dedicated hardware component for continuous vibration, temperature, relay status, and analog signal monitoring within machinery protection systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1900/65A-01-01-03-00-01 |
| Brand | Bently Nevada (Baker Hughes) |
| Origin | USA |
| Product Type | General Purpose Equipment Monitors |
| Monitoring Function | Continuous machinery condition monitoring and protection |
| Transducer Inputs | 4 software-configurable channels for 2-wire and 3-wire accelerometers, velocity sensors, or proximity sensors |
| Temperature Inputs | 4 channels supporting Type E, J, K, T thermocouples and 2-wire or 3-wire RTDs |
| Relay Outputs | 6 programmable relays for OK, Alert, and Danger states |
| Analog Recorder Outputs | 4 channels, 4-20 mA output signals |
| Buffered Outputs | Individual raw signal buffered output for each transducer channel |
| Communications | Modbus communication through 10BaseT/100BaseTX Ethernet and configurable RS232/485 serial interface |
| Power Input | 110 to 220 VAC, 50 to 60 Hz, external power supply |
| Display Interface | Front-panel display with keypad for local monitoring and configuration |
| Enclosure | Fiberglass NEMA 4X / IP66 weatherproof housing with viewing window |
| Mounting Type | Panel or field enclosure mounting |
Eddy-Current Signal Processing and Rotor Monitoring Features
The 1900/65A monitor processes dynamic machine signals from vibration and displacement transducers through configurable input channels. Therefore, the unit supports direct integration with eddy-current probe systems used for shaft displacement measurement and rotor condition evaluation.
The input configuration allows technicians to define sensor types, scaling parameters, and alarm thresholds according to the installed transducer characteristics. Additionally, the system supports gap voltage validation procedures for compatible proximity probes, including verification against typical -10 VDC gap voltage targets.
The monitor applies signal conditioning methods for machinery measurements, including vibration amplitude evaluation, rotor displacement tracking, and cross-talk suppression between measurement channels. These functions support mechanical condition analysis for rotating equipment circuits.
Frequently Asked Questions
Q: Does the 1900/65A support proximity probe inputs for shaft displacement monitoring?
A: Yes. The monitor provides configurable transducer inputs that support proximity sensors, including signal processing for displacement measurement applications.
Q: Can the relay outputs be configured for different machine protection states?
A: Yes. The six programmable relays can be configured for OK, Alert, and Danger conditions according to monitoring requirements.
Q: What communication interfaces are available on the 1900/65A-01-01-03-00-01?
A: The unit provides Modbus communication through Ethernet and a software-configurable RS232/485 serial interface.
Field Installation Guidelines
Install the 1900/65A enclosure on a rigid mounting surface that minimizes mechanical vibration transfer to the monitoring hardware.
Connect transducer cables using shielded instrumentation wiring. Ground cable shields according to site grounding practices to reduce electromagnetic interference and measurement noise.
Separate sensor signal cables from high-voltage power wiring and switching circuits. Maintain proper cable routing to prevent induced electrical noise from affecting vibration and temperature measurements.
Verify sensor polarity, channel configuration, and input scaling before commissioning. For eddy-current probe applications, confirm probe wiring, extension cable compatibility, and gap voltage calibration before enabling alarm functions.
Use the Ethernet or RS232/485 interface only after completing communication parameter configuration, including Modbus addressing and serial communication settings.
