Overview
Specification
| Parameter | Specification |
|---|---|

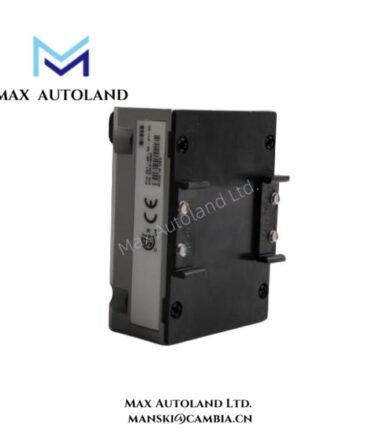

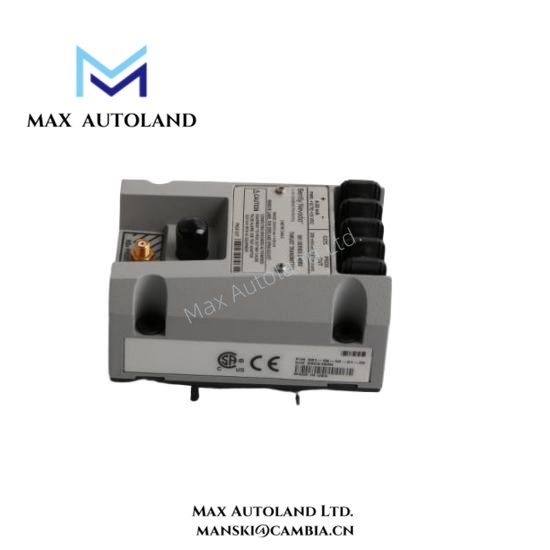

| Model Number | 991-06-50-01-00 |
| Product Type | Vibration / Thrust Signal Transmitter |
| Input Signal | Proximity probe input (Bently Nevada compatible) |
| Measurement Type | Relative vibration or thrust position |
| Output Signal | 4–20 mA, loop-powered (2-wire) |
| Power Supply | 18–30 VDC (24 VDC nominal) |
| Measurement Range | Configurable, application-dependent |
| Linearity | ±1% of full-scale output |
| Response Time | ≤ 1 second typical |
| Frequency Response | Suitable for rotating machinery vibration monitoring |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +95°C |
| Mounting Method | 35 mm DIN rail clips included |
| Enclosure | Industrial-grade metal housing |
| Environmental Protection | Designed for harsh industrial environments |
| System Compatibility | Integrates with Bently Nevada proximity probes and monitoring systems |
FAQ
A1: It supports vibration or thrust-related measurements using compatible Bently Nevada proximity probes.
Q2: Does this transmitter require an external power supply?
A2: Yes, it uses a 2-wire loop-powered 4–20 mA supply, typically 24 VDC.
Q3: Can it integrate with existing Bently Nevada systems?
A3: Yes, it integrates seamlessly with Bently Nevada probes and monitoring infrastructures.
Q4: Is DIN rail mounting included?
A4: Yes, the unit includes 35 mm DIN rail clips for fast and secure control panel installation.
Q5: What industries commonly use this transmitter?
A5: Power generation, oil and gas, petrochemical, manufacturing, and heavy industrial applications.
Q6: Is this suitable for harsh industrial environments?
A6: Yes, the rugged enclosure supports reliable operation under vibration, temperature extremes, and electrical noise.
