Overview

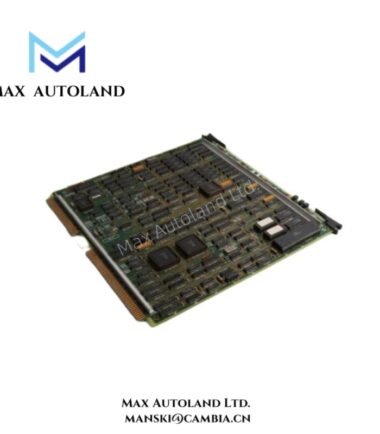

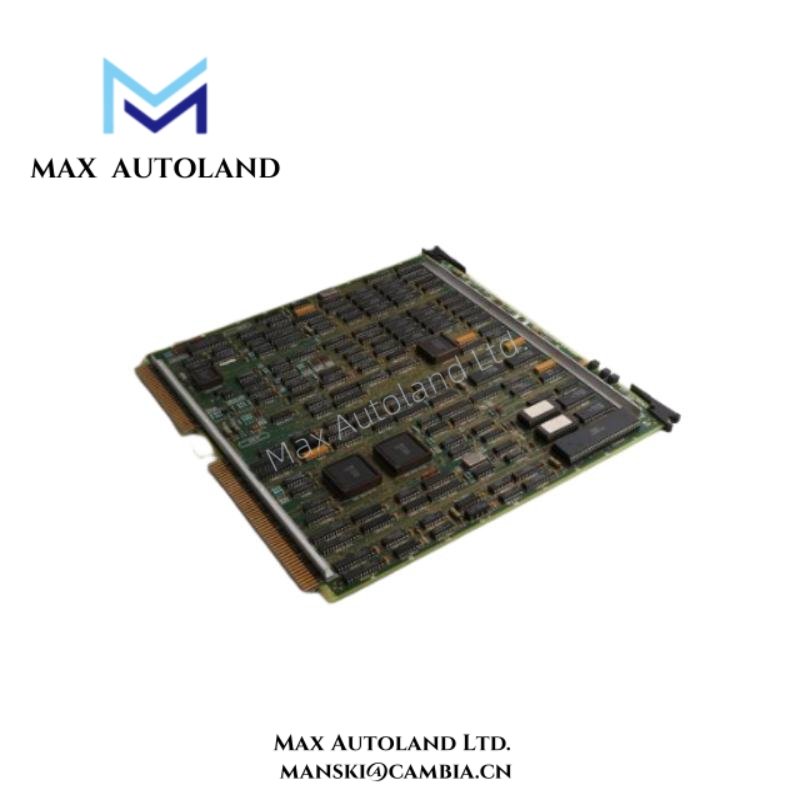

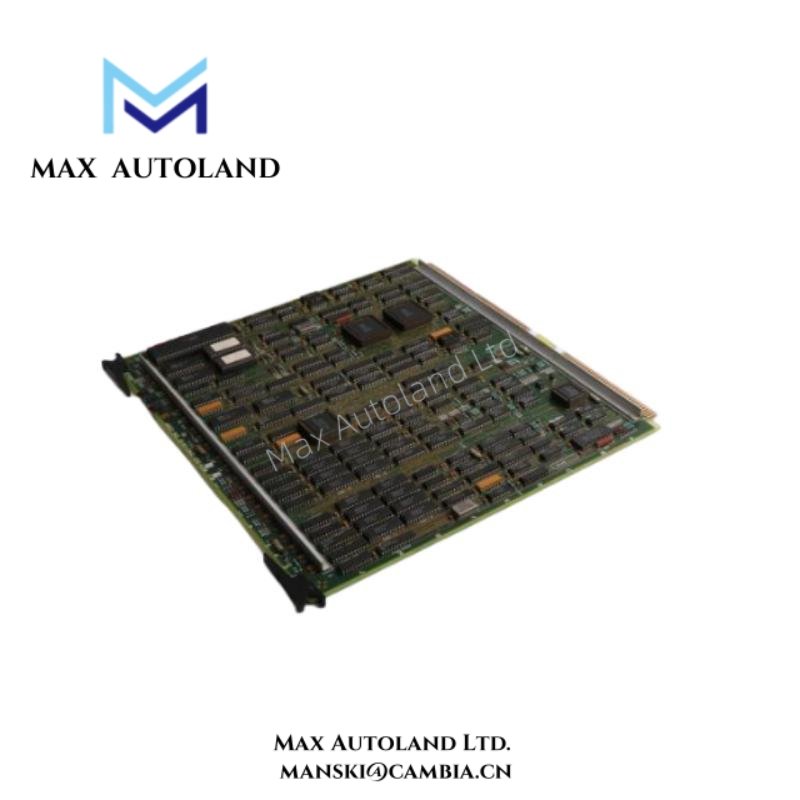

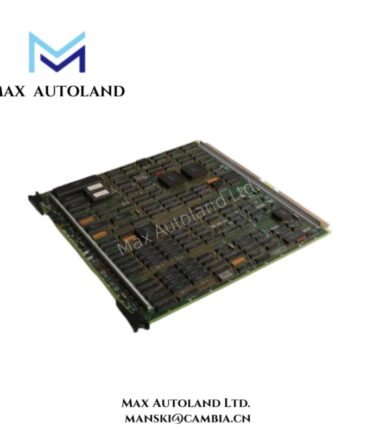

It enables clear visualization of process information within legacy TDC 3000 environments supporting continuous industrial operations.
Moreover, this display generator improves operator awareness by converting system data into stable, readable visual signals.
Therefore, many plants retain the 51401286-100 to maintain consistent human-machine interaction across mature control architectures.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 51401286-100 |
| Series | Honeywell TDC 3000 |
| Product Type | Enhanced Peripheral Display Generator |
| Primary Function | Display signal generation for operator peripherals |
| Form Factor | 6U Eurocard industrial control board |
| Approximate Dimensions | 233 mm × 160 mm × 20 mm |
| Approximate Weight | 0.5–0.7 kg |
| Mounting Method | Direct insertion into TDC 3000 system rack |
| System Interface | Proprietary TDC 3000 backplane bus |
| Display Output | Digital display control and video signal generation |
| Processing Logic | Dedicated onboard display control logic |
| Onboard Components | Display controllers, digital ICs, signal conditioning circuits |
| Memory Type | Fixed onboard memory for display operations |
| Energy Storage | No onboard battery or capacitor-based energy storage |
| Power Source | Supplied through TDC 3000 rack backplane |
| Cooling Method | Passive cooling via cabinet airflow |
| Operating Mode | Continuous industrial duty cycle |
| System Compatibility | Exclusively compatible with Honeywell TDC 3000 systems |
FAQ
Q1: Is the 51401286-100 Enhanced Peripheral Display Generator brand new and original?
Yes, this unit is brand new, original factory product, and supplied in original condition.
Q2: Do you have the 51401286-100 available in stock?
Yes, we maintain available stock for immediate and planned industrial automation projects.
Q3: What is the typical delivery timeframe after placing an order?
We ship within three days to two weeks, depending on order quantity and processing requirements.
Q4: Which logistics carriers do you normally use for shipment?
We typically use DHL and other reliable international industrial logistics providers.
Q5: What happens if the product has a quality issue?
If quality problems occur, we support returns within 30 days according to our service policy.
