Overview
Specification
| Parameter | Specification |
|---|---|

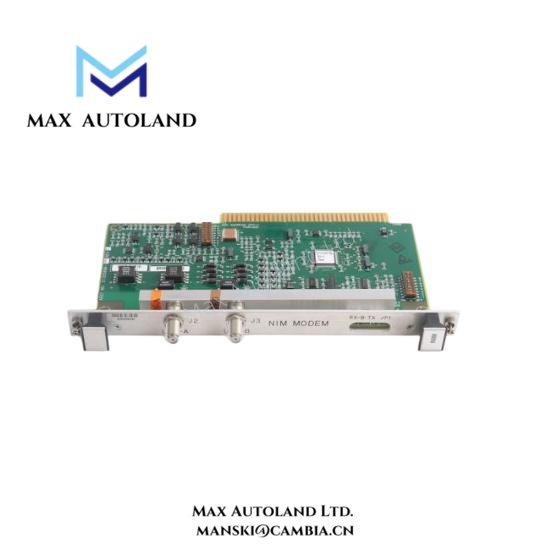

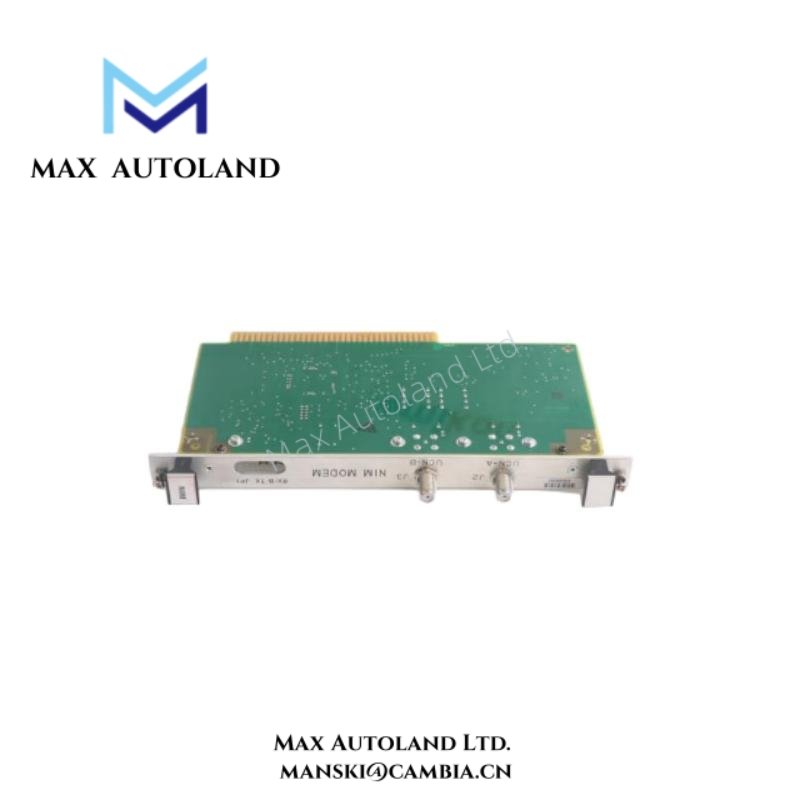

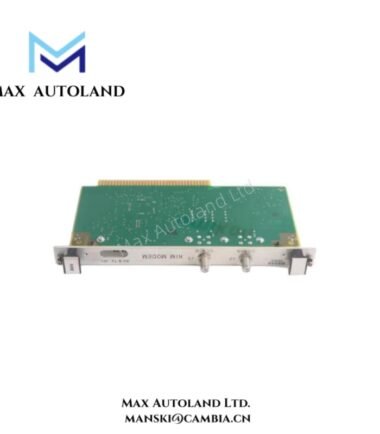

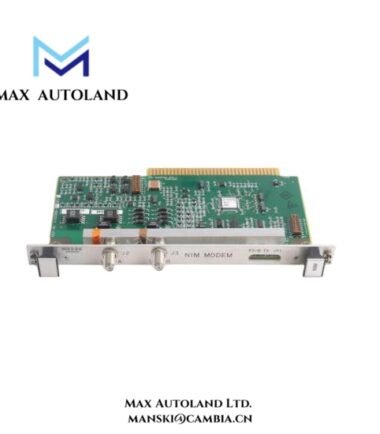

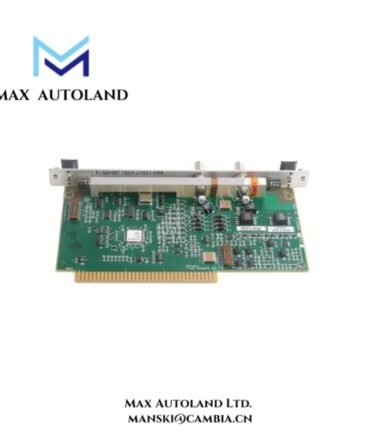

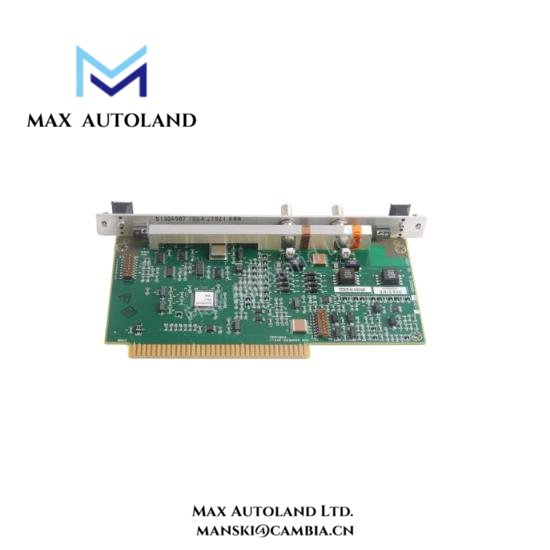

| Module Name | Honeywell 51305896-200 NIM Modem CE Power Contractor |
| Module Type | Network Interface Module (NIM) Power Contractor |
| System Compatibility | Honeywell TDC 3000 Distributed Control System |
| Function | Provides reliable power switching and signal coordination for NIM modules |
| Input Voltage | 24 V DC nominal (check installation documentation) |
| Max Current | 5 A continuous |
| Switching Type | Electromechanical relay switching for network modules |
| Communication Interface | Compatible with TDC 3000 NIM serial connections |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5–95 % RH, non-condensing |
| Mounting | Standard industrial rack or chassis installation |
| Safety & Compliance | CE certified; designed for industrial control environments |
| Reliability Features | EMI/RFI resistance, short-circuit protection, continuous duty rating |
| Dimensions | Compact PCB design for easy rack integration |
| Maintenance | Modular design allows quick replacement and hot-swappable installation |
FAQ
Q1: What is the primary function of this module?
It provides reliable power switching and signal coordination for TDC 3000 NIM modules.
Q2: Is it compatible with existing Honeywell racks?
Yes, it integrates directly into standard industrial racks or TDC 3000 chassis.
Q3: What is the operating voltage and current?
Nominal 24 V DC input with a maximum continuous current of 5 A.
Q4: Can this module withstand harsh industrial conditions?
Yes, it is CE certified and designed for EMI/RFI resistance and continuous operation.
Q5: Is maintenance complicated?
No, the modular design allows quick replacement and hot-swappable installation.
