Overview
It ensures accurate communication between controllers, sensors, and actuators for consistent process monitoring.
Moreover, this module supports continuous industrial operation, which enhances overall system reliability in demanding environments.
Automation engineers prefer this board because it integrates directly into existing TDC 3000 racks without additional configuration.
Specification
| Parameter | Description |
|---|---|
| Manufacturer | Honeywell |
| Product Series | TDC 3000 |

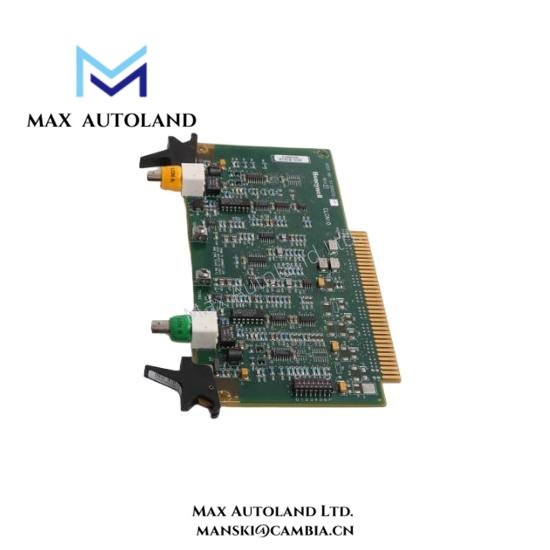

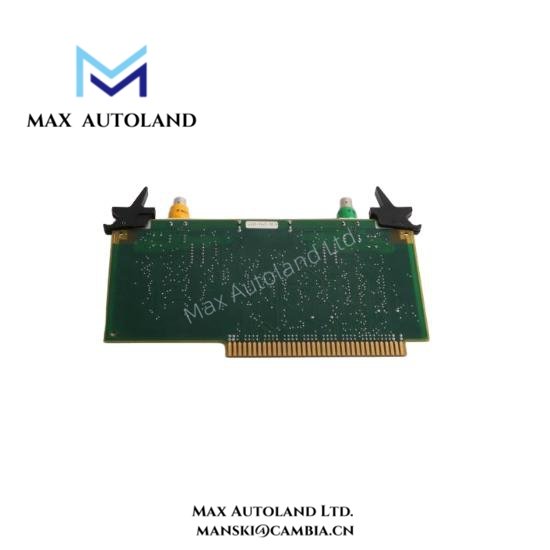

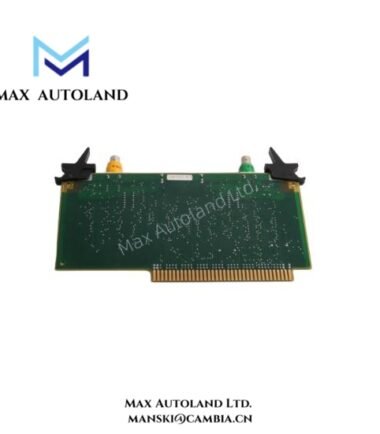

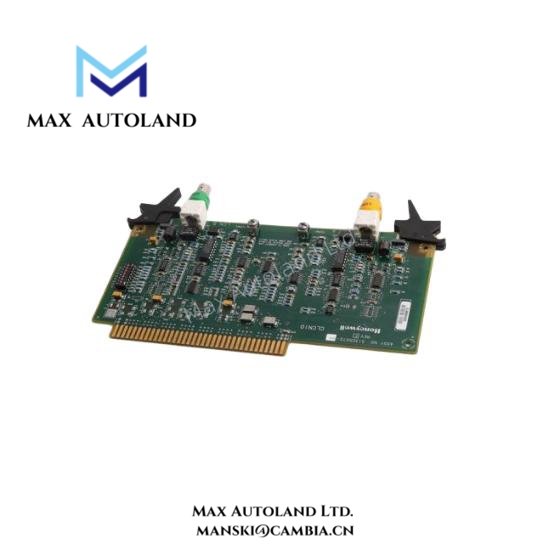

| Model Number | 51305072-400 |
| Module Type | Input/Output Board |
| Function | Provides digital and analog input/output interface for field devices |
| Input Channels | Multiple configurable digital and analog inputs |
| Output Channels | Multiple configurable digital and analog outputs |
| Signal Types | Voltage/current analog, digital on/off |
| System Compatibility | Honeywell TDC 3000 Distributed Control System |
| Installation Type | Rack-mounted within standard TDC 3000 chassis |
| Operating Voltage | 24 VDC typical industrial control power |
| Power Consumption | Low-power design suitable for continuous operation |
| Operating Temperature | 0 °C to +60 °C standard industrial range |
| Storage Temperature | -40 °C to +85 °C |
| Humidity Range | 5 %–95 % RH, non-condensing |
| Environmental Rating | Designed for industrial automation environments |
| Maintenance | Modular replacement minimizes downtime |
| Lifecycle Role | Supports legacy system I/O and control continuity |
FAQ
Q1: What is the main function of the 51305072-400 Input/Output Board?
It provides reliable digital and analog input/output interface for field devices in TDC 3000 systems.
Q2: Is this module compatible with all TDC 3000 systems?
Yes, it integrates directly into standard Honeywell TDC 3000 distributed control system racks.
Q3: Does replacing this module require software changes?
In most installations, technicians can replace it without modifying existing control logic or system settings.
Q4: What types of devices can this board handle?
Moreover, it supports digital sensors, analog transducers, and actuators within industrial automation applications.
Q5: Is this module suitable for continuous operation?
Yes, it is designed to operate continuously under demanding industrial conditions.
Q6: Why is this module important for legacy system maintenance?
Therefore, it allows plants to maintain TDC 3000 field I/O functionality without full system upgrades.
