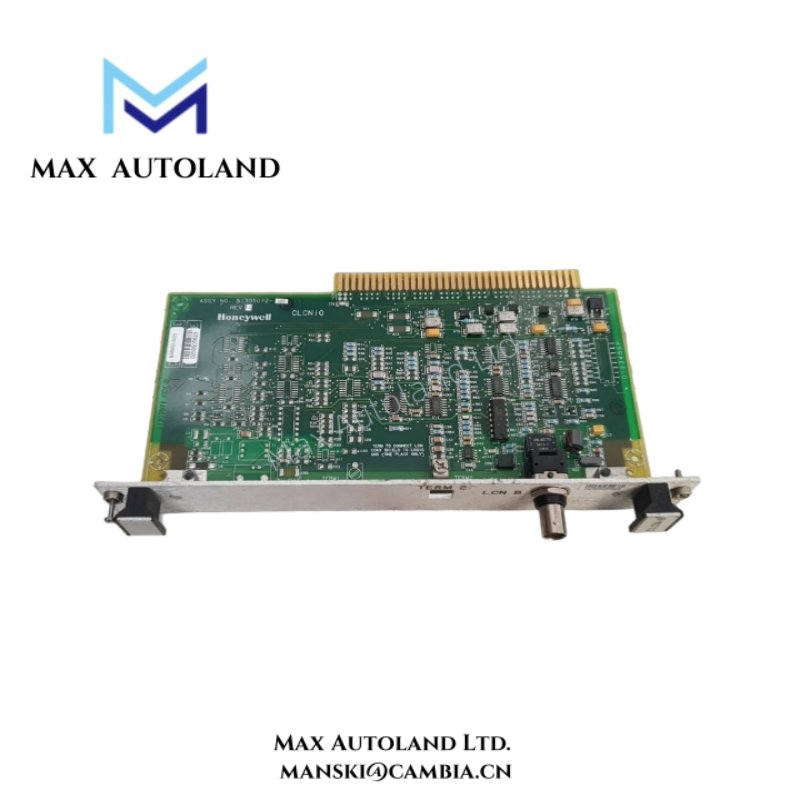

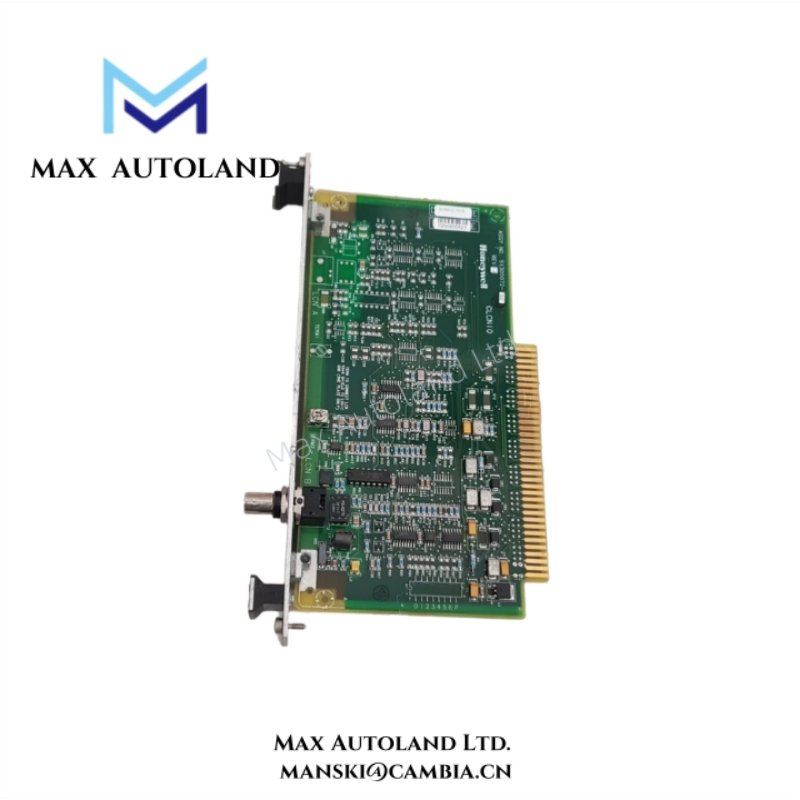

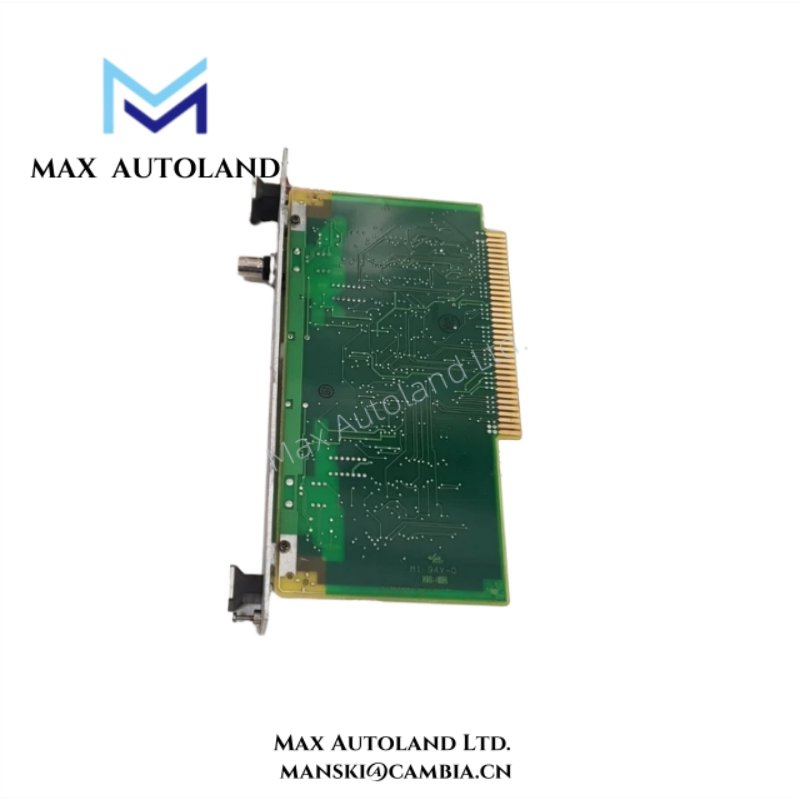

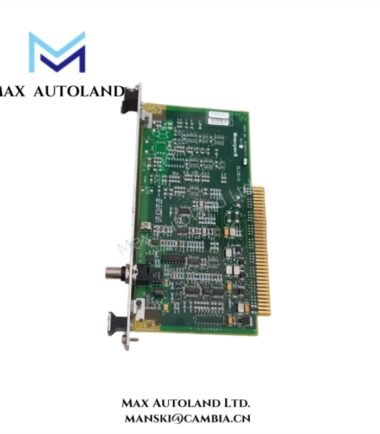

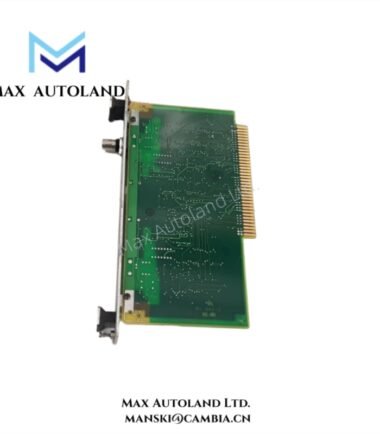

Overview
It facilitates precise signal exchange between field devices and controllers, ensuring accurate process monitoring and control.
Moreover, this module supports continuous industrial operation, enhancing system reliability in demanding environments.
Control engineers appreciate this board because it integrates directly into existing TDC 3000 racks without software reprogramming.
Specification
| Parameter | Description |
|---|---|
| Manufacturer | Honeywell |
| Product Series | TDC 3000 |
| Model Number | 51305072-300 |
| Module Type | Printed Circuit Board / I/O Card |
| Primary Function | Provides digital and analog I/O interface for field devices |
| Input Channels | Multiple configurable digital and analog inputs |
| Output Channels | Multiple configurable digital and analog outputs |
| Signal Types | Voltage/current analog, digital on/off |
| System Compatibility | Honeywell TDC 3000 Distributed Control System |
| Installation | Rack-mounted within TDC 3000 chassis |
| Operating Voltage | 24 VDC typical industrial control power |
| Power Consumption | Low-power design suitable for continuous operation |
| Operating Temperature | 0 °C to +60 °C industrial range |
| Storage Temperature | -40 °C to +85 °C |
| Humidity Range | 5 %–95 % RH, non-condensing |
| Environmental Rating | Designed for industrial automation environments |
| Maintenance | Modular replacement minimizes downtime |
| Lifecycle Role | Supports legacy system I/O and control continuity |
FAQ
Q1: What is the main function of the 51305072-300 I/O Card?
It provides digital and analog input/output interface for field devices in TDC 3000 systems.
Q2: Is this module compatible with all TDC 3000 systems?
Yes, it integrates directly into standard Honeywell TDC 3000 distributed control system racks.
Q3: Does replacing this module require software changes?
In most installations, technicians can replace it without modifying control logic or system configuration.
Q4: What types of devices can this I/O card handle?
Moreover, it supports digital sensors, analog transducers, and actuators within industrial automation processes.
Q5: Is this module suitable for continuous operation?
Yes, it is designed for continuous duty in demanding industrial environments.
Q6: Why is this module important for legacy system maintenance?
Therefore, it extends the operational life of TDC 3000 systems without requiring full system upgrades.
