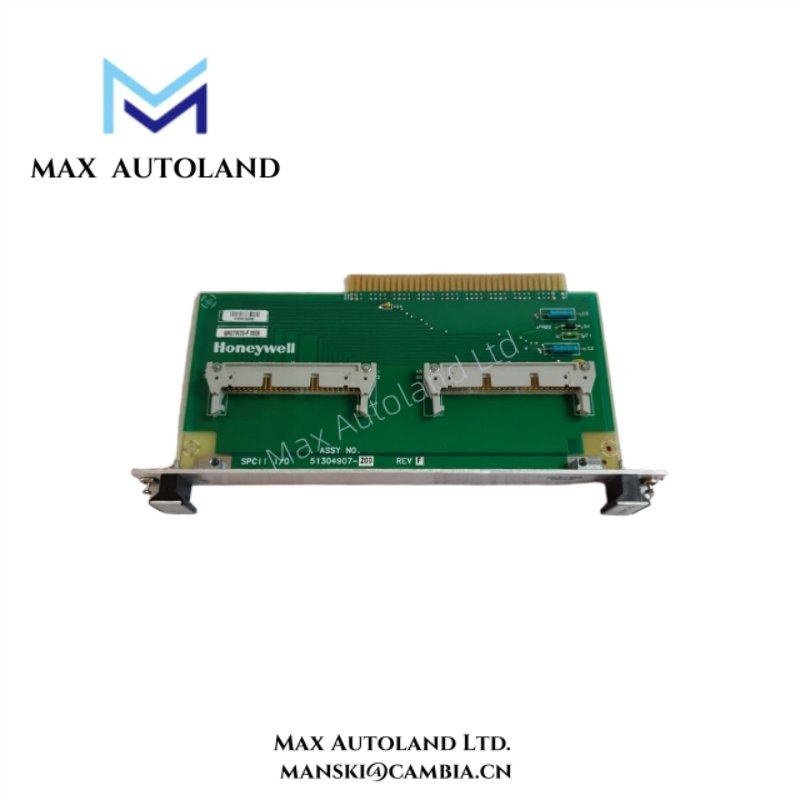

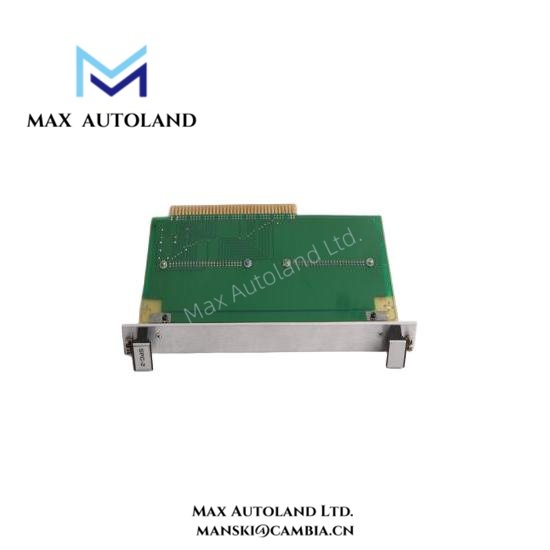

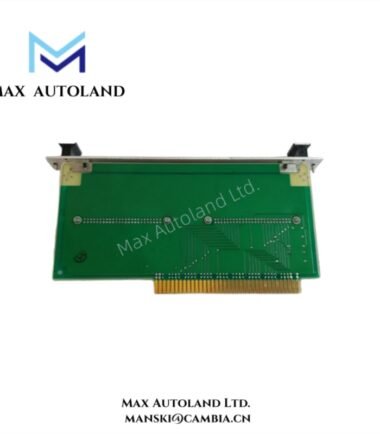

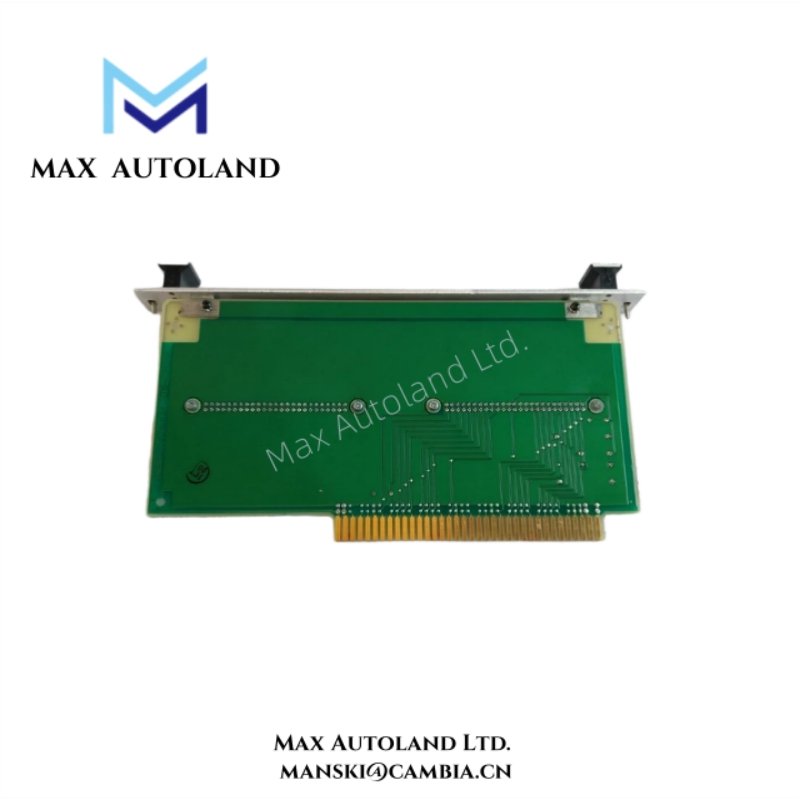

Overview
It provides seamless data transfer from controllers to connected printers, ensuring accurate logging of process data and reports.
Moreover, the module supports continuous operation in industrial environments, which enhances plant documentation reliability.
Automation engineers value this board because it integrates directly into existing TDC 3000 racks without additional configuration changes.
Specification
| Parameter | Description |
|---|---|
| Manufacturer | Honeywell |
| Product Series | TDC 3000 |
| Model Number | 51304907-200 |
| Module Type | Printer Interface Board |
| Primary Function | Provides communication between TDC 3000 controllers and industrial printers |
| Supported Printers | Serial or parallel industrial printers (depending on system configuration) |
| System Compatibility | Honeywell TDC 3000 Distributed Control System |
| Installation Type | Rack-mounted within TDC 3000 chassis |
| Communication Interface | Serial, parallel, or proprietary TDC interface |
| Data Transfer Rate | Supports high-speed data logging and printing |
| Operating Voltage | 24 VDC typical control power |
| Power Consumption | Low-power design for continuous operation |
| Operating Temperature | 0 °C to +60 °C typical industrial range |
| Storage Temperature | -40 °C to +85 °C |
| Humidity Range | 5 %–95 % RH, non-condensing |
| Maintenance | Modular replacement minimizes downtime |
| Lifecycle Role | Supports legacy TDC 3000 printing and system documentation |
FAQ
Q1: What is the primary function of the 51304907-200 Printer Interface Board?
It enables reliable communication between TDC 3000 controllers and industrial printers for process data logging.
Q2: Is this board compatible with all TDC 3000 systems?
Yes, it integrates directly into standard Honeywell TDC 3000 distributed control system racks.
Q3: Does replacing this board require software reconfiguration?
In most cases, technicians can replace it without changing existing control logic or printer settings.
Q4: What types of printers are supported?
Moreover, it supports serial, parallel, and compatible industrial printers depending on system configuration.
Q5: Is this board suitable for continuous industrial operation?
Yes, it is designed to operate continuously in industrial automation and process control environments.
Q6: Why is this module important for legacy systems?
Therefore, it allows plants to maintain TDC 3000 printing capabilities without requiring full system upgrades.
