Overview

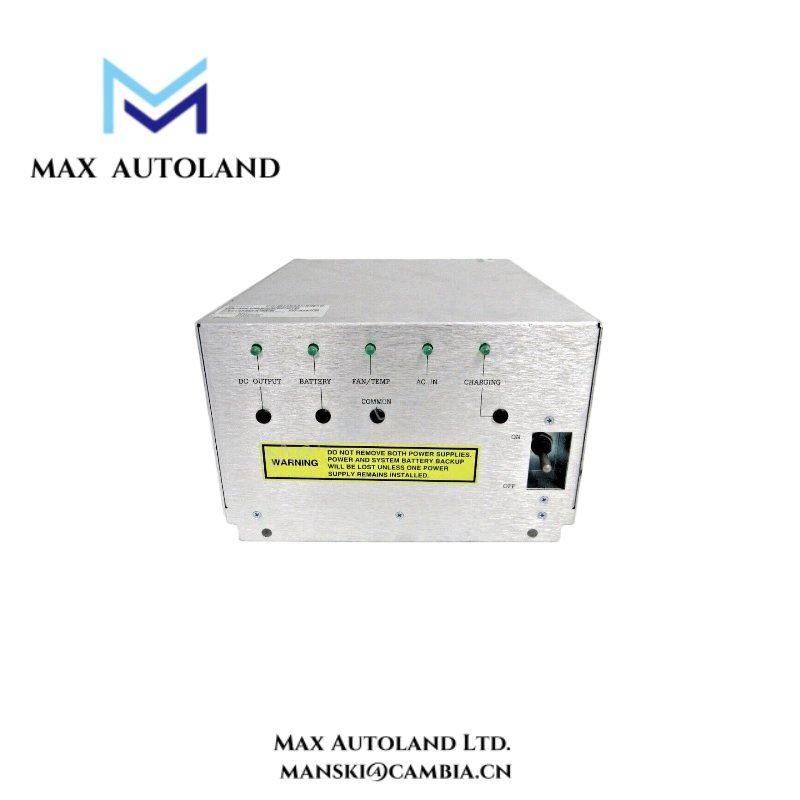

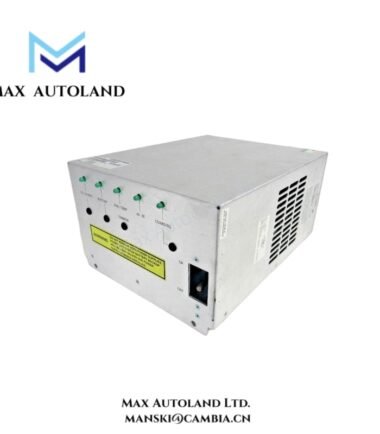

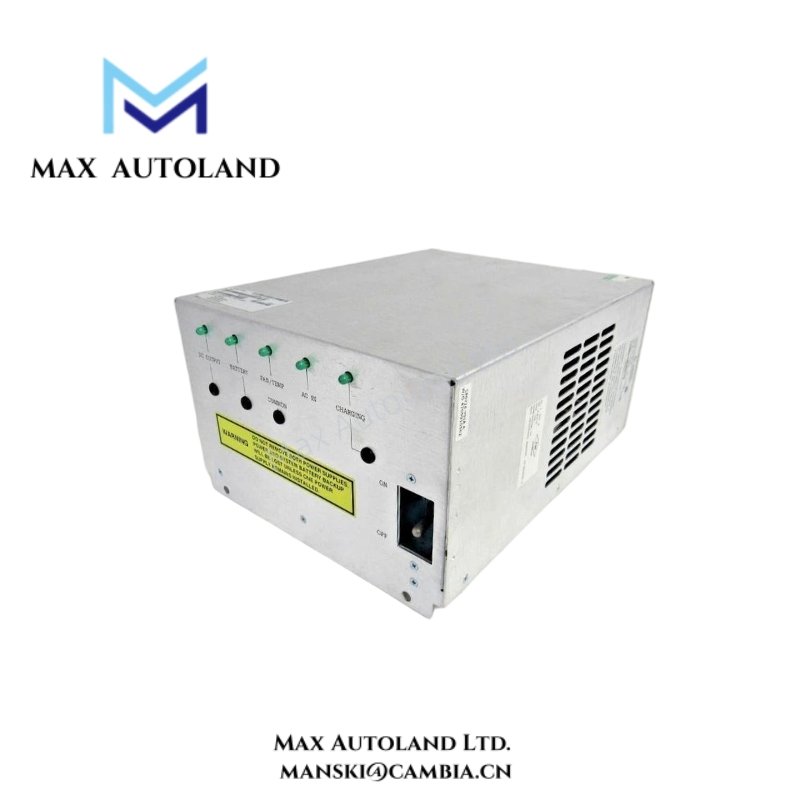

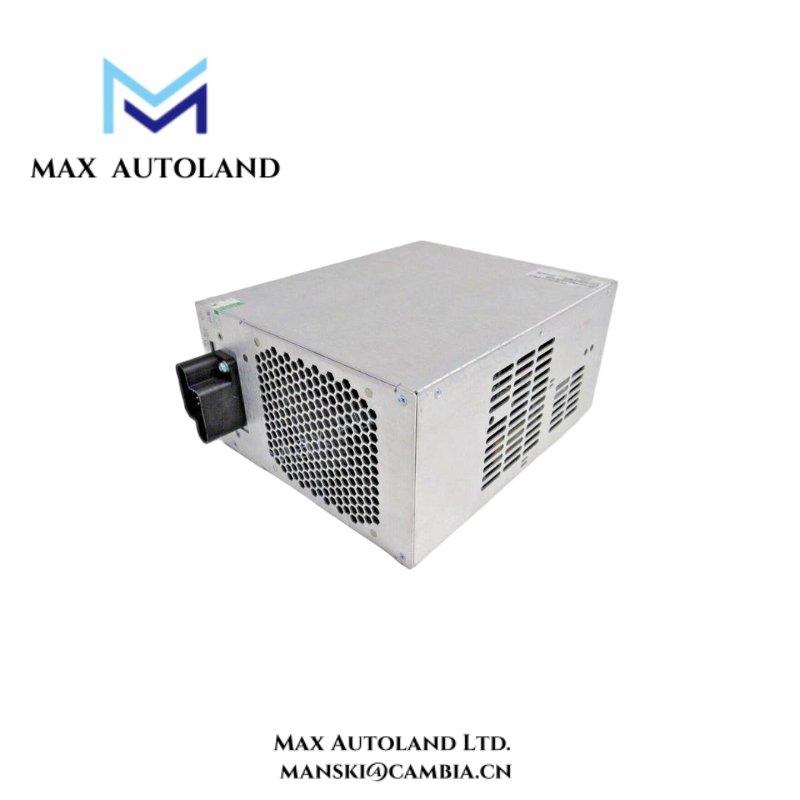

The Honeywell 51198947-100 is a high-reliability power supply module designed for Universal Control Network (UCN) systems. It delivers stable and consistent power to process managers, controllers, and peripheral devices. With robust construction and precision engineering, this module supports continuous industrial operations while minimizing downtime. Therefore, it is ideal for manufacturing, process automation, and mission-critical applications.
Specification
| Parameter | Specification |
|---|---|
| Model Number | 51198947-100 |
| Product Type | HPM Power Supply (Honeywell UCN systems) |
| Input Voltage | 85–264 VAC (AC mains) or 48 VDC (battery backup) |
| DC Output (AC Input) | 25.25 VDC at up to 10 A load |
| DC Output (Battery Input) | 24.25 VDC at up to 10 A load |
| Auxiliary Output | 6 VAC at 35 mA load (line-frequency sync) |
| Battery Charging Circuit | Integrated, supports 48 V battery charging when AC present |
| Parallel Operation | Supports multiple units in parallel for redundancy/load sharing |
| Operating Temperature Range | -20 °C to +55 °C |
| Output Derating Above +55 °C | Current derates linearly 0.5 A/°C up to +65 °C |
| Net Weight | Approx. 8.4 lbs (≈ 3.8 kg) |
| Dimensions (Approx.) | 263 × 58 × 28 mm |
| Compliance / Certification | CE‑compliant, meets industrial safety standards |
| Intended Use | AC input, AC/DC output power supply for Honeywell UCN PM cabinets |
FAQ
Q: Which Honeywell systems are compatible with 51198947-100?
A: It is compatible with Honeywell Universal Control Network (UCN) process managers and related modules.
Q: Can this module replace 51109684-100?
A: Yes. The 51198947-100 is equivalent to the 51109684-100, enabling straightforward replacement.
Q: Is the power supply suitable for harsh industrial conditions?
A: Yes. It is designed to withstand vibration, temperature variations, and typical industrial environmental stresses.
Q: What is the weight of this module?
A: The net weight is 8.4 lbs, allowing safe handling and installation in control racks.
Q: Does it support continuous operation in critical systems?
A: Yes. Its robust design ensures stable and reliable power delivery for continuous system operation.
